A-100SSB Small Supply/Bus

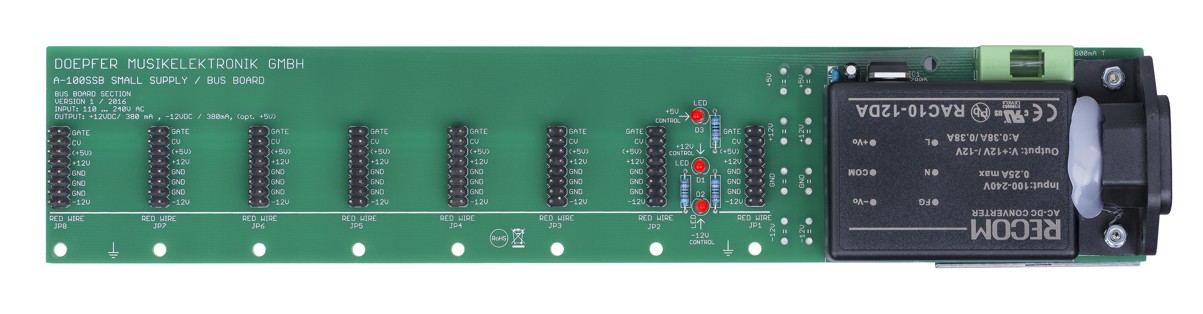

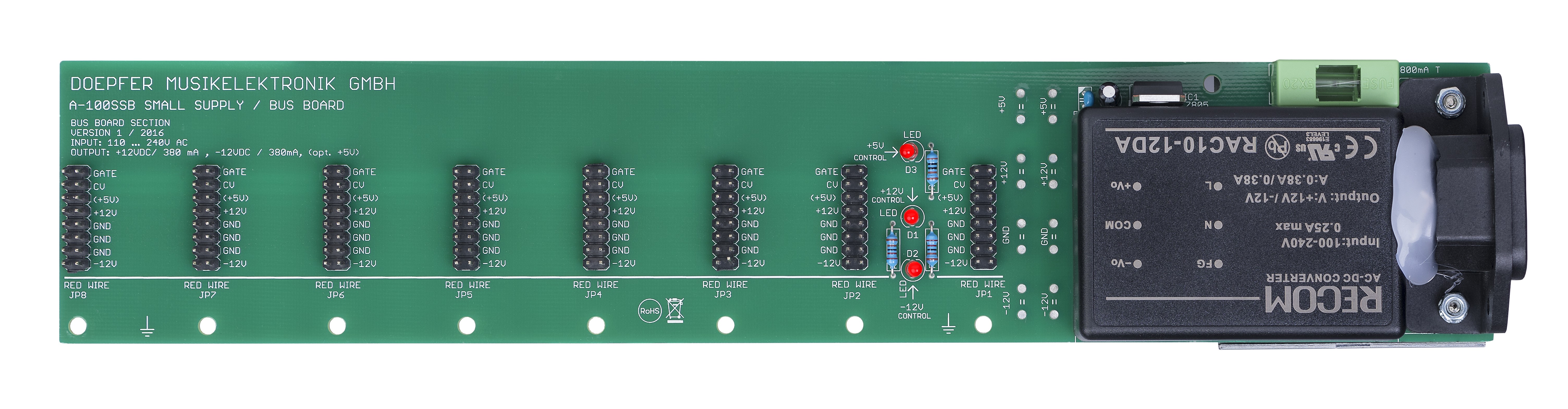

Version 1.1

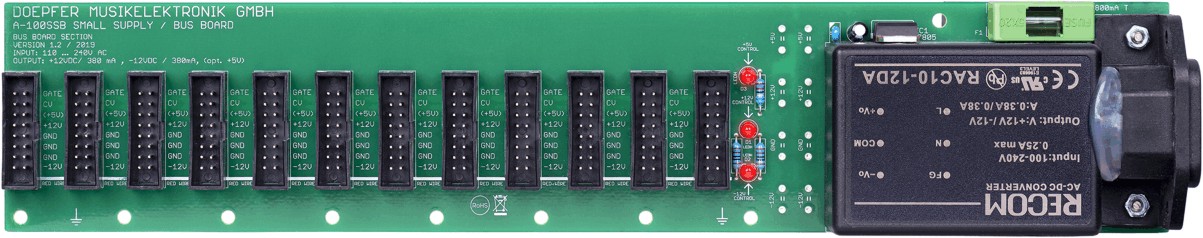

Version 1.2

A-100SSB ist eine Kombination aus Netzteil und Busplatine mit 8 bzw. 12 Steckplätzen für A-100-Module. Es ist für Eigenbau-Anwendungen gedacht, bei denen maximal 8 bzw. 12 Module mit einem Gesamtstromverbrauch bis zu 380 mA zum Einsatz kommen.

Hier die wichtigsten Eigenschaften im Überblick:

  • fertig aufgebautes und geprüftes Modul

  • Weitspannungseingang 100-240V AC / 50-60Hz

  • IEC-Netzeingang auf der Leiterplatte zum Anstecken eines passenden Netzkabels (das für das jeweilige Land passende Netzkabel muss vom Kunden selbst beschafft werden und ist nicht im Lieferumfang enthalten)

  • Sicherheits-Schutzabdeckung an der Unterseite (deckt alle Netzspannung führenden Elemente ab)

  • Netzsicherung auf der Leiterplatte

  • Schaltnetzteil mit +12V/380 mA und -12V/380mA zum Betrieb von A-100-Modulen bis maximal 380mA Stromaufnahme

  • Wichtiger Hinweis: die Lastregelung ist bei dem im A-100SSB verwendeten Netzteil leider nicht so gut wie bei den "großen" A-100-Netzteilen (A-100PSU2, A-100PSU3 und dem im DIY-Kit 1 verwendeten Netzteil). Daher sollten keine Module in Verbindung mit dem A-100SSB betrieben werden, die empfindlich gegen Spannungsschwankungen sind (das sind insbesondere VCOs), da bei gleichzeitiger Montage von Modulen mit Laständerung (das sind u.a. Module mit LEDs) Tonhöhenschwankungen die Folge sein können. Das A-100SSB sollte nur zum Betrieb von Modulen verwendet werden, die unempfindlich gegen leichte Versorgungsspannuns-Änderungen sind (z.B. ADSR oder LFO und die meisten klang-bearbeitenden Module wie VCFs oder VCAs).

  • zusätzlich stehen +5V mit maximal 100 mA zur Verfügung, wobei der Strom dann der +12V-Leitung entnommen wird (d.h. die Gesamtstromaufnahme bei +12V und +5V darf maximal 380mA betragen)

  • Busplatine:

    • Version 1.1 : 8 ungepolte Bus-Steckplätze (gefertigt ca. bis Herbst 2019)

    • Version 1.2 : 12 gepolte Bus-Steckplätze (gefertigt ca. seit Herbst 2019)

  • Leuchtdioden-Anzeigen für +12V, -12V und +5V

  • Abmessungen ca. 270 mm (Länge) x 55 mm (Breite) x 35 mm (Höhe)

  • 3mm - Montagelöcher zum Montieren der Einheit auf einer Rückwand oder Bodenplatte

  • Montagematerial zum Befestigen der Leiterplatte ist nicht enthalten (es können z.B. M3-Abstandsbolzen oder 3mm-Abstandsrollen mit passenden Schrauben hierzu verwendet werden.

  • Zum Einbau und Inbetriebnahme sind mechanische und elektrische Vorkenntnisse erforderlich. Die in der Anleitung beschriebenen Sicherheitsvorschriften sind inbedingt zu beachten !

  • Zur weiteren Information stehen die Anleitungeb im pdf-Format zur Verfügung:

Den aktuell gültigen Preis finden Sie in der Preisliste im Abschnitt A-100-Zubehör


A-100SSB is a combination of power supply and bus board with 8 or 12 connectors for A-100 modules. Planned for applications with up to 8 or 12 modules and a max. current of 380 mA. A-100SSB is available as ready built and tested unit.

These are the most important features:

  • ready built and tested unit

  • wide range mains voltage input 100-240V AC / 50-60 Hz

  • IEC inlet on board for the connection of a suitable mains cable (a suitable mains cable has to be purchased by the customer locally, it's not included with the A-100SSB)

  • switching supply with +12V/380 mA and -12V/380mA for the operation of A-100 modules up to 380 mA total supply current

  • Important note: the load regulation of the power supply used in the A-100SSB is not as good as the load regulation of the "big" A-100 power supplies (A-100PSU2, A-100PSU3 and the power supply of DIY kit #1). That's why we recommend not to use the A-100SSB with modules which are sensitive to supply voltage changes. In the first place VCOs are affected. If modules with changing loads (especially modules with LEDs) are installed together with VCOs pitch modulations may be the result. The A-100SSB should be used only with modules which are immune to slight supply voltage changes (typically control modules like ADSR, LFO, random and most of the sound processing modules like VCFs or VCAs).

  • in addition +5V with max. 100mA are available but the current is taken from the +12V line (i.e. the sum of the +12V current and the +5V current has to be less than 380mA)

  • safety cover at the bottom side (covers all elements that lead mains voltage)

  • on board fuse

  • bus board:

    • version 1.1 (until about September 2019): 8 nonpolarized bus connectors (unboxed pin headers)

    • version 1.2 (from about September 2019): 12 polarized bus connectors (boxed pin headers)

  • LED displays for +12V, -12V and +5V

  • Dimensions: about 270 mm (length) x 55 mm (width) x 35 mm (height)

  • several 3mm holes for mounting the unit on a rear panel or bottom plate

  • mounting material to fix the board on a suitable base or back panel is not included (e.g. M3 distance bolts or 3 mm distance roll with suitable screws may be used)

  • mechanical and electrical skills are required to install and run the A-100SSB ! It's essential to pay attention to the safety notes mentioned in the user's manual !

  • For additional information the user's manuals are available as pdf files:

The price can be found in the price list in the section A-100 accessories


Preise / Prices:
Version 1.1.: Euro 75.00
Version 1.2.: Euro 85.00
The price in US$ depends upon the exchange rate between Euro and US$ at the payment day.
