A-138f Dual Three-Way Crossfader
Slim Line Series

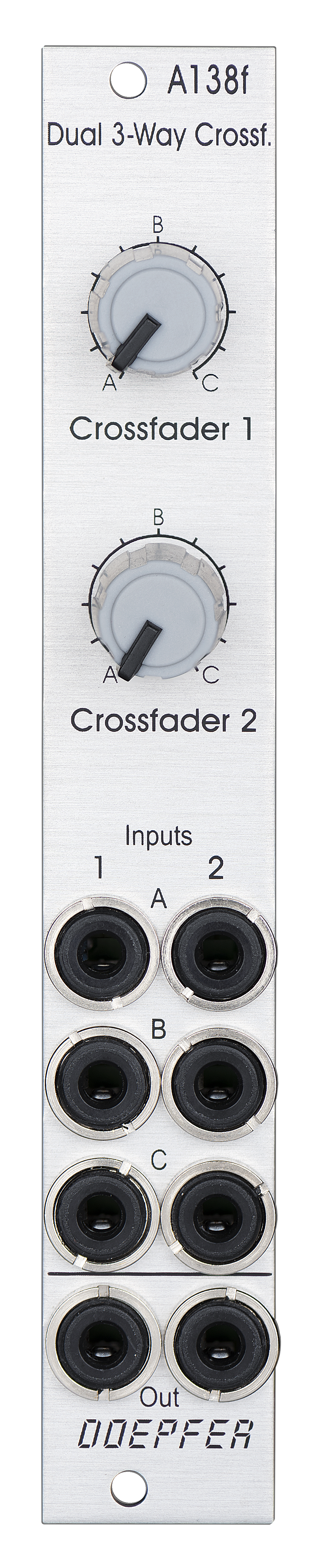

click to enlarge



A-138f ist ein zweifaches Crossfader-Modul mit jeweils 3 Eingängen und einem Ausgang. Drei verschiedene Signale können an die Eingänge A, B und C angeschlossen werden. Je nach Stellung des zugehörigen Reglers erscheint das Signal A (Linksanschlag des Reglers), B (Mittelstellung) oder C (Rechtsanschlag) am Ausgang. In den Stellungen dazwischen erscheint eine Mischung aus 2 Signalen am Ausgang: Mischung aus den Signalen A und B zwischen Linksanschlag und Mittelstellung,  Mischung aus den Signalen B und C zwischen Mittelstellung und Rechtsanschlag.
Das Modul ist gleichspannungsgekoppelt und kann daher sowohl für Audiosignale wie auch Steuersignale verwendet werden.

Anwendungsbeispiele:

  • Umblenden zwischen verschiedenen VCO-Kurvenformen (z.B. Sägezahn - Rechteck - Dreieck)
  • Umblenden zwischen verschiedenen Filtertypen bei Multimode-Filtern (z.B. Tiefpass - Notch - Hochpass - Bandpass)
  • Umblenden zwischen verschiedenen Steuersignalen (z.B. Hüllkurve - LFO - Random)

Module A-138f contains two identical crossfaders with three inputs and one output each.  Three different signals are connected to the inputs A, B and C. In the ccw position of the corresponding control only signal A appears at the output. Between ccw and center position a mix of the signals A and B appears at the output. In the center position only signal B appears at the output.  Between center and cw position a mix of signals B and C appears at the output. In the cw position only signal C appears at the output.
The module is DC coupled and can be used for both audio and control voltage processing.

Application examples:

  • Crossfading of VCO waveforms (e.g. saw - rectangle - triangle)
  • Crossfading of VCF outputs of multimode filters (e.g. lowpass - notch - highpass - bandpass)
  • Crossfading of control voltage signals (e.g. envelope - LFO - random)

Breite/Width: 4 TE / 4 HP / 20.0 mm
Tiefe/Depth: 30 mm (gemessen ab der Rückseite der Frontplatte / measured from the rear side of the front panel)
Strombedarf/Current: +10mA (+12V) / -10mA (-12V)
