A-105 24dB SSM Low Pass Filter
nicht mehr lieferbar / no longer available
Ersatztyp / Replacement A-105-2


click to enlarge

A105

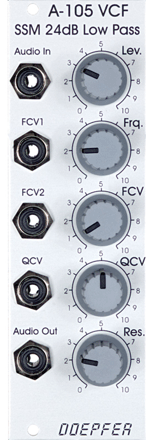

Das Modul A-105 ist ein weiteres spannungsgesteuertes 24dB Tiefpaßfilter, das sehr ähnlich dem A-122 aufgebaut ist. Im Gegensatz zum A-122, das mit einem Curtis Chip aufgebaut ist, basiert das Modul A-105 auf dem SSM2044-Chip. Dieses Filter wurde u.a. in folgenden Geräten eingesetzt: Korg Polysix, Korg Mono/Poly, Fairlight II, PPG Wave 2.2 und 2.3, Emu SP-1200, Siel DK600, Siel Opera 6. In der ersten Prophets kam der Vorgänger des 2044 (SSM2040) mit sehr ähnlichem Klangverhalten zum Einsatz. Die Besonderheit des 4-Pol-Tiefpasses SSM2044 ist das patentierte sog. "true open loop design", das einen besonders "fetten" Sound erzeugt. Ausserdem ist die Resonanz spannungsgesteuert und der Audio-Eingang des Filters ist so empfindlich, dass Übersteuerungen möglich sind. Hinsichtlich der Funktionen und der Bedienungselemente sowie der Ein/Ausgänge ist das neue Filtermodul identisch zu dem 24dB-Tiefpassfilter A-122, das mit einem CEM-IC aufgebaut ist. Der Klang, das Resonanzverhalten und das Übersteuerungsverhalten des A-105 weichen jedoch deutlich von dem des A-122 ab.

Die Anleitung des Moduls ist identisch zu der von A-122.

Da das im Modul verwendete Spezial-IC SSM2044 nicht mehr zu akzeptablen Preisen zu beschaffen ist, wurde die Produktion des Moduls eingestellt. Das Nachfolge-Modul ist der A-105-2.


Module A-105 is another voltage-controlled low-pass filter with 24dB/octave slope. The A-105 is very similar to the A-122 that is made with a CEM chip. But in contrast to the A-122 the A-105 is made with the legendary SSM filter chip SSM2044. This chip was used e.g. in these synthesizers: Korg Polysix, Korg Mono/Poly, Fairlight II, PPG Wave 2.2 und 2.3, Emu SP-1200, Siel DK600, Siel Opera 6. The first Prophets used the SSM2040 - the precedessor of the 2044 - that generates a very similar sound. The special feature of the 4 pole low pass SSM2044 is the patented so-called "true open loop design that delivers a characteristic fat sound not available from other devices" (extract from SSM2044 data sheet). The module will feature voltage controlled resonance and a sensitve audio input to obtain distortion - if desired. Regarding to the functions, controls and in/outputs the module is identical to the 24dB low pass filter A-122 that is built around a CEM chip. But the sound, the resonance behaviour and the distortion behaviour are completely different for both modules.

The user's manual of the A-105 is identical to the A-122.

As the special circuit SSM2044 used in the module is no longer available at acceptable prices the module has been discontinued. Module A-105-2 is the replacement.


Klangbeispiel unseres Kunden Andreas Krebs / sound example by our customer Andreas Krebs: http://blog.andreaskrebs.de/2010/04/30/doepfer-a-105-ssm-24db-lowpass-example/

Breite/Width: 8TE / 8HP / 40.3 mm
Tiefe/Depth: 45 mm (gemessen ab der Rückseite der Frontplatte / measured from the rear side of the front panel)
Strombedarf/Current:
+30mA (+12V) / -20mA (-12V)

Preis/Price: Euro 120.00
nicht mehr lieferbar / no longer available
The price in US$ depends upon the exchange rate between Euro and US$ at the payment day.
