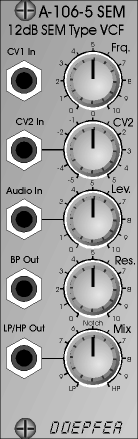

A-106-5 12dB SEM Filter


click to enlarge

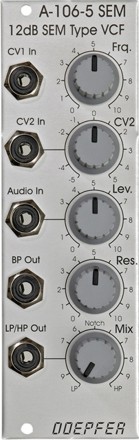

Standard Edition Special Edition





Das Modul A-106-5 ist ein 12dB-Multimode-Filter, in dem die Schaltung des SEM-Moduls zum Einsatz kommt. Das Filter verfügt über einen Tiefpass, Bandpass und Hochpass, wobei Tief- und Hochpass ein Mischausgang zur Verfügung steht. Mittels eines Drehreglers kann dieser Ausgang stufenlos zwischen Tiefpass über Bandsperre (Notch) zu Hochpass umgeblendet werden. Der Bandpass steht als separater Ausgang zur Verfügung. Im Gegensatz zu den meisten anderen Filtern des A-100 ermöglicht der A-124 keine Selbstoszillation. Das Modul kann mit den üblichen Signalpegeln des A-100 (z.B. VCO) übersteuert werden, wobei etwa ab der Mittelstellung des Level-Reglers die Verzerrungen einsetzen.

Eingänge: Audio In, CV2 In mit Polarizer, CV1 In ohne Abschwächer
Ausgänge: Bandpass Out, Mix-Out
Bedienungselemente: Audio-Abschwächer, CV2-Polarizer, Frequenz, Resonanz, LP/HP-Mix

Von den Funktionen her ist das Modul sehr ähnlich zum Wasp-Filter A-124. Der Klang der beiden Filter ist jedoch sehr unterschiedlich. Es wird für das Modul A-106-5 keine eigene Anleitung geben, sondern eine kombinierte Anleitung für A-106-5 und A-124. Der einzige funktionelle Unterschied ist die Anordnung der Bedienungselemente und die Funktion des Reglers CV2 (bei A-124 normaler Abschwächer, bei A-106-5 Polarizer)

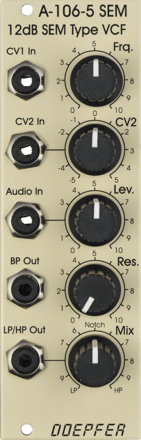

Ab März 2016 ist eine Sonderedition des Moduls mit cremefarbener Frontplatte und schwarzen Drehknöpfen erhältlich (Bestellnummer A-106-5SE).




Module A-106-5 is a 12dB multimode filter that is based on the filter circuit of the Oberheim SEM module.The filter is equipped with a band pass output and a combined low/notch/high pass output. For this output a control knob defines the relation between low and high pass signal. If both signals appear at the same level (i.e. middle position of the Mix knob) one obtains a notch filter. Otherwise the low or high pass signal predominates. The module does not feature self oscillation in contrast to most of the other filters of the A-100 system. The module generates a distorted audio signal if the level control is set to about 50% (i.e. center position) or more with A-100 standard signals like VCOs.

Inputs: Audio In, CV1 In without attenuator, CV2 In with Polarizer
Outputs: Bandpass Out, Low/Highpass Mix-Out
Controls: Audio Attenuator, CV2 Polarizer, Frequency, Resonance, LP/HP Mix

The function and operation of this module is very similar to the Wasp filter module A-124. But the sound of both filters is very different ! We will publish no separate user's manual for the A-106-5 but a combined manual for both A-106-5 and A-124. The only functional difference is the position of the sockets and controls, and the function of the controls CV2 (A-124: normal attenuator, A-106-5: polarizer)

From March 2016 a special edition with creme-colored front panel and black knobs is available (order no. A-106-5SE).


Klangbeispiel unseres Kunden Andreas Krebs / sound example by our customer Andreas Krebs:
http://blog.andreaskrebs.de/2010/05/08/doepfer-a-106-5-sem-filter-example/

Breite/Width: 8TE / 8HP / 40.3 mm
Tiefe/Depth: 55 mm (gemessen ab der Rückseite der Frontplatte / measured from the rear side of the front panel)
Strombedarf/Current: +30mA (+12V) / -20mA (-12V)

Preise/Prices:
Standard Edition: Euro 95.00 Euro
Special Edition: Euro 100.00
The price in US$ depends upon the exchange rate between Euro and US$ at the payment day.
