A-127 VC Triple Resonance Filter
A-127BOM Breakout Module

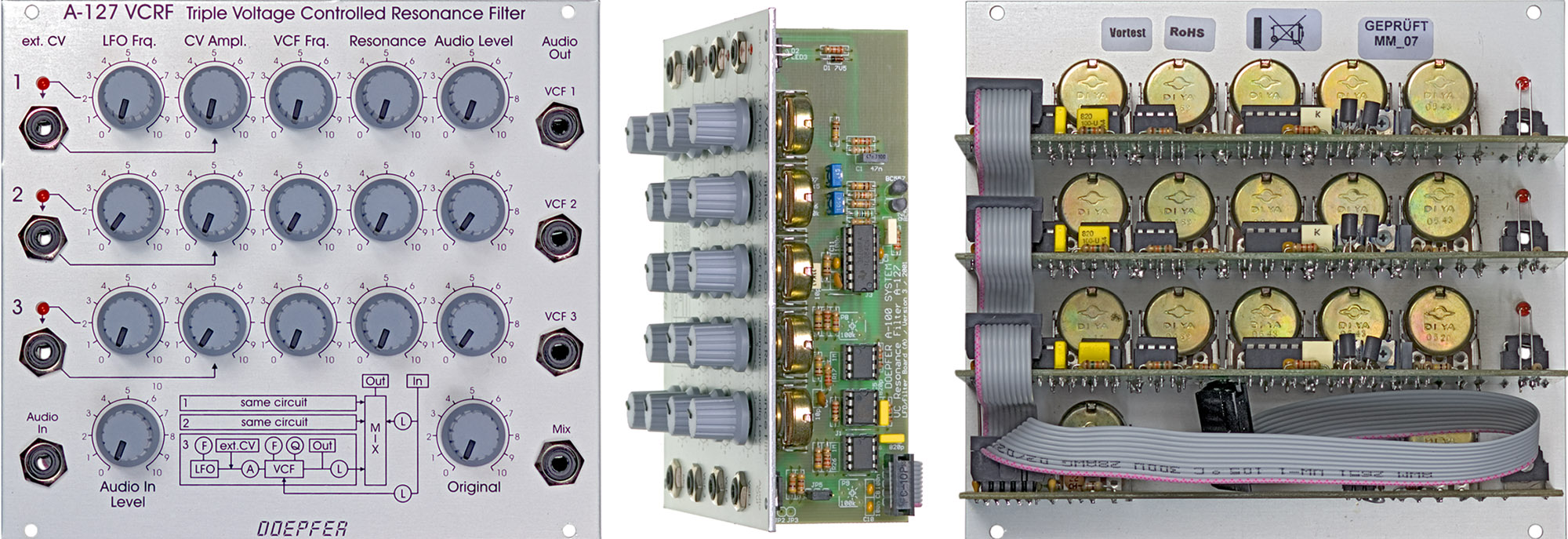

A-127 Hauptmodul / A-127 Main Module

click to enlarge

A-127 Breakout Module
Produktion eingestellt / no longer available


click to enlarge


Das Modul A-127 ist eine dreifache Resonanzfilter-Einheit. Es besteht aus 3 getrennten Bandpässen, bei denen die Filterfrequenz spannungssteuerbar ist. Jeder Bandpass verfügt zur Filtermodulation über einen eigenen LFO (Kurvenform Dreieck, LED-Anzeige), bei dem Frequenz und Amplitude einstellbar sind. Statt des internen LFO-Signals kann für jeden Filter getrennt auch eine externe Steuerspannung über eine Schaltbuchse zugeführt werden (z.B. vom MIDI-Interface A-191, vom Sequencer A-155, von der Zufalls-Spannungsquelle A-118, vom Theremin A-178 etc.). In diesem Fall wirkt nur der Abschwächungsregler der LFO-Einheit.
Für jeden der 3 Filter stehen folgende Bedien-Elemente zur Verfügung: LFO-Frequenz, LFO/ext.CV Amplitude, Filter-Frequenz, Filterresonanz und Filter-Amplitude. Neben dem gemeinsamen Mischausgang für alle 3 Filter, steht auch für jeden Filter ein eigener Audio-Ausgang zur Verfügung. Das Originalsignal kann dem Filter-Mischsignal über einen eigenen Regler stufenlos zugemischt werden.
Alle 3 Filter besitzen einen gemeinsamen Audio-Eingang mit Abschwächer. Die Filtereingänge sind sehr empfindlich, so daß auch Übersteuerungen der Filter mit normalen A-100-Audio-Pegeln möglich sind.
Der Frequenzsteuerbereich der Bandpassfilter beträgt ca. 40Hz...6kHz, der Frequenzumfang der LFOs ca. 0.02Hz...20Hz (entspricht Periodendauern von ca. 1 Minute ... 1/20 Sekunde).
Alternativ kann jeder der 3 Bandpässe auch als 12dB-Tiefpass (mit Resonanz-Regelung) betrieben werden. Hierzu muss eine Steckbrücke auf jeder der 3 Filterplatinen umgesetzt werden (u.U. auch nur einem oder 2 der Filter). In diesem Fall kann jedoch nicht mehr von einem Resonanzfilter-Modul sondern von einem "3-fach-Tiefpaß-Modul" gesprochen werden.

Das Resonanzfilter-Modul kann sehr flexibel zur Klangbearbeitung eingesetzt werden. Hier einige Anwendungsbeispiele:

  • Nachbildung von Resonanzen (feststehende Frequenzen)
  • 3-fache per externen CV's steuerbare oder intern ablaufende Filtermodulationen für sehr komplexe Filterverläufe
  • Vocoder- und Sprach-ähnliche Effekte mit gezielten externen CV-Einspeisungen (z.B. vom Sequenzer A-155 oder MIDI-CV-Interface A-191) für die 3 Filterfrequenzen
  • MIDI-gesteuerte Filter-Einstellungen und Abläufe (in Verbindung mit A-191)
  • zufällige Filterverläufe mit Zufallsspannungen (z.B. vom A-118)
  • dreifache S&H-Filtereffekte (z.B. in Kombination mit A-148)

Die deutsche Bedienungsanleitung ist als PDF-Datei auf unserer Website verfügbar: A127_anl.pdf

Module A-127 is a triple resonance filter unit. It contains three separate voltage controlled band pass filters. Each filter has it's own LFO (triangle waveform) with LED display and adjustable frequency and amplitude. Instead of the internal LFO an external control voltage may be used to control the filter frequency. In this case the external voltage is fed into the external CV jack (with integrated switch to turn off the LFO signal) and the amplitude control of the LFO affects the level of the external CV signal. Each filter is equipped with the following controls: LFO frequency, LFO/external CV amplitude, filter frequency, filter resonance and filter amplitude. In addition to the mix output for all three filters each filter has a separate audio output. The original audio signal can be added to the triple filter mix signal with a separate control. All of the 3 filters share a common audio input with attenuator. The filter audio inputs are very sensitive so that distortion may intentionally be used to create new sounds - if desired.
The frequency control range of the bandpass filters is about 40Hz...6kHz, the frequency range of the LFO's is about 0.02Hz...20Hz (= 1 min ... 1/20 sec per cycle).
Each of the three filters can used also as a 12dB low pass (with resonance control) instead of band pass. For this a jumper has to be changed on the filter board in question. In this case the module can be called no longer "resonance filter" but "triple low pass filter". It is also possible to modify only one or two of the filters to low pass.

The A-127 is a versatile module for sound modification. Here are some application samples:

  • reproduction of resonances (fixed filter frequencies, resonances and amplitudes)
  • triple internal or external CV controlled sweeps for very complex filterings
  • filter effects similiar to vocoder and/or synthetic speech using specific external CV's to control the three filter frequencies (e.g. coming from the Sequenzer A-155 or MIDI-CV Interface A-191)
  • MIDI controlled filter settings or sweeps (e.g. in combination with A-191)
  • random filter sweeps using random voltages (e.g. from A-118)
  • triple S&H filter effects (in combination with S&H A-148)

For more detailed information please look at the English user's manual A127_man.pdf


Zusätzlich ein Breakout-Modul A-127BOM zum Hauptmodul A-127 erhältlich. Diese Erweiterung ergänzt das Modul A-127 um folgende Funktionen:
  • Notch-Filter für jede Einheit
  • getrennte Ausgänge für Tiefpass, Hochpass, Bandpass und Notch für jede der 3 Filter-Einheiten
  • zusätzlicher Audio-Eingang mit Abschwächer für jede der 3 Filter-Einheiten

Das Erweiterungsmodul ermöglicht es alle 3 Filter-Einheiten des Moduls A-127 völlig getrennt zu nutzen. Außerdem können die Filter parallel oder in Serie geschaltet werden. Insbesondere die Serienschaltung von 3 Notch-Filtern kann für sehr komplexe, Phasing-artige Strukturen verwendet werden. Bei Parallel-Schaltung kann der bereits am A-127 vorhandene Summenausgang oder ein externer Mixer benutzt werden. Bei Serienschaltung werden die Filter über das Erweiterungsmodul in der gewünschten Reihenfolge entsprechend gepatcht. Für den internen Mix des Hauptmoduls kann das gewünschte Filter mit Hilfe eines Jumpers zwischen den 4 Filtertypen gewählt werden (Standard-Funktion: Bandpass).

Hinweis: Das Breakout-Modul kann nur in Verbindung der neuen Version des A-127 ohne weiteres genutzt werden (Leiterplattenaufdruck "Version 4"), da nur hier der benötigte Erweiterungssstecker zur Verfügung steht. Bei älteren Versionen (Versionen 1, 2 und 3) sind für die Verbindung zwischen Breakout und Hauptmodul Lötarbeiten erforderlich (manuelles Anlöten von 4 Anschlussdrähten pro Filter-Einheit an die entsprechenden Lötpunkte).

Die Anleitung zum Verbinden von A-127BOM mit dem A-127 Hauptmodul finden Sie hier: A127BOM.pdf. In diesem Dokument ist auch der Anschluss des A-127BOM an die älteren Versionen beschrieben.

Hinweis: Die Beschriftung der Frontplatte der ersten Produktionsserie ist fehlerhaft ! Die Ausgänge von Hochpass und Bandpass sind vertauscht ! Falls Sie diesen Nachteil nicht akzeptieren können, bitten wir Sie auf die 2. Produktionsserie zu warten (ca. Mitte 2015). Der korrekte Druck ist BP rechts von LP und HP unterhalb von LP.

Produktion eingestellt

In addition a breakout module A-127BOM is available. This expansion module offers the following additional functions:
  • notch filter for each sub-unit
  • separate outputs for lowpass, highpass, bandpass and notch for each sub-unit
  • separate audio input with attenuator for each sub-unit

The breakout module allows the separate use of each of the three A-127 filters. In addition the filters can be patched parallel or serial. Especially the serial connection of three notches generates very complex phasing-like structures. For parallel filter connection the existing mixer of the main module may be used or an external mixer. For serial connection the filters are patched in the desired sequence at the breakout module. A jumper is used to define the filter type for each sub-unit for the mix unit of the main module.

Remark: The breakout module can be used without modification only in combination with the new version of the A-127 (pcb printing "Version 4"). Only the new version has the expansion connector available, that is required to connect the breakout module without soldering. It's also possible to combine the breakout module with older versions of the A-127 (versions 1, 2 and 3) but in this case soldering is required to connect the breakout module to the main module (soldering 4 wires to each filter unit). The instructions how to connect A-127BOM and A-127 main module are available here: A127BOM.pdf. This document also describes how to wire older versions of A-127 to the A-127BOM.

Note: The front panel printing of the first production series is faulty. The highpass and bandpass are mixed up. If you cannot accept this drawback we ask you to wait for the second production series (about middle of 2015). The correct printing is BP right from LP and HP below LP.

no longer available


A-127 online tutorials by Raul Pena:

A-127 Introduction: http://www.youtube.com/watch?v=E1qLu8oqhvg
A-127 Modulation: http://www.youtube.com/watch?v=gkMVO5TsPSA
A-127 More Modulation: http://www.youtube.com/watch?v=aJcfY4eCIQQ
A-127 Audio Rate Modulation: http://www.youtube.com/watch?v=Nv7M03m4QDU


Erweiterungsvorschlag für Bandpass/Tiefpass/Hochpass-Umschalter / Suggestion for additional switches for bandpass/lowpass/highpass selection:
http://patchpierre.blogspot.com/search/label/A-127

Klangbeispiel unseres Kunden Andreas Krebs / sound example by our customer Andreas Krebs:
http://blog.andreaskrebs.de/2010/05/15/doepfer-a-127-triple-resonance-filter-example/

Breite: 28 TE / 141.9 mm
Tiefe: 55 mm (gemessen von der Rückseite der Frontplatte)
Strombedarf:
A-127: +100mA (+12V), -60mA (-12V)
A-127BOM: +20mA (+12V), -20mA (-12V)
Width: 28 HP / 141.9 mm
Depth: 55 mm (measured from the rear side of the front panel)
Currents:
A-127: + 100mA (+12V), -60mA (-12V)
A-127BOM: +20mA (+12V), -20mA (-12V)

Preis A-127 Hauptmodul / Price A-127 Main Module: Euro 220.00
Preis A-127BOM Erweiterungsmodul / Price A-127BOM Breakout Module: Euro 80.00
Produktion eingestellt / no longer available
The price in US$ depends upon the exchange rate between Euro and US$ at the payment day.
