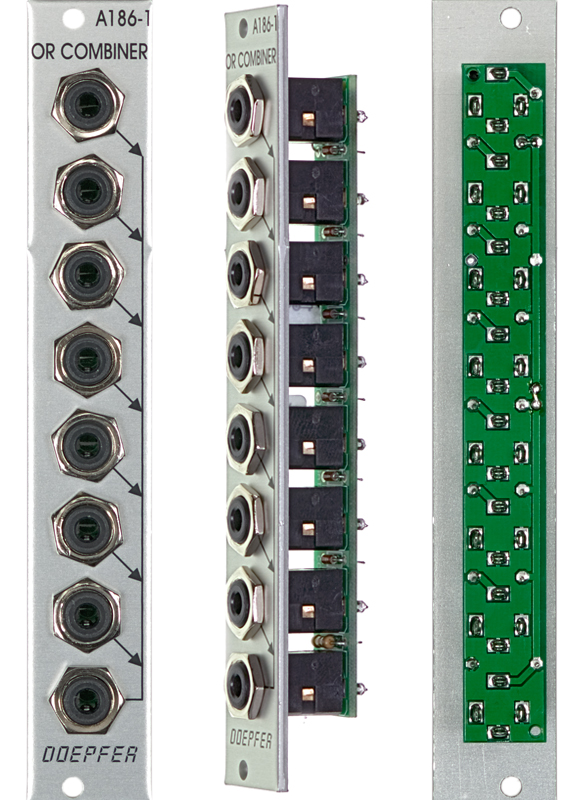

A-186 Gate/Trigger Combiner

Module A-186 is a very simple, passive unit that combines up to 7 gate, trigger or analog signals by or-wiring.

Function:

• if all seven inputs are low or open the output is low

• if one or more of the seven inputs is "high" the output turns high

Applications:

• combination ("or"-wiring) of gate and/or trigger signals (e.g. from LFOs, sequencers, keyboards, Midi-to-CV interfaces, ribbon controller, theremin, trigger delays or any other source of gate/trigger signals

• Maximum extractor for analog voltages: at the output the maximum voltage (minus ~ 0.7V because of the diodes) appears, similar function as the maximum output of the A-172 Maximum/Minimum Selector module, e.g. for simple waveshaping

Breite/Width: 4 TE / 4 HP / 20.0 mm
Tiefe/Depth: 20 mm (gemessen ab der Rückseite der Frontplatte / measured from the rear side of the front panel)
Strombedarf/Current: 0 mA (passive module without power supply)
