A-103 18dB Low Pass


click to enlarge
A103

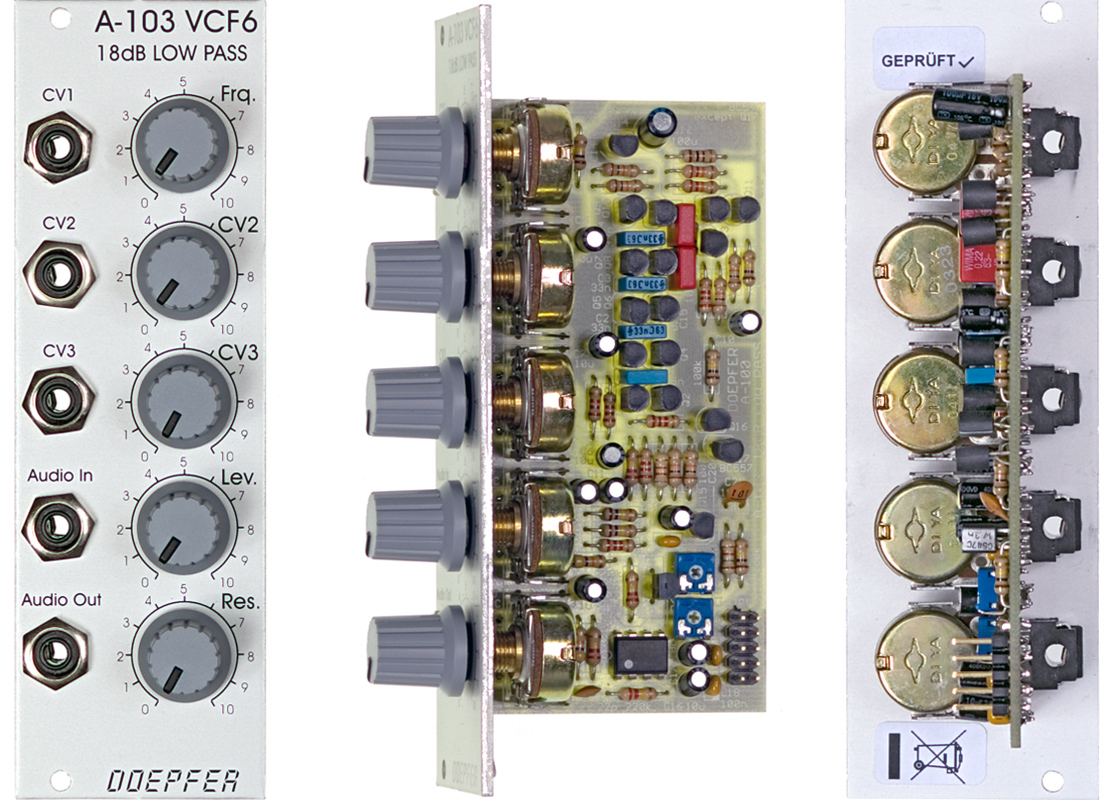

Das Modul A-103 ist ein spannungsgesteuertes Tiefpaßfilter mit 18dB/Oktave Flankensteilheit. Die Schaltung beruht auf einer modifizierten Transistor-Kaskade (Moog-Kaskade) und entspricht dem Tiefpassfilter, das in der TB303 zum Einsatz kommt.

Ansonsten entspricht das A-103-Filter dem A-120, d.h.:
manuelle Einstellung der Filterfrequenz mit dem Frq-Regler
3 CV Eingänge (CV1, CV2, CV3), davon 2 mit Abschwächer (CV2, CV3)
Eingangspegelregler
Resonanz manuell einstellbar bis zur Selbstoszillation

Die deutsche Bedienungsanleitung zum A-103 ist als PDF-Datei A1023_Anl.pdf (kombinierte Anleitung für A-102 und A-103) auf unserer Website verfügbar.

Module A-103 is a voltage controlled low pass filter with 18dB/octave slope. The circuit is based on a modified transistor ladder (Moog ladder) and is a reproduction of the legendary TB303 filter.

As for the rest the A-103 is identical to the A-120 Moog low pass filter (same controls, inputs/outputs) only the filter sound is different.

The English user's manual is available on our web site as pdf file: A103_man.pdf.


Breite/Width: 8TE / 8HP / 40.3 mm
Tiefe/Depth: 55 mm (gemessen ab der Rückseite der Frontplatte / measured from the rear side of the front panel)
Strombedarf/Current: +30mA (+12V) / -10mA (-12V)

Preis/Price: 100.00 Euro
The price in US$ depends upon the exchange rate between Euro and US$ at the payment day.
