A-105-2 24dB
SSI Low Pass
Filter
|
|
click
to enlarge
|
click
to enlarge
|
|
|

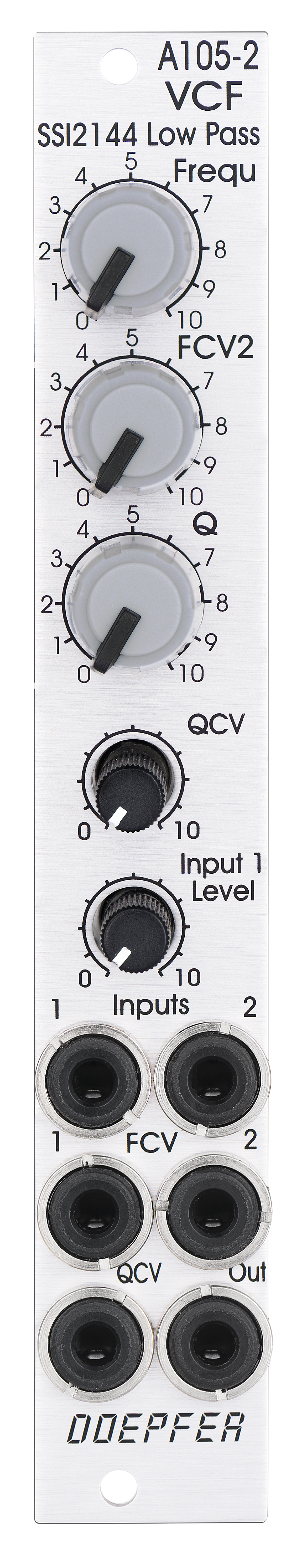

Standard Edition
|

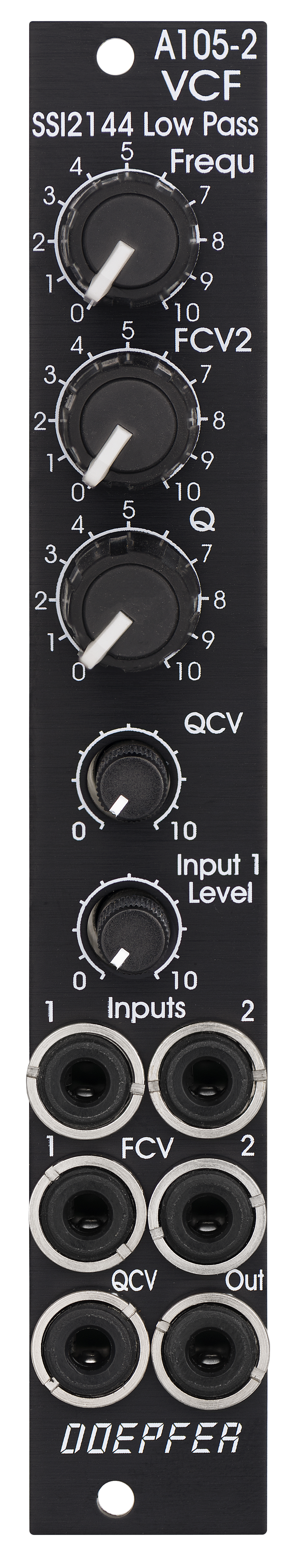

Vintage Edition
|
|
|
Das Modul A-105-2 ist ein spannungsgesteuertes
24db-Tiefpassfilter und der Nachfolger des Moduls A-105,
dessen Produktion auf Grund des nicht mehr erhältlichen Filterbausteins SSM2044
eingestellt werden musste. Beim A-105-2 kommt statt des SSM2044 der
Nachfolge-Typ SSI2144 zum Einsatz. Von den Funktionen her sind beide Module nahezu identisch. Der
wichtigste Unterschied ist die deutlich schmälere Frontplatte beim A-105-2 (4TE
statt 8TE) und die damit verbundenen Änderungen bei der Anordnung der Bedienungselemente. Zusätzlich
ist der A105-2 mit einem zweiten Audio-Eingang ausgestattet.
Das Modul verfügt über folgende Bedienelemente
und Ein/Ausgänge:
-
Regler
Frequ: manuelle Einstellung
der Frequenz
-
Regler
FCV2: Abschwächer für die am FCV2-Eingang anliegende Steuerspannung für
die Frequenz
-
Regler
Q: manuelle Einstellung
der Resonanz
-
Regler
QCV:
Abschwächer für die am QCV-Eingang anliegende Steuerspannung für die
Resonanz
-
Regler
Input 1 Level:
Abschwächer für das am Audio-Eingang 1 (Input 1) anliegende Signal
-
Buchse
Input 1: Audio-Eingang 1 (mit Abschwächer)
-
Buchse
Input 2: Audio-Eingang 2 (ohne Abschwächer)
-
Buchse
FCV1: Steuerspannungs-Eingang 1 für die Frequenz (ohne Abschwächer, ca.
1V/Oktave-Empfindlichkeit)
-
Buchse
FCV2: Steuerspannungs-Eingang 2 für die Frequenz (mit Abschwächer)
-
Buchse
QCV: Steuerspannungs-Eingang für die Resonanz (mit Abschwächer)
-
Buchse
Out: Audio-Ausgang
Technische
Hinweise:
-
Frequenzbereich
ca. 15 Hz bis 15 kHz
-
Resonanz
bis zur Selbstoszillation möglich
-
Maximale
Eingangsspannung an Audio-Eingang 2 ohne Verzerrungen: ca. 15Vss
-
Maximale
Ausgangsspannung ohne Verzerrungen: ca. 15Vss
-
Die
Signale an beiden Eingängen werden gemischt, bevor sie das Filter
durchlaufen. Das erspart einen externen Mixer bei kleineren Setups.
|
|
Module A-105-2 is a voltage controlled low pass filter with
24dB/octave slope. It is the successor of the A-105
which had to be discontinued because the obsolete SSM2044 filter circuit. The
A-105-2 is based on the SSI2144 which is in turn the successor circuit of the
SSM2044. The features of both modules are nearly the same. The main difference
is the clearly reduced front panel width of the A-105-2 (4HP instead of 8HP) and
the associated changes of the controls and sockets positions. In addition the
A-105-2 is equipped with 2 audio inputs. The module has these controls and
in/outputs available:
-
Control
Frequ: manual frequency control
-
Control
FCV2: attenuator for the frequency control voltage applied to socket FCV2
-
Control
Q: manual resonance control
-
Control
QCV: attenuator for the resonance control voltage applied to socket QCV
-
Control
Input 1 Level: attenuator for the audio input signal applied to socket Input
1
-
Socket
Input 1: audio input 1 (with attenuator)
-
Socket
Input 2: audio input 2 (without attenuator)
-
Socket
FCV1: frequency control voltage 1 (without
attenuator, about 1V/oct scale)
-
Socket
FCV2: frequency control voltage 2 (with attenuator)
-
Socket
QCV: resonance control voltage (with attenuator)
-
Socket
Out: audio output
Technical
notes:
-
Frequency
range: about 15Hz ... 15 kHz
-
Resonance
up to self oscillation
-
Max.
input voltage at Input 2 without clipping/distortion: about 15Vpp
-
Max.
output voltage without clipping/distortion: about 15Vpp
-
The
signals of both inputs are mixed before they are processed by the filter.
This saves an external mixer for small setups.
|
|
Breite/Width: 4 TE / 4 HP / 20.0 mm
Tiefe/Depth: 45 mm (gemessen ab der Rückseite der Frontplatte / measured
from the rear side of the front panel)
Strombedarf/Current: +20 mA (+12V) / -20 mA
(-12V)
|
|
Preise
/ Prices:
Standard Version
: Euro 120.00
Vintage
Edition : Euro 130.00
The price in US$
depends upon the exchange rate between Euro and US$ at the payment day.
|
