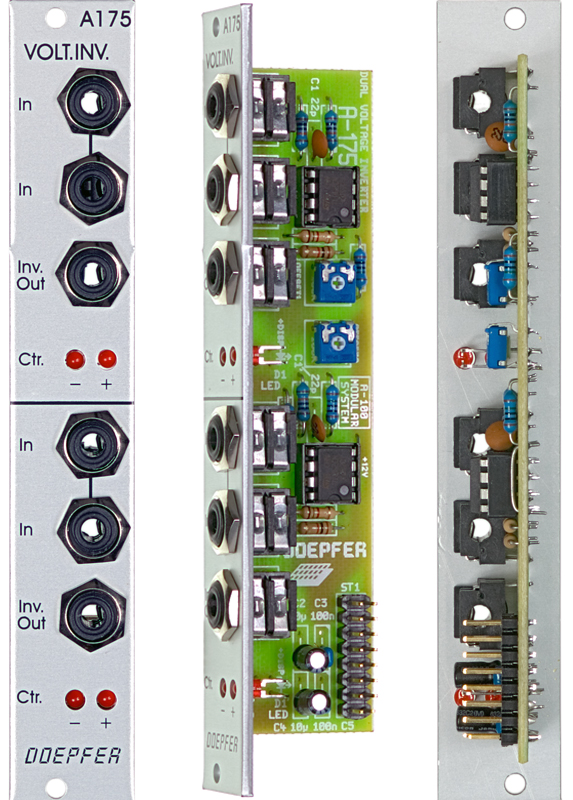

A-175 Dual Voltage Inverter |
||||
|
Das Modul A-175 ist ein zweifacher Spannungsumkehrer (engl. voltage inverter). Die am Eingang anlíegende Spannung wird invertiert (z.B. wird aus +5 V nach Invertierung -5 V) und steht am Ausgang zur Verfügung. Zwei LED's dienen zur Spannungskontrolle des Ausgangssignals (positiv/negativ). Zur weitergehenden Information steht die Bedienungsanleitung zur Verfügung: A175_Anl.pdf |
|||
|
||||
Module A-175 (Dual Voltage Inverter) is exactly
what it says it is: two identical inverters, which will take a voltage and output it in an
inverted form - so that an input of +5 V will be output as -5 V, an input of -2 V will be
output as +2 V, and so on. For more detailed information please look at the English user's guide: A175_man.pdf |
||||
|
||||
Breite/Width:
4 TE / 4 HP / 20.0 mm Tiefe/Depth: 35 mm (gemessen ab der Rückseite der Frontplatte / measured from the rear side of the front panel) Strombedarf/Current: +20mA (+12V) / -10mA (-12V) |
||||
|
||||
The price in US$ depends upon the exchange rate between Euro and US$ at the payment day. |
