A-183-5 Quad Attenuator
Slim Line Series

click to enlarge

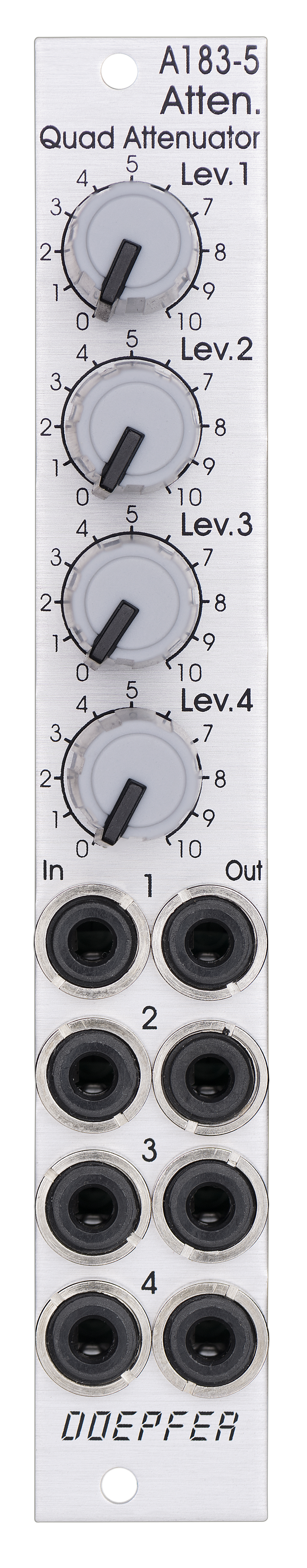

A-183-5 Frontpanel



Das Modul A-183-5 enthält vier passive Abschwächer. Passiv bedeutet in diesem Zusammenhang, dass jede Einheit nur aus zwei Buchsen mit einem dazwischengeschalteten 50k-Potentiometer besteht (keine aktiven Bauelemente wie z.B. Verstärker oder Puffer). Daher benötigt das Modul auch keine Stromversorgung.

Anwendungen:
Pegelabschwächung für Steuerspannungen oder Audiosignale von A-100-Modulen oder Modulen anderer Hersteller ohne Abschwächer

Technische Hinweise zu Modifikationen:

Das Dokument A183_5_modifications beschreibt folgende Modifikationen:

  • Normalisierung der Eingänge
  • Verwendung des Moduls als Steuerspannungsquelle (Ersatz für A-176)
Schaltbild einer Einheit des A-183-5

Module A-183-5 is a simple passive quad attenuator. Passive means in this context, that each unit is made of two sockets and a 50k linear potentiometer only. There are no active parts like amplifiers or buffers and no power supply is required.
This is how the A-183-5 works: At the output socket appears the attenuated input signal, i.e. zero level at the fully CCW position and max. level and the fully CW position.

Applications:
Adjustable level of CV or audio signals to control other modules that do not have attenuators available.

Technical notes regarding modifications:

The document A183_5_modifications describes these modifications:

  • normalling the inputs
  • using the module as control voltage source (replacement for A-176)
schematics of one A-183-5 unit

Breite/Width: 4 TE / 4 HP / 20.0 mm
Tiefe/Depth: 20 mm (gemessen ab der Rückseite der Frontplatte / measured from the rear side of the front panel)
Strombedarf/Current: +0mA (+12V) / -0mA (-12V)

Preis / Price: Euro 70.00
The price in US$ depends upon the exchange rate between Euro and US$ at the payment day.
