A-149-2 Digital Random Voltages


click to enlarge

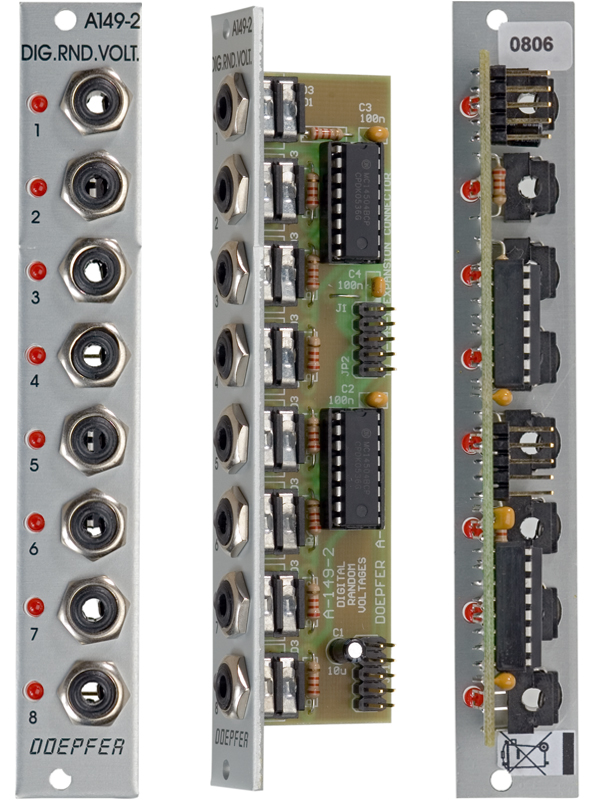

A-149-2 ist ein Ergänzungsmodul zum A-149-1. Es liefert 8 digitale Zufallsspannungen (d.h. nur low/high-Zustand wie z.B. ein Gate-Signal). Die Spannungen werden von der "Quantized Random Voltages" - Sektion des A-149-1 gesteuert und entsprechen den 8 Digital-Ausgängen des im A-149-1 verwendeten Schieberegisters für die Erzeugung der Quantized Random Voltages (näheres hierzu in der Beschreibung zum A-149-1). Da die Änderung der Ausgangszustände Clock-gesteuert erfolgt (Clk In der "Quantized Random Voltages" - Sektion des A-149-1) können beispielsweise mit dem A-149-2 zufällige, rhythmische Sequenzen erzeugt werden.

Das Modul muss unmittelbar links oder rechts neben dem A-149-1 im Rahmen plaziert werden, da eine interne Flachbandkabel-Verbindung zwischen beiden Modulen hergestellt werden muss. Das A-149-2 kann nicht einzeln ohne A-149-1 betrieben werden !

Bedienungsanleitung (deutsch): A1492_Anl.pdf.

Eine sehr ausführliche Behandlung der Funktionen dieser Zufallsspannungen und deren Anwendung findet man in dem englisch-sprachigen Buch von Allen Strange (Electronic music - systems, techniques and controls) ab Seite 82. Siehe hierzu auch unsere A-100 Literaturhinweise.


A-149-2 is an extension module for A-149-1. It makes available 8 digital random voltages (i.e. only low/high states like a gate signal). The outputs are controlled by the "Quantized Random Voltages" section of the assigned A-149-1 and correspond to the 8 digital outputs of the shift register that is used to generate the Quantized Random Voltages (for detailes please refer to the A-149-1 description). As the alteration of the A-149-2 outputs is clock controlled by the Clk In of the "Quantized Random Voltages" section of the A-149-1 the A-149-2 can be used to create random rhythmical sequences.

The A-149-2 requires the A-149-1 and has to be mounted directly to the left or right of the A-149-1 as an internal ribbon cable connection has to be established between A-149-1 and A-149-2.

User's manual (English): A1492_man.pdf

A very detailed description of the functions of the random voltages and their application can be found in Allen Strange's excellent book "Electronic music - systems, techniques and controls" from page 82 (refer to A-100 Further Reading).


Breite/Width: 4 TE / 4 HP / 20.0 mm
Tiefe/Depth: 35 mm (gemessen ab der Rückseite der Frontplatte / measured from the rear side of the front panel)
Strombedarf/Current:
+40mA (+12V) / -0mA (-12V)

Preis/price: Euro 65.00
The price in US$ depends upon the exchange rate between Euro and US$ at the payment day.
