DREHBANK

nicht mehr lieferbar  no longer available


MIDI-Control-Box

MIDI-Control-Box

Liste kompatibler Geräte und Programme List of compatible devices and programs

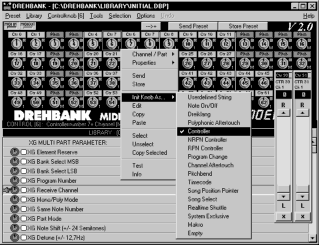

Das DREHBANK Editorprogramm (Version 2.0) ist kostenlos erhältlich. Klicken Sie auf eine der beiden Abbildungen, um ein selbst-entpackendes ZIP-File kostenlos herunterzuladen. Falls Sie Fragen zur Installation haben, wenden Sie sich bitte an software@doepfer.de. The DREHBANK editor program (version 2.0) is available for free. Click to one of the pictures to download a self-extracting zip file to install the editor. If you have any question please contact software@doepfer.de.

Jede DREHBANK wird zusammen mit der OEM-Version des Emagic Sounddivers für PC und Mac ausgeliefert. Hiermit können die Einstellungen der Drehbank komfortabel editiert und Presets archiviert und verwaltet werden. Falls Sie Ihre DREHBANK früher erworben haben können Sie die OEM-Version des Sounddivers nachträglich gegen eine Bearbeitungsgebühr von Euro 10.00 erwerben. Bitte beachten Sie, dass es sich um eine sogenannte OEM-Version handelt, die nur in Verbindung mit Doepfer-Geräten arbeitet ! Each DREHBANK is shipped together with the OEM version of Emagic's Sounddiver for PC for PC and Mac. This univeral editor program enables you to edit all parameters and archive the presets of DREHBANK very easily. When you purchased the DREHBANK in the past you may obtain the Sounddiver at Euro 10.00 processing charges. Please ask your local representation when you received your Drehbank not from Doepfer/Germany directly.





Hier die wichtigsten Eigenschaften der Drehbank: These are the most important features of Drehbank:
64 Drehregler (Drehpotentiometer) 64 rotary controls (rotary potentiometers)
jedem Regler kann ein beliebiger MIDI-Befehl (z.B. MIDI-Controller, After-Touch, Pitch-Bend, note on/off usw.) oder ein beliebiger MIDI-String mit maximal 64 Bytes Länge zugeordnet werden (insbesondere auch System-Exclusive-String) each knob can be assigned any MIDI event (e.g. Controller, Pitchbend, Aftertouch, Note on/off and so on) or any MIDI string up to 64 bytes (especially System Exclusive messages)
Konfiguration der Drehbank über mitgelieferte PC Editor-Software mit umfangreichen weiteren Parameter-Einstellungen (u.a. Abtastrate, Wertebereich), viele fertige Libraries bereits im Lieferumfang (wird laufend erweitert), z.B. XG,GM usw.
System-Voraussetzungen: PC mit Betriebssystem Windows 3.1, 3.11, 95, NT mit MIDI-Interface (bzw. Sound-Karte mit MIDI-Interface)
configuration of Drehbank with free available editor program for PC with many parameter settings (e.g. sampling rate of the controls, data range for each knob and so on), many ready-made libraries available (libraries are permanently extended), e.g. XG, GM and so on.
System requirements: PC with Windows 3.1, 3.11, 95, NT and MIDI interface (resp. sound card with integrated MIDI interface)
2 frei definierbare Konfigurationen ("Bänke") im Gerät abrufbar 2 user defined setups ("banks") available within the device
zusätzlich 8 fest ab Werk vorgegebene Konfigurationen: 2xRebirth, 2xRmx1, 1xController 1-64, 1xController 65-128, 1x ausgesuchte Controller, 1x GM-Mixer additionally 8 fixed factory setups: 2 x Rebirth, 2 x Rmx1, 1 x controllers 1-64 (MIDI channel 1), 1 x controllers 65-128 (MIDI channel 1), 1 x selected Controllers (MIDI channel 1), 1x GM mixer (MIDI channel 1-16)
Snapshot-Funktion (= Absenden aller 64 Reglerpositionen auf Knopfdruck) Snapshot function (= send off all 64 control positions)
8 externe CV-Eingänge in Form von 6.3mm Klinkenbuchsen an der Rückseite für Steuerspannungen 0...+5V (ext. Eingang 1...4) oder Fussregler (ext. Eingang 5...8), für jeden benutzten externen Eingang wird einer der 8 Drehregler an der rechten Seite der Frontplatte (d.h. Regler Nr. 15, 16, 31, 32, 47, 48, 63, 64) abgeschaltet 8 CV inputs for external control voltages 0...+5V (e.g. from A-100 modules) or foot controller, normalized 1/4" jack sockets at the rear panel, each external input in use switches off one of the 8 rotary controls at the right side of the front panel (i.e. the controls no. 15, 16, 31, 32, 47, 48, 63, 64), ext. inputs 1...4 are prepared for ext. CV 0...5V, ext. inputs 5...8 are prepared for foot controllers
MIDI-Out MIDI Out
MIDI-In mit Merge-Funktion. Die ankommenden MIDI-Daten werden den Daten, die die Drehbank erzeugt hinzugemischt, wobei die Summe der dabei insgesamt erzeugten Datenmenge natürlich die in MIDI maximal mögliche Datenrate nicht übersteigen darf, da sonst zwangsläufig Datenverluste die Folge sind. Die am MIDI-Eingang der Drehbank eingehenden Daten müssen daher noch genügend "Luft" haben, damit die Daten der Drehbank noch hinzugemerged werden können ! MIDI In with merging feature, i.e. incoming MIDI events are merged with the MIDI data generated by Drehbank. Of course the sum of incoming MIDI data and the MIDI date generated by Drehbank cannot exceed the maximum data rate prescribed by the MIDI interface data rate. Otherwise data loss may occur. There has to be sufficient room/space in the incoming MIDI data stream so that the data generated by the Drehbank can be added. We recommend to use only MIDI In data with a small degree of utilization.
Die Drehbank ist in einem stabilen silbergrauen Metall- Pultgehäuse aus 1 mm Stahlblech untergebracht (ca. 439x132x50 mm) Drehbank is built into a stable, silver-grey metal case made of 1 mm steel (measures about 439x132x50 mm)
hellgraue Drehknöpfe (identisch zu den Knöpfen von A-100, MAQ16/3, Pocket Control usw.) light grey knobs (same as used in A-100, MAQ16/3, Pocket Control and so on)
3 Bedientaster mit zugehörigen 3 blauen Leuchtdioden 3 control buttons with assigned 3 blue LEDs
weisses Beschriftungsfeld (ca. 21x8mm) über jedem Regler für manuelle Beschriftung oder zum Anbringen von Aufklebern White label (21x8 mm) above each knob for manual inscription or for sticking on self-adhesive labels
19"-Winkel für Rackmontage und 1HE-Blindplatte (gleiche Lackierung wie DREHBANK), bei der Montage im 19"-Rack muss über der Drehbank Platz für die Anschlusskabel (MIDI, ext. CV, Netzteil) berücksichtigt werden, Gesamthöhe ca. 4 HE 19" support for rack mounting and 1 HU 19" blind panel (same varnish as DREHBANK), if mounted into a 19" rack about 1HU space is required above the DREHBANK because of the connections (MIDI, ext. CV, power supply), total height about 4U
Stromversorgung über externes Steckernetzteil 230V, mit Eurostecker (im Lieferumfang enthalten, Netzteile für andere Netzstecker oder Netzspannungen müssen vom Benutzer im jeweiligen Land erworben werden, 7...12V/250mA DC erforderlich) external AC adapter for power supply (AC adapter for 230V AC and European type of mains connector is included, adapters for other voltages or other mains connector types has to be purchased by the customer in his country, 7...12V/250mA DC required)
Sonderpreis (Auslauftyp) : Euro 299.00 incl. Steckernetzteil für 230V mit Eurostecker, solange der Vorrat reicht  special price (running out): Euro 299.00 incl. 230V power supply with European mains plug type, while stocks last !
The price in US$ depends upon the exchange rate between Euro and US$ at the payment day.
Free currency converter:
Die Drehbank-Bedienungsanleitung ist als PDF-Datei auf unserer Web-Site verfügbar. The Drehbank user's manual is available as PDF file on our web site.
  P.S.: The German word "DREHBANK" means "TURNING LATHE"

Hinweis: Seit ca. Mitte 2002 wird die DREHBANK mit silbergrauem Gehäuse ausgeliefert (siehe Bild oben). Die frühere Version mit dunkelgrauem Gehäuse ist nicht mehr erhältlich.

Remark: Since about summer 2002 Drehbank is available with silvergrey housing only (see picture above). The earlier version with dark-grey housing is no longer available.

Beispiel-Presets zum Herunterladen finden Sie unter im Download-Bereich zu Drehbank (z.B. Yamaha Promix, Cubase VST, Emagic Logic Audio, Waldorf Pulse und Microwave, MKS70, Access Virus, Cakewalk, Kawai K4, Soundblaster AEW32, Behringer Virtualizer, Yamaha DX-7, EX800 usw.) Example presets for download are available in the Drehbank download area (e.g. Yamaha Promix, Cubase VST, Emagic Logic Audio, Waldorf Pulse and Microwave, MKS70, Access Virus, Cakewalk, Kawai K4, Soundblaster AEW32, Behringer Virtualizer, Yamaha DX-7, EX800 and many more)

Verwandte Produkte:

Related products:


Beschreibung der Presets/Librarys:

Der DREHBANK-Editor V1.1 enthält folgende Librarys/Presets:

Description of Presets/Librarys:

The DREHBANK-Editor V1.1 contains the following Librarys/Presets:

LIBRARYS:
..\DREHBANK\LIBRARY\GM_CTRL.DBP General MIDI Controller Library (sortiert)
..\DREHBANK\LIBRARY\GM_LIB.DBP General MIDI komplette Library
..\DREHBANK\LIBRARY\MC303.DBP Library fuer ROLAND MC-303 (nicht komplett)
..\DREHBANK\LIBRARY\SG01K.DBP Library fuer AKAI SG01k
..\DREHBANK\LIBRARY\XG_DRUMS.DBP Library fuer alle YAMAHA XG kompatiblen
..\DREHBANK\LIBRARY\XG_EQ.DBP Library fuer alle YAMAHA XG kompatiblen
..\DREHBANK\LIBRARY\XG_FX1.DBP Library fuer alle YAMAHA XG kompatiblen
..\DREHBANK\LIBRARY\XG_PART.DBP Library fuer alle YAMAHA XG kompatiblen
..\DREHBANK\LIBRARY\DM5.DBP Library fuer Alesis DM5
..\DREHBANK\LIBRARY\TRICKS.DBP Einige interresante Reglerfunktionen

 PRESETS:
..\DREHBANK\PRESET\303DRMIX.DBP Preset Drum-Mischer fuer ROLAND MC-303
..\DREHBANK\PRESET\EMPTY.DBP Leeres Preset zum Erstellen neuer Presets
..\DREHBANK\PRESET\EMPTYLIB.DBP Leere Library zum Erstellen neuer Librarys
..\DREHBANK\PRESET\GM_MIXER.DBP Preset General MIDI Mischer
..\DREHBANK\PRESET\XG_DRMIX.DBP Preset XG Drum-Mischer (alle YAMAHA XG)
..\DREHBANK\PRESET\XG_MIXER.DBP Preset XG Mischer (alle YAMAHA XG)
..\DREHBANK\PRESET\SG01DRUM.DBP Preset Drum-Mischer fuer Akai SG01
..\DREHBANK\PRESET\JX-8P.DBP Preset fuer Roland JX-8P
..\DREHBANK\PRESET\K1.DBP Preset fuer Kawai K1
..\DREHBANK\PRESET\MOTUMM7S.DBP Preset fuer Motu-Midi-Mixer 7S
..\DREHBANK\PRESET\XG_DEMO.DBP Auslieferungspreset XG Demonstration

 Ausserdem finden sich folgende Dateien:

 ..\DREHBANK\DREHBANK.EXE DREHBANK-Editor Programm
..\DREHBANK\DB_HELP.HLP Englische Online Help
..\DREHBANK\DB_HILFE.HLP Deutsche Online Hilfe
..\DREHBANK\WASISNEU.TXT DasIsNeu in DREHBANK-Editor Version 1.1
..\DREHBANK\LICENCE.TXT Lizenzvereinbarung
..\DREHBANK\GETAFILE.TXT Wie man einzelne Dateien aus DB11.EXE holt

 ROM Presets:

Da die aktuelle Drehbankhardware nun im Gegensatz zu den ersten ausgelieferten Geraeten ueber 3 Taster & Leuchtdioden verfuegt, bietet es sich an mehr als nur das eine auf Seite 73 im Handbuch dokumentierte Preset 'einzubauen'.

Bei der Planung und Erstellung der zusaetzlichen ROM-Presets wirkte massgeblich MIJK VAN DIJK mit.

More informations about Mijk van Dijk and his projects are available here:

<http://www.superstition.de/html/nav.html>

<http://www.geocities.co.jp/Hollywood/1512/lpcd.html>

Die ROM-Presets werden wie im Handbuch beschrieben durch Gedrueckthalten bestimmter Tasterkombinationen beim Einschalten der Drehbank aufgerufen:

ROM-Preset 1

wie im Handbuch S.73 beschrieben

ROM-Preset 2

 ReBirth-Konfiguration

 Konfiguration 1/A

„REBIRTH-309"

Channel/Controller Wertebereich Bezeichnung

01 1 38 0 - 127 808-BD-Level
02 1 39 0 - 127 808-BD-Tone
03 1 40 0 - 127 808-BD-Decay
04 1 41 0 - 127 808-Snare-Level
05 1 42 0 - 127 808-Snare-Tone
06 1 43 0 - 127 808-Snare-snappy
07 1 55 0 - 127 808-Clap-Level
08 1 53 0 - 127 808-Rim-Level
09 1 24 0 - 127 303/1 - Tune
10 1 25 0 - 127 303/1 - Cutoff
11 1 26 0 - 127 303/1 -Resonance
12 1 27 0 - 127 303/1 - EnvMod
13 1 28 0 - 127 303/1 - Decay
14 1 41 0 - 127 303/1 - Accent
15 1 13 0 - 127 303/1 - Delay
16 1 11 0 - 127 303/1 - Level

 17 1 66 0 - 127 909-BD-Level
18 1 67 0 - 127 909-BD-Tune
19 1 69 0 - 127 909-BD-Decay
20 1 70 0 - 127 909-Snare-Level
21 1 71 0 - 127 909-Snare-Tune
22 1 73 0 - 127 909-Snare-snappy
23 1 85 0 - 127 909-Clap-Level
24 1 84 0 - 127 909-Rim-Level
25 1 31 0 - 127 303/2 - Tune
26 1 32 0 - 127 303/2 - Cutoff
27 1 33 0 - 127 303/2 -Resonance
28 1 34 0 - 127 303/2 - EnvMod
29 1 35 0 - 127 303/2 - Decay
30 1 36 0 - 127 303/2 - Accent
31 1 16 0 - 127 303/2 - Delay
32 1 14 0 - 127 303/2 - Level
33 1 44 0 - 127 808-LowTom Level
34 1 45 0 - 127 808-LowTom Tune
35 1 47 0 - 127 808-MidTom Level
36 1 48 0 - 127 808-MidTom Tune
37 1 50 0 - 127 808-HiTom Level
38 1 51 0 - 127 808-HiTom Tune
39 1 57 0 - 127 808-Cabasa Level
40 1 58 0 - 127 808-Cymbal Level
41 1 59 0 - 127 808-Cymbal Tone
42 1 60 0 - 127 808-Cymbal Decay
43 1 63 0 - 127 808-closed HH Level
44 1 61 0 - 127 808-open HH Level
45 1 62 0 - 127 808-open HH Decay
46 1 37 0 - 127 808-Accent Level
47 1 19 0 - 127 808 - Delay
48 1 17 0 - 127 808 -MasterLevel



49 1 74 0 - 127 909-LowTomLevel
50 1 75 0 - 127 909-LowTom Tune
51 1 77 0 - 127 909-MidTom Level
52 1 78 0 - 127 909-MidTom Tune
53 1 80 0 - 127 909-HiTom Level
54 1 81 0 - 127 909-HiTom Tune
55 1 88 0 - 127 909-Crash Cymbal Level
56 1 89 0 - 127 909-Crash Cymbal Tune
57 1 90 0 - 127 909-Ride Cymbal Level
58 1 91 0 - 127 909-Ride Cymbal Tune
59 1 83 0 - 127 909- HH Level
60 1 86 0 - 127 909-closed HH Decay
61 1 87 0 - 127 909-open HH Decay
62 1 65 0 - 127 909-Accent Level
63 1 22 0 - 127 909 - Delay
64 1 20 0 - 127 909 -MasterLevel



Konfiguration 1/B

„REBIRTH-309"

Channel/Controller Wertebereich Bezeichnung



Die Funktionen der Regler 33 - 64 löse ich üblicherweise mit einem MIDI-Controller wie dem Regelwerk. 16 Fader übernehmen die Reglerfunktionen 49 - 64, 48 Buttons senden MIDI-Note-Nummern, um Patterns zu selektieren Funktionen ein-und-auszuschalten . Diese Funktionen habe ich einfach noch für die B-Variante der ReBirth-Konfiguration vorgesehen (als Anregung für andere User und falls mal das Regelwerk nicht zur Hand ist).
Die NotenEvents werden ausgeloest, wenn die zugehoerigen Drehregler auf Rechtsanschlag gebracht werden.
Um sie erneut auszuloesen, muss dieser zum 'Schalter' zweckentfremdete Drehregler 'virtuell losgelassen' werden, also einfach wieder ein Stueckchen nach links gedreht werden.

 Channel/Note-Number Wertebereich Bezeichnung

1 1 43 -Note- 808 - Pattern 1
2 1 44 -Note- 808 - Pattern 2
3 1 45 -Note- 808 - Pattern 3
4 1 46 -Note- 808 - Pattern 4
5 1 47 -Note- 808 - Pattern 5
6 1 48 -Note- 808 - Pattern 6
7 1 49 -Note- 808 - Pattern 7
8 1 50 -Note- 808 - Pattern 8
9 1 17 -Note- 303/1 - Pattern 1
10 1 18 -Note- 303/1 - Pattern 2
11 1 19 -Note- 303/1 - Pattern 3
12 1 20 -Note- 303/1 - Pattern 4
13 1 21 -Note- 303/1 - Pattern 5
14 1 22 -Note- 303/1 - Pattern 6
15 1 23 -Note- 303/1 - Pattern 7
16 1 24 -Note- 303/1 - Pattern 8

17 1 56 -Note- 909 - Pattern 1
18 1 57 -Note- 909 - Pattern 2
19 1 58 -Note- 909 - Pattern 3
20 1 59 -Note- 909 - Pattern 4
21 1 60 -Note- 909 - Pattern 5
22 1 61 -Note- 909 - Pattern 6
23 1 62 -Note- 909 - Pattern 7
24 1 63 -Note- 909 - Pattern 8
25 1 30 -Note- 303/2 - Pattern 1
26 1 31 -Note- 303/2 - Pattern 2
27 1 32 -Note- 303/2 - Pattern 3
28 1 33 -Note- 303/2 - Pattern 4
29 1 34 -Note- 303/2 - Pattern 5
30 1 35 -Note- 303/2 - Pattern 6
31 1 36 -Note- 303/2 - Pattern 7
32 1 37 -Note- 303/2 - Pattern 8

33 1 80 -Note- 303/1 - PCF on
34 1 84 -Note- 303/2 - PCF on
35 1 88 -Note- 808 - PCF on
36 1 92 -Note- 909 - PCF on
37 1 79 -Note- 303/1 - Distortionon
38 1 83 -Note- 303/2 - Distortionon
39 1 87 -Note- 808 - Distortionon
40 1 91 -Note- 909 - Distortionon
41 1 81 -Note- 303/1 - Compressoron
42 1 85 -Note- 303/2 - Compressoron
43 1 89 -Note- 808 - Compressoron
44 1 93 -Note- 909 - Compressoron
45 1 78 -Note- 303/1 - Mix on
46 1 82 -Note- 303/2 - Compressoron
47 1 86 -Note- 808 - Compressoron
48 1 90 -Note- 909 - Compressoron



Channel/Controller Wertebereich Bezeichnung

49 1 94 0 - 127 PCF Pattern
50 1 95 0 - 127 PCF-Mode (LP/HP)
51 1 96 0 - 127 PCF-Frequency
52 1 97 0 - 127 PCF-Q
53 1 98 0 - 127 PCF Amount
54 1 99 0 - 127 PCF Decay
55 1 100 0 - 127 Delay Step
56 1 101 0 - 127 Triplet Mode
57 1 102 0 - 127 Delay pan
58 1 103 0 - 127 Delay Feedback
59 1 104 0 - 127 Distortion Shape
60 1 105 0 - 127 Distortion Amount
61 1 106 0 - 127 Compressor Ratio
62 1 107 0 - 127 CompressorThreshold
63 1 108 0 - 127 Shuffle
64 1 7 0 - 127 Master - Level



ROM-Preset 3

 Die Konfiguration 3 soll dazu dienen, sowohl den RM1x als auch den SU-700 von Yamaha fernzusteuern. Der RM1x hat eine normale XG-Klangerzeugung. Der SU-700 ist flexibel einstellbar, „versteht" allerdings nicht Pitchbend.

 Konfiguration 2 / A

„RM1x / SU-700 - Filter, Decay + Pitch"

Channel/Controller Wertebereich Bezeichnung



01 1 74 0 - 127 Cutoff Channel 1
02 2 74 0 - 127 Cutoff Channel 2
03 3 74 0 - 127 Cutoff Channel 3
04 4 74 0 - 127 Cutoff Channel 4
05 5 74 0 - 127 Cutoff Channel 5
06 6 74 0 - 127 Cutoff Channel 6
07 7 74 0 - 127 Cutoff Channel 7
08 8 74 0 - 127 Cutoff Channel 8
09 9 74 0 - 127 Cutoff Channel 9
10 10 74 0 - 127 Cutoff Channel 10
11 11 74 0 - 127 Cutoff Channel 11
12 12 74 0 - 127 Cutoff Channel 12
13 13 74 0 - 127 Cutoff Channel 13
14 14 74 0 - 127 Cutoff Channel 14
15 15 74 0 - 127 Cutoff Channel 15
16 16 74 0 - 127 Cutoff Channel 16

 17 1 71 0 - 127 Resonance Channel 1
18 2 71 0 - 127 Resonance Channel 2
19 3 71 0 - 127 Resonance Channel 3
20 4 71 0 - 127 Resonance Channel 4
21 5 71 0 - 127 Resonance Channel 5
22 6 71 0 - 127 Resonance Channel 6
23 7 71 0 - 127 Resonance Channel 7
24 8 71 0 - 127 Resonance Channel 8
25 9 71 0 - 127 Resonance Channel 9
26 10 71 0 - 127 Resonance Channel10
27 11 71 0 - 127 Resonance Channel11
28 12 71 0 - 127 Resonance Channel 12
29 13 71 0 - 127 Resonance Channel 13
30 14 71 0 - 127 Resonance Channel 14
31 15 71 0 - 127 Resonance Channel 15
32 16 71 0 - 127 Resonance Channel 16

33 1 75 0 - 127 EG Decay 1
34 2 75 0 - 127 EG Decay 2
35 3 75 0 - 127 EG Decay 3
36 4 75 0 - 127 EG Decay 4
37 5 75 0 - 127 EG Decay 5
38 6 75 0 - 127 EG Decay 6
39 7 75 0 - 127 EG Decay 7
40 8 75 0 - 127 EG Decay 8
41 9 75 0 - 127 EG Decay 9
42 10 75 0 - 127 EG Decay 10
43 11 75 0 - 127 EG Decay 12
45 13 75 0 - 127 EG Decay 13
46 14 75 0 - 127 EG Decay 14
47 15 75 0 - 127 EG Decay 15
48 16 75 0 - 127 EG Decay 16

49 1 7 0 - 127 Volume Channel 1
50 2 7 0 - 127 Volume Channel 2
51 3 7 0 - 127 Volume Channel 3
52 4 7 0 - 127 Volume Channel 4
53 5 7 0 - 127 Volume Channel 5
54 6 7 0 - 127 Volume Channel 6
55 7 7 0 - 127 Volume Channel 7
56 8 7 0 - 127 Volume Channel 8
57 9 7 0 - 127 Volume Channel 9
58 10 7 0 - 127 Volume Channel 10
59 11 7 0 - 127 Volume Channel 11
60 12 7 0 - 127 Volume Channel 12
61 13 7 0 - 127 Volume Channel 13
62 14 7 0 - 127 Volume Channel 14
63 15 7 0 - 127 Volume Channel 15
64 16 7 0 - 127 Volume Channel 16



Konfiguration 2 / B

„RM1x + SU-700 - Effect Sends + Volume"

Channel/Controller Wertebereich Bezeichnung

01 1 94 0 - 127 Effect Send-3 Channel 1
02 2 94 0 - 127 Effect Send-3 Channel 2
03 3 94 0 - 127 Effect Send-3 Channel 3
04 4 94 0 - 127 Effect Send-3 Channel 4
05 5 94 0 - 127 Effect Send-3 Channel 5
06 6 94 0 - 127 Effect Send-3 Channel 6
07 7 94 0 - 127 Effect Send-3 Channel 7
08 8 94 0 - 127 Effect Send-3 Channel 8
09 9 94 0 - 127 Effect Send-3 Channel 9
10 10 94 0 - 127 Effect Send-3 Channel 10
11 11 94 0 - 127 Effect Send-3 Channel 11
12 12 94 0 - 127 Effect Send-3 Channel 12
13 13 94 0 - 127 Effect Send-3 Channel 13
14 14 94 0 - 127 Effect Send-3 Channel 14
15 15 94 0 - 127 Effect Send-3 Channel 15
16 16 94 0 - 127 Effect Send-3 Channel 16

 17 1 93 0 - 127 Effect Send-2 Channel 1
18 2 93 0 - 127 Effect Send-2 Channel 2
19 3 93 0 - 127 Effect Send-2 Channel 3
20 4 93 0 - 127 Effect Send-2 Channel 4
21 5 93 0 - 127 Effect Send-2 Channel 5
22 6 93 0 - 127 Effect Send-2 Channel 6
23 7 93 0 - 127 Effect Send-2 Channel 7
24 8 93 0 - 127 Effect Send-2 Channel 8
25 9 93 0 - 127 Effect Send-2 Channel 9
26 10 93 0 - 127 Effect Send-2 Channel 10
27 11 93 0 - 127 Effect Send-2 Channel 11
28 12 93 0 - 127 Effect Send-2 Channel 12
29 13 93 0 - 127 Effect Send-2 Channel 13
30 14 93 0 - 127 Effect Send-2 Channel 14
31 15 93 0 - 127 Effect Send-2 Channel 15
32 16 93 0 - 127 Effect Send-2 Channel 16

33 1 91 0 - 127 Effect Send-1 Channel 1
34 2 91 0 - 127 Effect Send-1 Channel 2
35 3 91 0 - 127 Effect Send-1 Channel 3
36 4 91 0 - 127 Effect Send-1 Channel 4
37 5 91 0 - 127 Effect Send-1 Channel 5
38 6 91 0 - 127 Effect Send-1 Channel 6
39 7 91 0 - 127 Effect Send-1 Channel 7
40 8 91 0 - 127 Effect Send-1 Channel 8
41 9 91 0 - 127 Effect Send-1 Channel 9
42 10 91 0 - 127 Effect Send-1 Channel 10
43 11 91 0 - 127 Effect Send-1 Channel 11
44 12 91 0 - 127 Effect Send-1 Channel 12
45 13 91 0 - 127 Effect Send-1 Channel 13
46 14 91 0 - 127 Effect Send-1 Channel 14
47 15 91 0 - 127 Effect Send-1 Channel 15
48 16 91 0 - 127 Effect Send-1 Channel 16

49 1 PB+95 0 - 127 Pitch Channel 1
50 2 PB+95 0 - 127 Pitch Channel 2
51 3 PB+95 0 - 127 Pitch Channel 3
52 4 PB+95 0 - 127 Pitch Channel 4
53 5 PB+95 0 - 127 Pitch Channel 5
54 6 PB+95 0 - 127 Pitch Channel 6
55 7 PB+95 0 - 127 Pitch Channel 7
56 8 PB+95 0 - 127 Pitch Channel 8
57 9 PB+95 0 - 127 Pitch Channel 9
58 10 PB+95 0 - 127 Pitch Channel 10
59 11 PB+95 0 - 127 Pitch Channel 11
60 12 PB+95 0 - 127 Pitch Channel 12
61 13 PB+95 0 - 127 Pitch Channel 13
62 14 PB+95 0 - 127 Pitch Channel 14
63 15 PB+95 0 - 127 Pitch Channel 15
64 16 PB+95 0 - 127 Pitch Channel 16



 ROM-Preset 4

Regler 1 sendet Controller 1, Regler 2 Controller 2. Die B-Variante saehe dann logisch fortlaufend so aus: Regler 1 sendet Controller 65, usw.
Regler 64 sendet Controller 0.
Gemeinsamer MIDI-Kanal für alle Regler soll Kanal 1 sein.

Die 'minus 1' - Variante (Regler 1 sendet Controller 0,  Regler 2 = 1 und so weiter) finde ich naemlich live oefters sehr abstrakt. Somit stimmt die Beschriftung der Regler automatisch mit den Controllern ueberein.

LIBRARYS:
..\DREHBANK\LIBRARY\GM_CTRL.DBP General MIDI Controller Library (sorted)
..\DREHBANK\LIBRARY\GM_LIB.DBP General MIDI complete Library
..\DREHBANK\LIBRARY\MC303.DBP Library for ROLAND MC-303 (not complete)
..\DREHBANK\LIBRARY\SG01K.DBP Library for AKAI SG01k
..\DREHBANK\LIBRARY\XG_DRUMS.DBP Library for all YAMAHA XG compatible
..\DREHBANK\LIBRARY\XG_EQ.DBP Library for all YAMAHA XG compatible
..\DREHBANK\LIBRARY\XG_FX1.DBP Library for all YAMAHA XG compatible
..\DREHBANK\LIBRARY\XG_PART.DBP Library for all YAMAHA XG compatible
..\DREHBANK\LIBRARY\DM5.DBP Library for Alesis DM5
..\DREHBANK\LIBRARY\TRICKS.DBP Some tricky Control Functions


PRESETS:
..\DREHBANK\PRESET\303DRMIX.DBP Preset Drum-Mixer for ROLAND MC-303
..\DREHBANK\PRESET\EMPTY.DBP Empty Preset for creating new Presets
..\DREHBANK\PRESET\EMPTYLIB.DBP Empty Library for creating new Librarys
..\DREHBANK\PRESET\GM_MIXER.DBP Preset General MIDI Mixer
..\DREHBANK\PRESET\XG_DRMIX.DBP Preset XG Drum-Mixer (all YAMAHA XG)
..\DREHBANK\PRESET\XG_MIXER.DBP Preset XG Part-Mixer (all YAMAHA XG)
..\DREHBANK\PRESET\SG01DRUM.DBP Preset Drum-Mixer for Akai SG01
..\DREHBANK\PRESET\JX-8P.DBP Preset for Roland JX-8P
..\DREHBANK\PRESET\K1.DBP Preset for Kawai K1
..\DREHBANK\PRESET\MOTUMM7S.DBP Preset for Motu-Midi-Mixer 7S
..\DREHBANK\PRESET\XG_DEMO.DBP XG Demonstration (Factory Preset)


Some other Files:

..\DREHBANK\DREHBANK.EXE DREHBANK-Editor Program
..\DREHBANK\DB_HELP.HLP English Online Help
..\DREHBANK\DB_HILFE.HLP German Online Help
..\DREHBANK\WASISNEU.TXT WhatsNew in DREHBANK-Editor Version 1.1
..\DREHBANK\LICENCE.TXT Licenze Agreement
..\DREHBANK\GETAFILE.TXT Howto extract single Files of DB11.EXE

ROM Presets:

You can load the DREHBANK with different ROM (Factory) Presets by presseing
a special combination of the 3 Buttons during Power-On (V1.1).
(Without loosing the stored Preset in EEPROM !)

The ROM Presets are created by MIJK VAN DIJK.

More informations about Mijk van Dijk and his projects are available here:

<http://www.superstition.de/html/nav.html>

<http://www.geocities.co.jp/Hollywood/1512/lpcd.html>

HINT: You can Store a ROM Preset in EEPROM by sending a "Store Preset"
Command with the DREHBANK-Editor, after you have loaded it.
So everytime you Power-On the DREHBANK, this ROM Preset will
now be Present.

 ROM-Preset 1

see manual  page.73

ROM-Preset 2

 ReBirth-configuration

 Konfiguration 1/A

„REBIRTH-309"

Channel/Controller Range Description

01 1 38 0 - 127 808-BD-Level
02 1 39 0 - 127 808-BD-Tone
03 1 40 0 - 127 808-BD-Decay
04 1 41 0 - 127 808-Snare-Level
05 1 42 0 - 127 808-Snare-Tone
06 1 43 0 - 127 808-Snare-snappy
07 1 55 0 - 127 808-Clap-Level
08 1 53 0 - 127 808-Rim-Level
09 1 24 0 - 127 303/1 - Tune
10 1 25 0 - 127 303/1 - Cutoff
11 1 26 0 - 127 303/1 -Resonance
12 1 27 0 - 127 303/1 - EnvMod
13 1 28 0 - 127 303/1 - Decay
14 1 41 0 - 127 303/1 - Accent
15 1 13 0 - 127 303/1 - Delay
16 1 11 0 - 127 303/1 - Level

 17 1 66 0 - 127 909-BD-Level
18 1 67 0 - 127 909-BD-Tune
19 1 69 0 - 127 909-BD-Decay
20 1 70 0 - 127 909-Snare-Level
21 1 71 0 - 127 909-Snare-Tune
22 1 73 0 - 127 909-Snare-snappy
23 1 85 0 - 127 909-Clap-Level
24 1 84 0 - 127 909-Rim-Level
25 1 31 0 - 127 303/2 - Tune
26 1 32 0 - 127 303/2 - Cutoff
27 1 33 0 - 127 303/2 -Resonance
28 1 34 0 - 127 303/2 - EnvMod
29 1 35 0 - 127 303/2 - Decay
30 1 36 0 - 127 303/2 - Accent
31 1 16 0 - 127 303/2 - Delay
32 1 14 0 - 127 303/2 - Level
33 1 44 0 - 127 808-LowTom Level
34 1 45 0 - 127 808-LowTom Tune
35 1 47 0 - 127 808-MidTom Level
36 1 48 0 - 127 808-MidTom Tune
37 1 50 0 - 127 808-HiTom Level
38 1 51 0 - 127 808-HiTom Tune
39 1 57 0 - 127 808-Cabasa Level
40 1 58 0 - 127 808-Cymbal Level
41 1 59 0 - 127 808-Cymbal Tone
42 1 60 0 - 127 808-Cymbal Decay
43 1 63 0 - 127 808-closed HH Level
44 1 61 0 - 127 808-open HH Level
45 1 62 0 - 127 808-open HH Decay
46 1 37 0 - 127 808-Accent Level
47 1 19 0 - 127 808 - Delay
48 1 17 0 - 127 808 -MasterLevel



49 1 74 0 - 127 909-LowTomLevel
50 1 75 0 - 127 909-LowTom Tune
51 1 77 0 - 127 909-MidTom Level
52 1 78 0 - 127 909-MidTom Tune
53 1 80 0 - 127 909-HiTom Level
54 1 81 0 - 127 909-HiTom Tune
55 1 88 0 - 127 909-Crash Cymbal Level
56 1 89 0 - 127 909-Crash Cymbal Tune
57 1 90 0 - 127 909-Ride Cymbal Level
58 1 91 0 - 127 909-Ride Cymbal Tune
59 1 83 0 - 127 909- HH Level
60 1 86 0 - 127 909-closed HH Decay
61 1 87 0 - 127 909-open HH Decay
62 1 65 0 - 127 909-Accent Level
63 1 22 0 - 127 909 - Delay
64 1 20 0 - 127 909 -MasterLevel



Konfiguration 1/B

„REBIRTH-309"

Channel/Controller Range Description

1 1 43 -Note- 808 - Pattern 1
2 1 44 -Note- 808 - Pattern 2
3 1 45 -Note- 808 - Pattern 3
4 1 46 -Note- 808 - Pattern 4
5 1 47 -Note- 808 - Pattern 5
6 1 48 -Note- 808 - Pattern 6
7 1 49 -Note- 808 - Pattern 7
8 1 50 -Note- 808 - Pattern 8
9 1 17 -Note- 303/1 - Pattern 1
10 1 18 -Note- 303/1 - Pattern 2
11 1 19 -Note- 303/1 - Pattern 3
12 1 20 -Note- 303/1 - Pattern 4
13 1 21 -Note- 303/1 - Pattern 5
14 1 22 -Note- 303/1 - Pattern 6
15 1 23 -Note- 303/1 - Pattern 7
16 1 24 -Note- 303/1 - Pattern 8

17 1 56 -Note- 909 - Pattern 1
18 1 57 -Note- 909 - Pattern 2
19 1 58 -Note- 909 - Pattern 3
20 1 59 -Note- 909 - Pattern 4
21 1 60 -Note- 909 - Pattern 5
22 1 61 -Note- 909 - Pattern 6
23 1 62 -Note- 909 - Pattern 7
24 1 63 -Note- 909 - Pattern 8
25 1 30 -Note- 303/2 - Pattern 1
26 1 31 -Note- 303/2 - Pattern 2
27 1 32 -Note- 303/2 - Pattern 3
28 1 33 -Note- 303/2 - Pattern 4
29 1 34 -Note- 303/2 - Pattern 5
30 1 35 -Note- 303/2 - Pattern 6
31 1 36 -Note- 303/2 - Pattern 7
32 1 37 -Note- 303/2 - Pattern 8

33 1 80 -Note- 303/1 - PCF on
34 1 84 -Note- 303/2 - PCF on
35 1 88 -Note- 808 - PCF on
36 1 92 -Note- 909 - PCF on
37 1 79 -Note- 303/1 - Distortionon
38 1 83 -Note- 303/2 - Distortionon
39 1 87 -Note- 808 - Distortionon
40 1 91 -Note- 909 - Distortionon
41 1 81 -Note- 303/1 - Compressoron
42 1 85 -Note- 303/2 - Compressoron
43 1 89 -Note- 808 - Compressoron
44 1 93 -Note- 909 - Compressoron
45 1 78 -Note- 303/1 - Mix on
46 1 82 -Note- 303/2 - Compressoron
47 1 86 -Note- 808 - Compressoron
48 1 90 -Note- 909 - Compressoron



Channel/Controller Range Description

49 1 94 0 - 127 PCF Pattern
50 1 95 0 - 127 PCF-Mode (LP/HP)
51 1 96 0 - 127 PCF-Frequency
52 1 97 0 - 127 PCF-Q
53 1 98 0 - 127 PCF Amount
54 1 99 0 - 127 PCF Decay
55 1 100 0 - 127 Delay Step
56 1 101 0 - 127 Triplet Mode
57 1 102 0 - 127 Delay pan
58 1 103 0 - 127 Delay Feedback
59 1 104 0 - 127 Distortion Shape
60 1 105 0 - 127 Distortion Amount
61 1 106 0 - 127 Compressor Ratio
62 1 107 0 - 127 CompressorThreshold
63 1 108 0 - 127 Shuffle
64 1 7 0 - 127 Master - Level



ROM-Preset 3

Configuration 2 / A

„RM1x / SU-700 - Filter, Decay + Pitch"

Channel/Controller Range Description

01 1 74 0 - 127 Cutoff Channel 1
02 2 74 0 - 127 Cutoff Channel 2
03 3 74 0 - 127 Cutoff Channel 3
04 4 74 0 - 127 Cutoff Channel 4
05 5 74 0 - 127 Cutoff Channel 5
06 6 74 0 - 127 Cutoff Channel 6
07 7 74 0 - 127 Cutoff Channel 7
08 8 74 0 - 127 Cutoff Channel 8
09 9 74 0 - 127 Cutoff Channel 9
10 10 74 0 - 127 Cutoff Channel 10
11 11 74 0 - 127 Cutoff Channel 11
12 12 74 0 - 127 Cutoff Channel 12
13 13 74 0 - 127 Cutoff Channel 13
14 14 74 0 - 127 Cutoff Channel 14
15 15 74 0 - 127 Cutoff Channel 15
16 16 74 0 - 127 Cutoff Channel 16

 17 1 71 0 - 127 Resonance Channel 1
18 2 71 0 - 127 Resonance Channel 2
19 3 71 0 - 127 Resonance Channel 3
20 4 71 0 - 127 Resonance Channel 4
21 5 71 0 - 127 Resonance Channel 5
22 6 71 0 - 127 Resonance Channel 6
23 7 71 0 - 127 Resonance Channel 7
24 8 71 0 - 127 Resonance Channel 8
25 9 71 0 - 127 Resonance Channel 9
26 10 71 0 - 127 Resonance Channel10
27 11 71 0 - 127 Resonance Channel11
28 12 71 0 - 127 Resonance Channel 12
29 13 71 0 - 127 Resonance Channel 13
30 14 71 0 - 127 Resonance Channel 14
31 15 71 0 - 127 Resonance Channel 15
32 16 71 0 - 127 Resonance Channel 16

33 1 75 0 - 127 EG Decay 1
34 2 75 0 - 127 EG Decay 2
35 3 75 0 - 127 EG Decay 3
36 4 75 0 - 127 EG Decay 4
37 5 75 0 - 127 EG Decay 5
38 6 75 0 - 127 EG Decay 6
39 7 75 0 - 127 EG Decay 7
40 8 75 0 - 127 EG Decay 8
41 9 75 0 - 127 EG Decay 9
42 10 75 0 - 127 EG Decay 10
43 11 75 0 - 127 EG Decay 12
45 13 75 0 - 127 EG Decay 13
46 14 75 0 - 127 EG Decay 14
47 15 75 0 - 127 EG Decay 15
48 16 75 0 - 127 EG Decay 16

49 1 7 0 - 127 Volume Channel 1
50 2 7 0 - 127 Volume Channel 2
51 3 7 0 - 127 Volume Channel 3
52 4 7 0 - 127 Volume Channel 4
53 5 7 0 - 127 Volume Channel 5
54 6 7 0 - 127 Volume Channel 6
55 7 7 0 - 127 Volume Channel 7
56 8 7 0 - 127 Volume Channel 8
57 9 7 0 - 127 Volume Channel 9
58 10 7 0 - 127 Volume Channel 10
59 11 7 0 - 127 Volume Channel 11
60 12 7 0 - 127 Volume Channel 12
61 13 7 0 - 127 Volume Channel 13
62 14 7 0 - 127 Volume Channel 14
63 15 7 0 - 127 Volume Channel 15
64 16 7 0 - 127 Volume Channel 16



Configuration 2 / B

„RM1x + SU-700 - Effect Sends + Volume"

Channel/Controller Range Description

01 1 94 0 - 127 Effect Send-3 Channel 1
02 2 94 0 - 127 Effect Send-3 Channel 2
03 3 94 0 - 127 Effect Send-3 Channel 3
04 4 94 0 - 127 Effect Send-3 Channel 4
05 5 94 0 - 127 Effect Send-3 Channel 5
06 6 94 0 - 127 Effect Send-3 Channel 6
07 7 94 0 - 127 Effect Send-3 Channel 7
08 8 94 0 - 127 Effect Send-3 Channel 8
09 9 94 0 - 127 Effect Send-3 Channel 9
10 10 94 0 - 127 Effect Send-3 Channel 10
11 11 94 0 - 127 Effect Send-3 Channel 11
12 12 94 0 - 127 Effect Send-3 Channel 12
13 13 94 0 - 127 Effect Send-3 Channel 13
14 14 94 0 - 127 Effect Send-3 Channel 14
15 15 94 0 - 127 Effect Send-3 Channel 15
16 16 94 0 - 127 Effect Send-3 Channel 16

 17 1 93 0 - 127 Effect Send-2 Channel 1
18 2 93 0 - 127 Effect Send-2 Channel 2
19 3 93 0 - 127 Effect Send-2 Channel 3
20 4 93 0 - 127 Effect Send-2 Channel 4
21 5 93 0 - 127 Effect Send-2 Channel 5
22 6 93 0 - 127 Effect Send-2 Channel 6
23 7 93 0 - 127 Effect Send-2 Channel 7
24 8 93 0 - 127 Effect Send-2 Channel 8
25 9 93 0 - 127 Effect Send-2 Channel 9
26 10 93 0 - 127 Effect Send-2 Channel 10
27 11 93 0 - 127 Effect Send-2 Channel 11
28 12 93 0 - 127 Effect Send-2 Channel 12
29 13 93 0 - 127 Effect Send-2 Channel 13
30 14 93 0 - 127 Effect Send-2 Channel 14
31 15 93 0 - 127 Effect Send-2 Channel 15
32 16 93 0 - 127 Effect Send-2 Channel 16

33 1 91 0 - 127 Effect Send-1 Channel 1
34 2 91 0 - 127 Effect Send-1 Channel 2
35 3 91 0 - 127 Effect Send-1 Channel 3
36 4 91 0 - 127 Effect Send-1 Channel 4
37 5 91 0 - 127 Effect Send-1 Channel 5
38 6 91 0 - 127 Effect Send-1 Channel 6
39 7 91 0 - 127 Effect Send-1 Channel 7
40 8 91 0 - 127 Effect Send-1 Channel 8
41 9 91 0 - 127 Effect Send-1 Channel 9
42 10 91 0 - 127 Effect Send-1 Channel 10
43 11 91 0 - 127 Effect Send-1 Channel 11
44 12 91 0 - 127 Effect Send-1 Channel 12
45 13 91 0 - 127 Effect Send-1 Channel 13
46 14 91 0 - 127 Effect Send-1 Channel 14
47 15 91 0 - 127 Effect Send-1 Channel 15
48 16 91 0 - 127 Effect Send-1 Channel 16

49 1 PB+95 0 - 127 Pitch Channel 1
50 2 PB+95 0 - 127 Pitch Channel 2
51 3 PB+95 0 - 127 Pitch Channel 3
52 4 PB+95 0 - 127 Pitch Channel 4
53 5 PB+95 0 - 127 Pitch Channel 5
54 6 PB+95 0 - 127 Pitch Channel 6
55 7 PB+95 0 - 127 Pitch Channel 7
56 8 PB+95 0 - 127 Pitch Channel 8
57 9 PB+95 0 - 127 Pitch Channel 9
58 10 PB+95 0 - 127 Pitch Channel 10
59 11 PB+95 0 - 127 Pitch Channel 11
60 12 PB+95 0 - 127 Pitch Channel 12
61 13 PB+95 0 - 127 Pitch Channel 13
62 14 PB+95 0 - 127 Pitch Channel 14
63 15 PB+95 0 - 127 Pitch Channel 15
64 16 PB+95 0 - 127 Pitch Channel 16



 ROM-Preset 4

Controller 1 - 127 / 0  (Midichannel 1)
