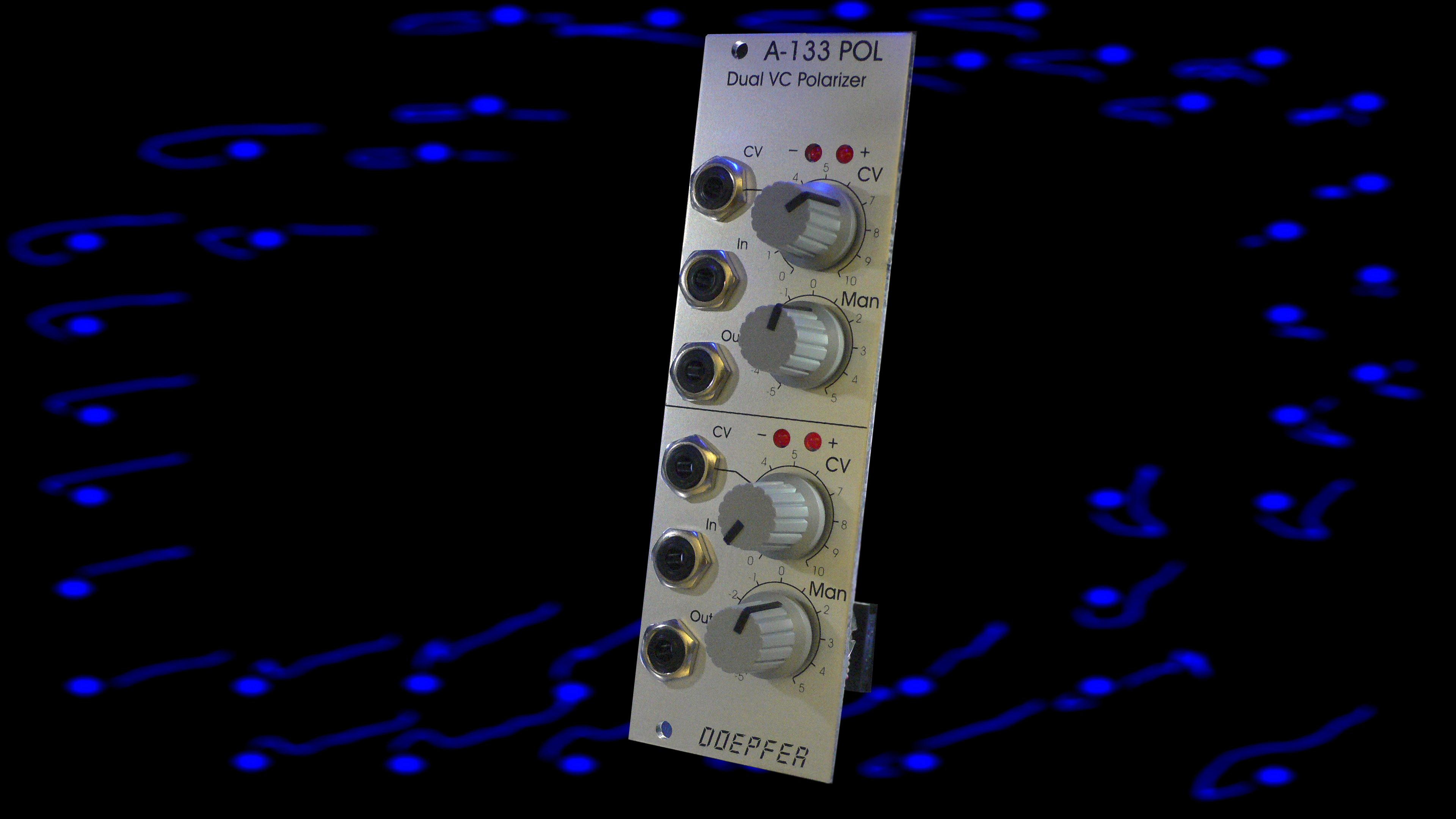

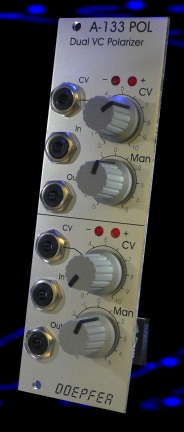

A-133 Dual Voltage Controlled Polarizer
Auslauftyp  - Verkauf solange Vorrat reicht ! / Running out - sale while stocks last !
Ersatz-Modul / replacement: A-133-2

Patch tips with A-133 from Navs:
http://navsmodularlab.blogspot.com/2010/01/patch-tips-2-doepfer-133-vc-polarizer.html


http://navsmodularlab.blogspot.com/2011/08/ring-mod-round-up.html


click to enlarge

A-133 ist ein zweifacher, spezieller spannungsgesteuerter Verstärker, der sowohl positive wie auch negative Verstärkungen zulässt. Unter negativer Verstärkung wird in diesem Zusammenhang die Invertierung des Eingangssignals verstanden. Die Hauptanwendung des Moduls ist die Verarbeitung von analogen Steuersignalen, wie z.B. ADSR oder LFO, das Modul kann aber auch im Audiobereich eingesetzt werden (z.B. als Waveshaper oder "Kurvenform-Veränderer", siehe Patch-Beispiele weiter unten).

Der Verstärkungsbereich beträgt ca. -2.5....0....+2.5 (andere Verstärkungsbereiche auf Wunsch gegen geringen Aufpreis, z.B. -1...+1 oder -5...+5). Die Verstärkung ist sowohl manuell (Man-Regler) als auch über einen externen Steuereingang mit Abschwächer (CV) einstellbar. Die aktuelle Verstärkungseinstellung wird mit 2 Leuchtdioden angezeigt, wobei getrennte Anzeigen für positive und negative Verstärkung vorhanden sind (keine Signalanzeige, sondern Anzeige der Verstärkung, ähnlich wie beim A-134).
Ein anderes Modul mit Polarisierungsfunktion ist der Polarizing Mixer A-138c.

Die deutsche Bedienungsanleitung ist als PDF-Datei auf unserer Website verfügbar: A133_anl.pdf

Technische Hinweise zur Änderung der Verstärkung

Die Gesamtverstärkung des A-133 wird bestimmt durch die Widerstände R18 (obere Einheit) und R32 (untere Einheit). Ab Werk sind 270k bestückt. Verringert man den Wert eines der Widerstände verringert sich dadurch auch die Verstärkung der betreffenden Einheit. Bei einem Wert von beispielsweise 100k (exakter Wert wäre 270k/2,5 = 108k) statt 270k verringert sich der Verstärkungsbereich auf ca. -1 ... +1 (statt -2.5 ... +2.5), bei einem Wert von 560k (exakter Wert 2*270k = 540k) erhöht sich die Verstärkung auf ca. 5.


A-133 is a special dual voltage controlled amplifier that enables both positive and negative amplifications. Negative amplification means in this context that the signal is inverted. The main application of the module is the processing of control voltages, e.g. ADSR or LFO but the module can be used also for audio applications (e.g. as a waveshaper, see patch examples below).

The amplification range is about  -2.5....0....+2.5 (other amplification ranges for small additional charges, e.g. -1...+1 or -5...+5). Amplification can be adjusted manually (Man control) and by an external control voltage with attenuator (CV). The present amplification is displayed with two LEDs: one for positive and one for negative amplifications (not a signal display but amplification diplay, similar to A-134).
Another module with polarizing function is the Polarizing Mixer A-138c.

For more detailed information please look at the English user's manual A133_man.pdf

Technical notes concerning the change of the amplification

The overall amplification of the A-133 is defined by the resistors R18 (upper unit) and R32 (lower unit). The factory value is 270k for both. Lowering the value of  the resistor reduces the amplification of the unit in question, increasing the value of the resistor increase the amplification of the unit in question. For example 100k (exact value 108k) reduces the amplification range to about -1 ... +1 (instead of -2.5 ... +2.5),  560k (exact value 2*270k = 540) increases the amplification range to about -5 ... +5.


Breite/Width: 8TE / 8HP / 40.3 mm
Tiefe/Depth: 50 mm (gemessen ab Frontplatten-Rückseite / measured from the rear side of the front panel)
Strombedarf/Current:
+30mA (+12V) / -20mA (-12V)

Preis/Price: Euro 80.00 Auslauftyp  - Verkauf solange Vorrat reicht ! / Running out - sale while stocks last !
The price in US$ depends upon the exchange rate between Euro and US$ at the payment day.
