USB64
nicht mehr lieferbar / no longer available

Universelle MIDI-Steuer-Elektronik mit 64 Eingängen,
Midi- und USB-Interface

Universal MIDI Control Electronics with 64 inputs,
Midi and USB interface

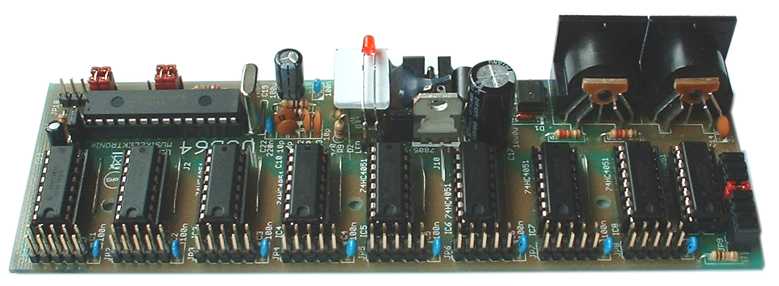

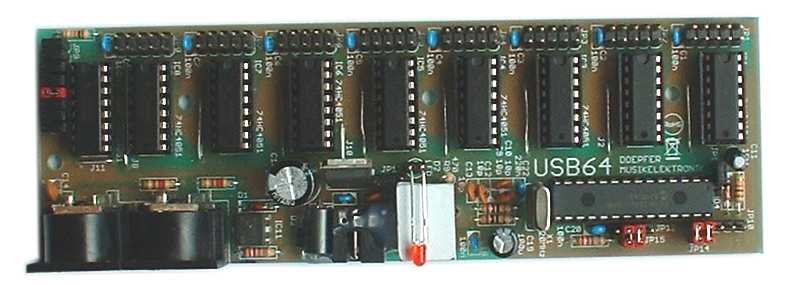

verschiedene Ansichten der Leiterplatte different views of the pc board

Anwendungsbeispiele von Kunden / application examples of customers

https://www.amazona.de/leser-artikel/doepfer-usb-64/

https://www.amazona.de/leser-artikel/midicontroller-diy/

https://www.amazona.de/community/doepfer-usb-64/



Youtube-Video hierzu


Stichpunkte:
  • 64 Eingänge, wahlweise analog (0...+5V, z.B. durch Anschluss von Dreh- oder Schiebepotentiometern, wie Pocket Electronic) oder digital (z.B. durch Anschluss von Tastern oder Schaltern, wie CTM64)
  • im Analog-Modus werden Midi-Control-Change-Befehle erzeugt, Auflösung: 7 Bit (Midi-Datenbereich 0-127)
  • im Digital-Modus werden Note-On/Off- oder Program-Change-Befehle erzeugt
  • Anschluss der Eingänge über acht zehnpolige Stiftleisten (gleiche Belegung wie bei Pocket Electronic), auf die zehnpolige Flachbandkabel mit passenden Gegenstücken aufgesteckt werden. Die Flachbandkabel werden mitgeliefert (ca. 30 cm lang) und sind am anderen Ende offen, um hier die gewünschten Elemente anzuschließen.
  • USB und Midi-Interface (Midi-Out und Midi-In)
  • die am Midi-Eingang eingehenden Daten werden zu den vom USB64 erzeugten Daten gemerged und über Midi-Out und USB ausgegeben (gültig für alle USB64 ab ca. Mitte 2010, bei älteren USB64 war das nicht der Fall, der alte Prozessor kann jedoch gegen den neuen Typ ausgewechselt werden, der Preis für einen neuen Prozessor beträgt 25,00 Euro + Versandkosten).
  • Stromversorgung wahlweise über USB oder Steckernetzteil (7-15V DC/ min. 100mA) bei reinem Midi-Betrieb ohne USB (automatische Wahl)
  • Auf der Leiterplatte befindet sich eine Netzteil-Buchse (5,5 mm Außen-Durchmesser / 2,1 mm Innen-Durchmesser, Plus-Pol innen)
  • Grundsätzliche Parameter (z.B. Midi-Kanal, Betriebsart analog/digital, Midi Noten/Controller-Bereich 0-63 oder 64-127 etc.) werden per Jumper eingestellt, näheres hierzu in der Einbau- und Bedienungsanleitung
  • Update-Möglichkeit der USB64 Firmware über USB (z.B. im Falle eines Firmware-Updates, hierzu ist ein PC mit mind. Windows XP SP2 und USB-Interface erforderlich), sobald ein Update verfügbar sein sollte kann dieser von unserer Download-Seite heruntergeladen werden.
  • Anzeige-LED
  • Abmessungen der Leiterplatte: ca. 160 H x 55 B x 30 H mm
  • Lieferumfang: USB64 Leiterplatte (bestückt und getestet), Steckernetzteil (230V-Version mit Eurostecker, 7-15V DC min. 100mA), USB-Kabel (A-B), acht 10-polige Flachbandkabel mit aufgepressten Buchsen, jeweils ca. 30 cm lang
  • Die Einbau- und Bedienungsanleitungen sind ist als pdf-Dateien verfügbar:
    USB64_Anleitung_V1.pdf
    USB64_Anleitung_V1.3.pdf
  • Hinweis: USB64 ist nicht zum Anschluss von Endlos-Drehgebern (oft auch als Endlos-Potentiometer bezeichnet). Hierzu ist nur Dial Electronic geeignet, da diese Bedienungselemente in einer völlig anderen Art und Weise arbeiten und es sich nicht um echte Potentiometer handelt.
  • Firmware - Update über USB möglich
  • USB kompatibel mit USB Device Class for Midi Device bzw. damit getestete Betriebssystem
Headwords:
  • 64 inputs, alternatively analog (0...+5V, e.g. generated by rotary or fader potentiometers, same as Pocket Electronic) or digital (e.g. generated by momentary or toggle switches/buttons, same as CTM64)
  • in analog mode Midi control change messages are generated, resolution 7 bit (Midi data range 0-127)
  • in digital mode note on/off or program change messages are generated
  • inputs via eight pin headers with 10 pins each (same pinout as Pocket Electronic), 10 pin ribbon cables with suitable female connectors are plugged to the pin headers, the ribbon cables are included with the USB64 (about 30 cm each), the other side of each cable is open to connect the desired controls
  • USB and Midi interface (Midi out & Midi in)
  • the incoming Midi data are merged to the data generated by the USB64 and both are transmitted to Midi out and USB (valid for all USB64 manufactured later than ~ summer 2010, earlier USB64 can be updated by replacing the main processor by the new type, the price for the new USB64 processor is Euro 25.00 plus shipping).
  • power supply alternatively via USB or external power supply (7-15V DC / min. 100 mA) during pure Midi operation without USB (automatic selection)
  • The pc board is equipped with a standard low voltage connector ( 5.5 mm outer diameter and 2.1 mm inner diameter, polarity: plus = center, minus = ring).
  • basic parameters (e.g. analog/digital mode, Midi channel, Midi note/program change/control change range 0-63 or  64-127 etc.) selectable via jumper
  • update of the USB64 firmware via USB (e.g. in case of a firmware update, for this a PC with Windows XP and USB interface is required), as soon as an update is available it can be downloaded from our download page
  • control LED
  • measures of the pc board: about 160 length x 55 width x 30 height (measures in mm)
  • scope of supply: USB64 pc board (completely assembled and tested), eight 10 pin ribbon cables with female headers (about 30 cm each), USB cable (A-B type),
    only within Europe: power supply (230V version with European mains connector, 7-15V DC / min. 100 mA
    if you order from outside Europe please ask your local dealer if a power supply is included
  • For detailed information the user's manual is available as pdf file.
  • Remark: USB64 is not suitable for rotary encoders (sometimes even called endless potentiometers). For this appliction the Dial Electronic has to be used as these controls are no real potentiometers.
  • Firmware update over USB
  • USB compatible with USB Device Class for Midi Device and tested operating systems
USB64 ist ein sogenanntes OEM-Produkt. Für den Einbau bzw. den Anschluss des Fertigmoduls sind elektronische Grundkenntnisse erforderlich ! Falls Sie über keine oder nur geringe Elektronik-Erfahrung verfügen raten wir vom Kauf und dem Aufbau des USB64 ab !
Wir weisen auch darauf hin, dass wir nur im Orginalzustand befindliche Module zurücknehmen oder im Falle eines Defektes als Garantiefall behandeln können. Module, an denen bereits vom Kunden gelötet wurde, können nicht zurückgenommen oder auf Garantie repariert werden!
USB64 is a so-called OEM or DIY product. Electronic basic knowledge is required to install the board. If you have no or only little experience with electronics we recommend not to order and not to install the USB64.
We cannot take back modules or carry out warranty repairs of modules that became defective because of wrong installation or wrong connection of the controlling elements or voltages. We also cannot take back or carry out warranty repairs of modules or cables which have been soldered by the user.
Preis:
Euro 155,00 incl. Netzteil und Kabelmaterial wie oben aufgeführt
nicht mehr lieferbar
rice:
Euro 155.00 incl. cables and power supply as specified above
The price in US$ depends upon the exchange rate between Euro and US$ at the payment day.
no longer available
