A-100PBK A-100
Unterbau mit Tastatur |
|||||||
|
|||||||

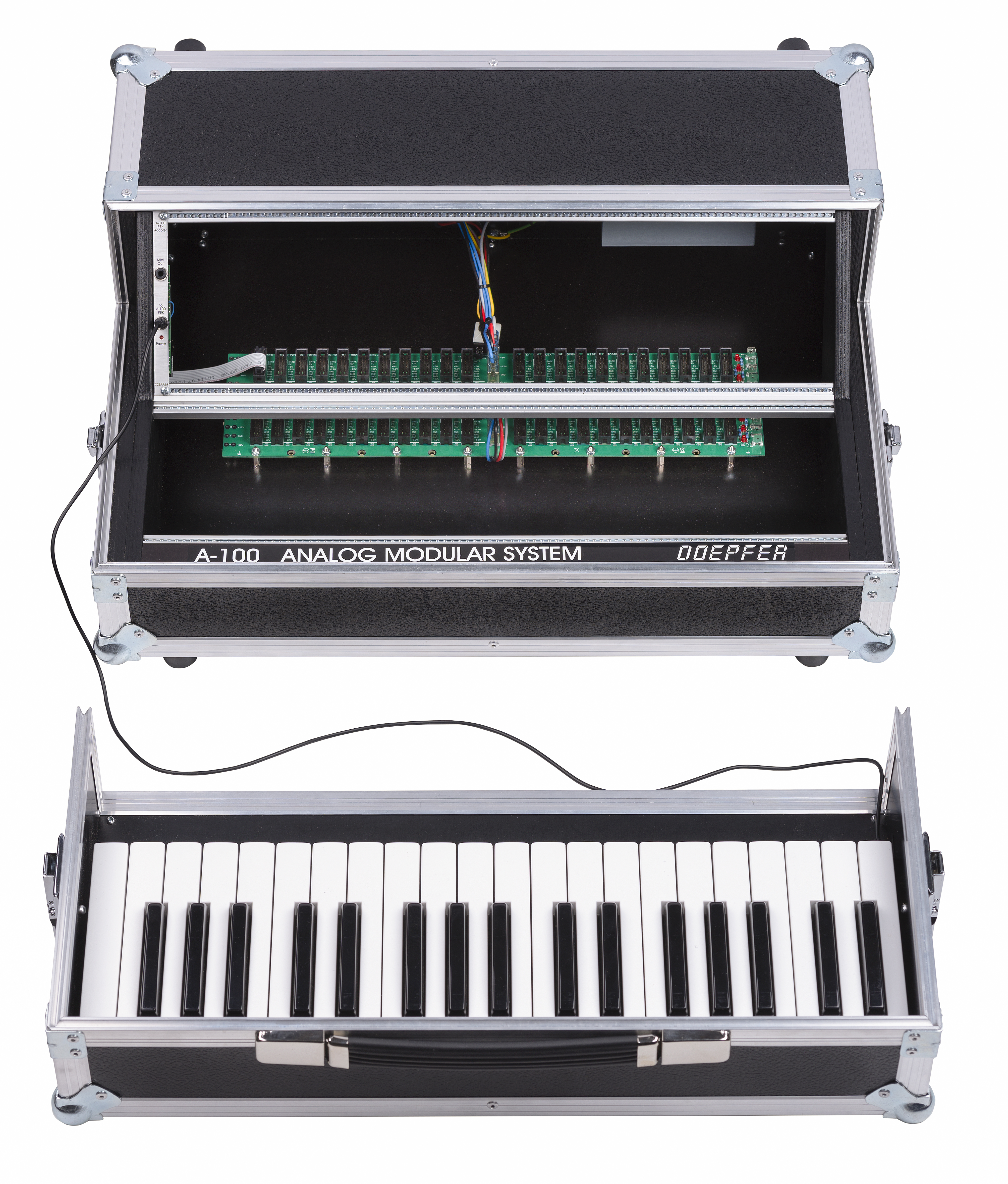

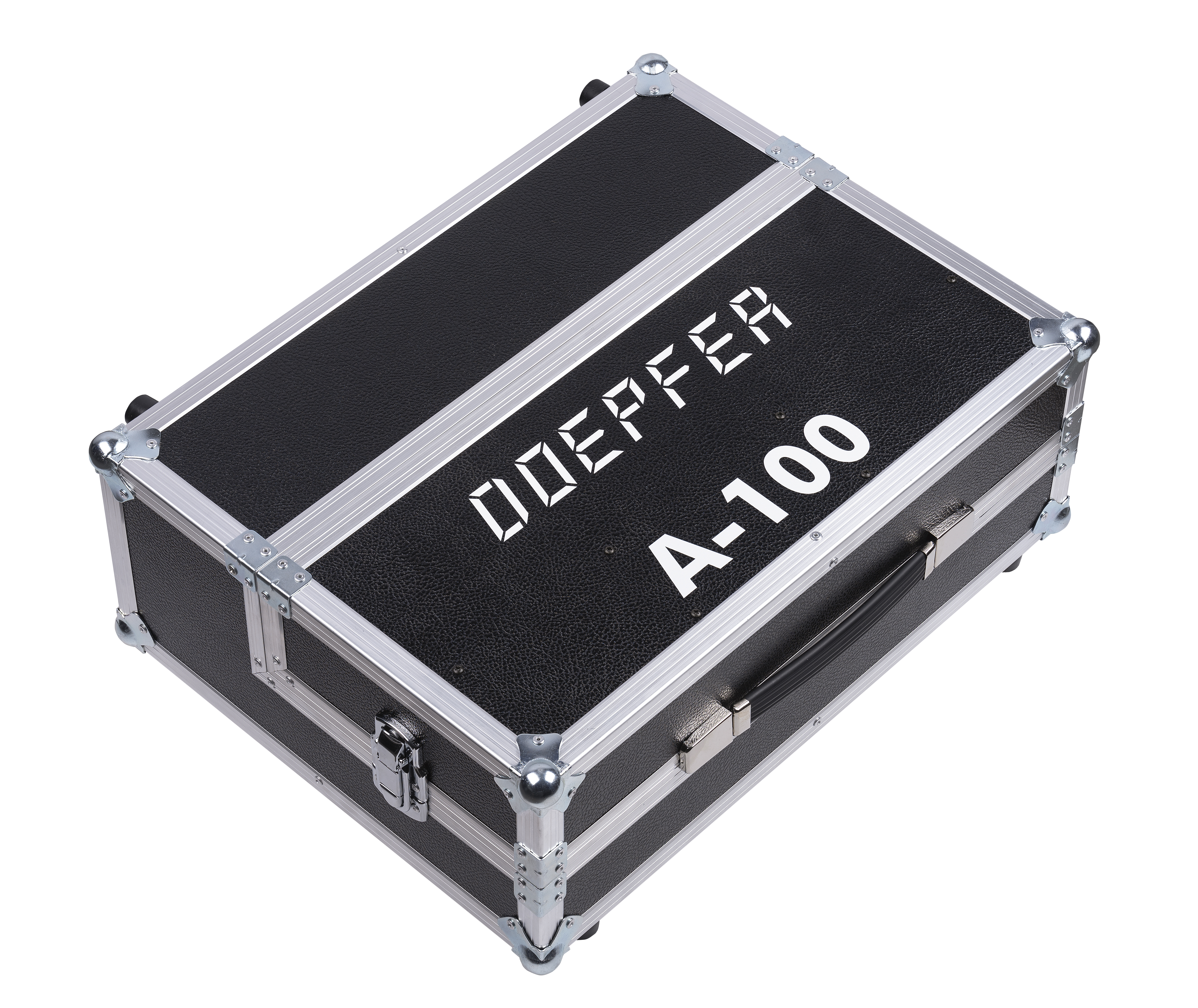

A-100PBK ist nahezu baugleich zum normalen
A-100 Unterbau A-100PB. Zusätzlich
ist jedoch in der Abdeckung ein Tastatur mit
37 Tasten mit monophonem Aftertouch eingebaut (Fatar 37TP/9 mit leichter
Gewichtung und monophonem Aftertouch). Von der
Tastatur führt ein 3,5mm-Stereo-Klinkenkabel zum dem 2TE-Anschluss-Modul,
welches an geeigneter Stelle im oberen oder unteren Bereich des A-100
Unterbaus montiert wird. Hier steht die Tastatur-Information in Form eines
Midi-Signals zur Verfügung (3,5 mm-Stereo-Buchse nach neuer Midi-Norm,
Midi-Kanal 1, tiefste Taste = Midi-Tonhöhe 36, Note on/off und Aftertouch). Hierüber kann die
Verbindung zu einem polyphonen (A-190-5) oder
monophonen CV/Gate-Interface (z.B. A-190-3, A-190-4)
hergestellt werden. Mit Hilfe von 2 Steckbrücken kann zwischen den beiden
gängigen Normen bei 3,5 mm-Midi-Steckverbindungen gewählt werden. Ein
Adapterkabel von 3.5mm auf DIN5 wird mitgeliefert.
Abmessungen:
außen: ca. 555 B x 210 H x 420 T mm Gewicht (ohne Module): ca. ? kg Anzahl der Busplatinen: 2 Maximale Stromabgabe: +12V/2000 mA, -12V/1200mA, +5V/4000mA Wichtige Hinweise:
|

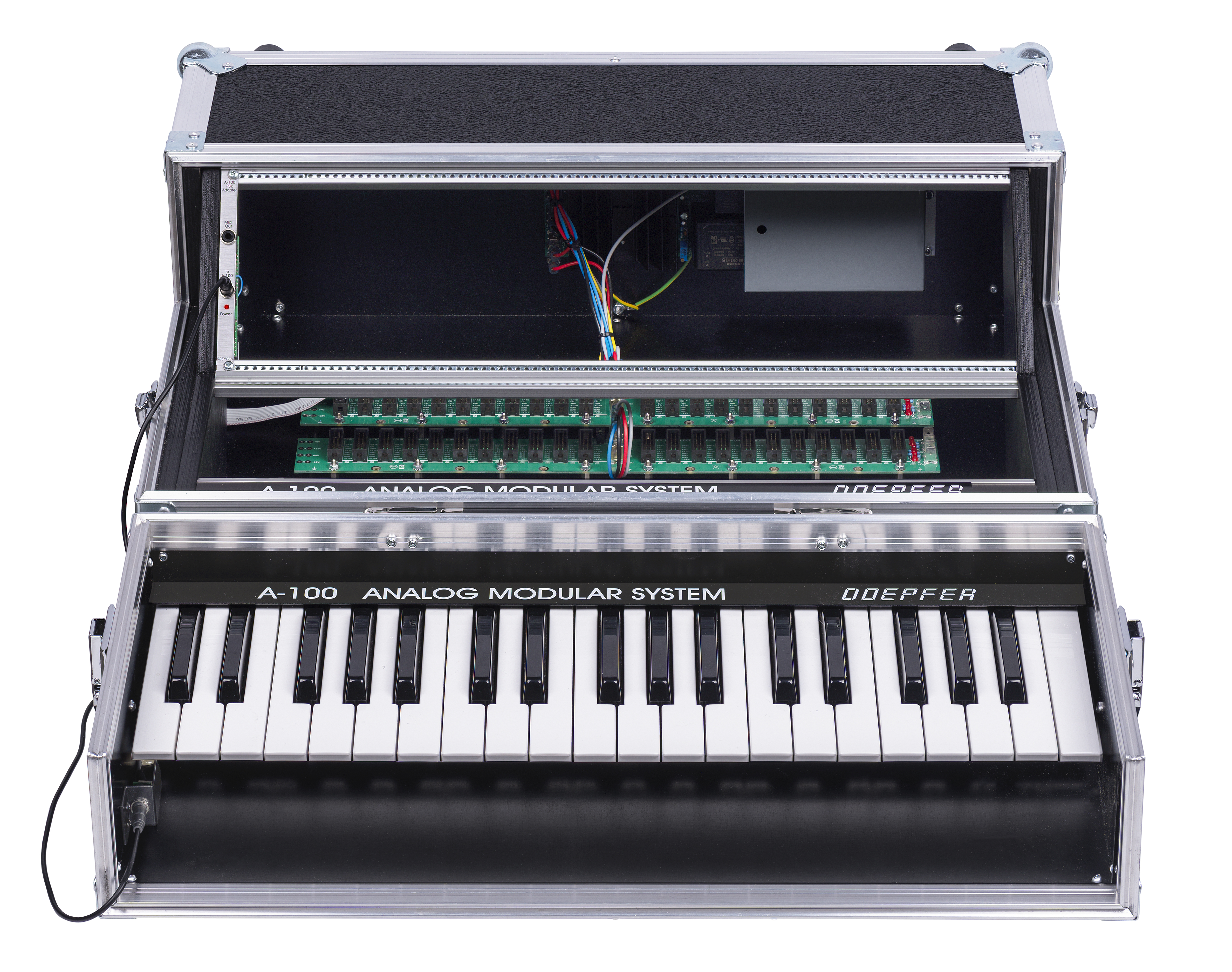

A-100PBK is very
similar to the standard A-100 Base A-100PB.
In addition the A-100PBK is equipped with a 37 keys keyboard (Fatar 37TP/9
semi weighted with monophonic aftertouch) mounted into the lid of the case. The keyboard is wired to
a 2HP connection module via a 3.5mm stereo cable. The connection module is
mounted at a suitable position in the upper or lower row of the A-100PBK.
The connection module has a midi output available (3.5 mm stereo midi
standard) which outputs the midi data of the keyboard (midi channel 1,
lowest note number 36, note on/off and aftertouch). A polyphonic (A-190-5) or
monophonic CV/Gate interface (e.g. A-190-3, A-190-4)
can be connected to the midi output of the connection module. By means of
two jumpers one can choose between the two midi standards for 3.5 mm midi
connectors. A 3.5mm-to-DIN5 adapter cable is included with the A-100PBK.
Measures: Quantity of bus boards: 2 Weight (without modules): about ? kg Maximum Output Current: +12V/2000 mA, -12V/1200mA, +5V/4000mA Important notes:
|
||||||
|
|||||||
A-100PBK-Anleitung: A-100PBK_Manual_d_e.pdf | A-100PBK user manual: A-100PBK_Manual_d_e.pdf | ||||||
|
|||||||
Preis
/ Price: Euro 1200.00 The price in US$ depends upon the exchange rate between Euro and US$ at the payment day. |
