A-143-3 Quad LFO


click to enlarge

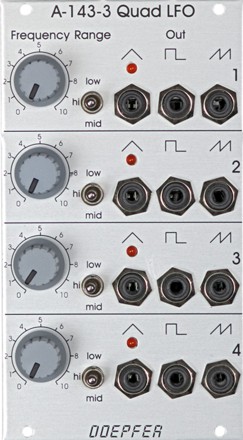

Das Modul A-143-3 ist ein preiswerter vierfacher Modulationsoszillator (LFO = low frequency oscillator). Ebenso wie die anderen Module der A-143-Serie (A-143-1 und A-143-2), kein besonders "aufregendes" Modul sondern ein "Arbeitstier" für Modulationsanwendungen. Das Modul enthält 4 getrennte, einfache Modulationsoszillatoren. Jeder Oszillator verfügt über die 3 Kurvenformen Dreieck, Rechteck und steigender Sägezahn, wobei der Sägezahnausgang mit der doppelten Frequenz der beiden anderen Ausgänge arbeitet. Die Frequenz ist in drei Bereichen umschaltbar und reicht von weniger als 1/30 Hz (d.h. eine Schwingung dauert ca. eine halbe Minute) bis in den unteren Audiobereich (ca. 4-5 kHz).
Die Ausgangspegel liegen bei ca. +/-5V (d.h. ca. 10Vss).

Falls Sie andere Kurvenformen oder weitergehende LFO-Funktionen benötigen (z.B. Reset, regelbare Kurvenform, Spannungssteuerung der Frequenz), so stehen Ihnen die Module  A-145, A-146 und A-147 zur Verfügung.

Zur genaueren Information steht die englischsprachige Bedienungsanleitung zur Verfügung: A1433_man.pdf

In Ermangelung freier Modulnummern werden alle mehrfachen Modulationsquellen unter der Gruppennummer A-143 zusammengefasst (A-143-1 Quad AD, A-143-2 Quad ADSR, A-143-3 Quad LFO usw.).

Module A-143-3 is a low-cost four-fold modulation oscillator, often called LFO (low frequency oscillator). Like the other modules of the A-143 series (A-143-1 and A-143-2) not a very "exciting" module, just a bread-and-butter device and a simple demon for work. The module contains four simple LFOs. Each LFO is equipped with three waveform outputs: triangle, rectangle and rising sawtooth. The frequency of the sawtooth output is twice the frequency of the other outputs. A three-way switch is used to select one of three frequency ranges mid-low-high, spanning from about two cycles per minute at the lowest, to moderate audio frequency at the highest (about 5 kHz).
The output levels are about +/-5V (i.e. about 10Vpp).

If other waveforms or additional LFO features are required (e.g. reset input, adjustable waveform, voltage controlled frequency) the LFO modules A-145, A-146 and A-147 are available.

A detailed description of the module can be found in the user's manual A1433_man.pdf

As we have not sufficient module numbers left, all multiple modulation sources will be collected in the A-143-x group (A-143-1 Quad AD, A-143-2 Quad ADSR, A-143-3 Quad LFO and so on).




Breite/Width: 14TE / 14HP / 70.8 mm
Tiefe/Depth: 40 mm (gemessen ab der Rückseite der Frontplatte / measured from the rear side of the front panel)
Strombedarf/Current:
+70mA (+12V) / -60mA (-12V)

Preis/price: Euro 160.00
The price in US$ depends upon the exchange rate between Euro and US$ at the payment day.
