Midi-Basspedal-Elektronik
MBP25

Midi Basspedal Electronics
MBP25

Klicken Sie auf das Bild zur Vergrößerung / click to enlarge

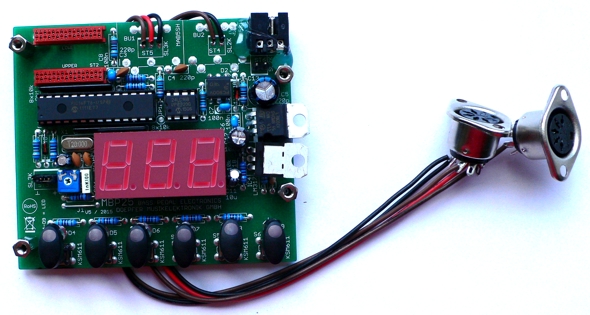

(das Foto zeigt die Elektronik mit aufgesteckten Kappen / the picture  shows the electronics with attached caps)

Klicken Sie auf das Bild zur Vergrößerung / click to enlarge

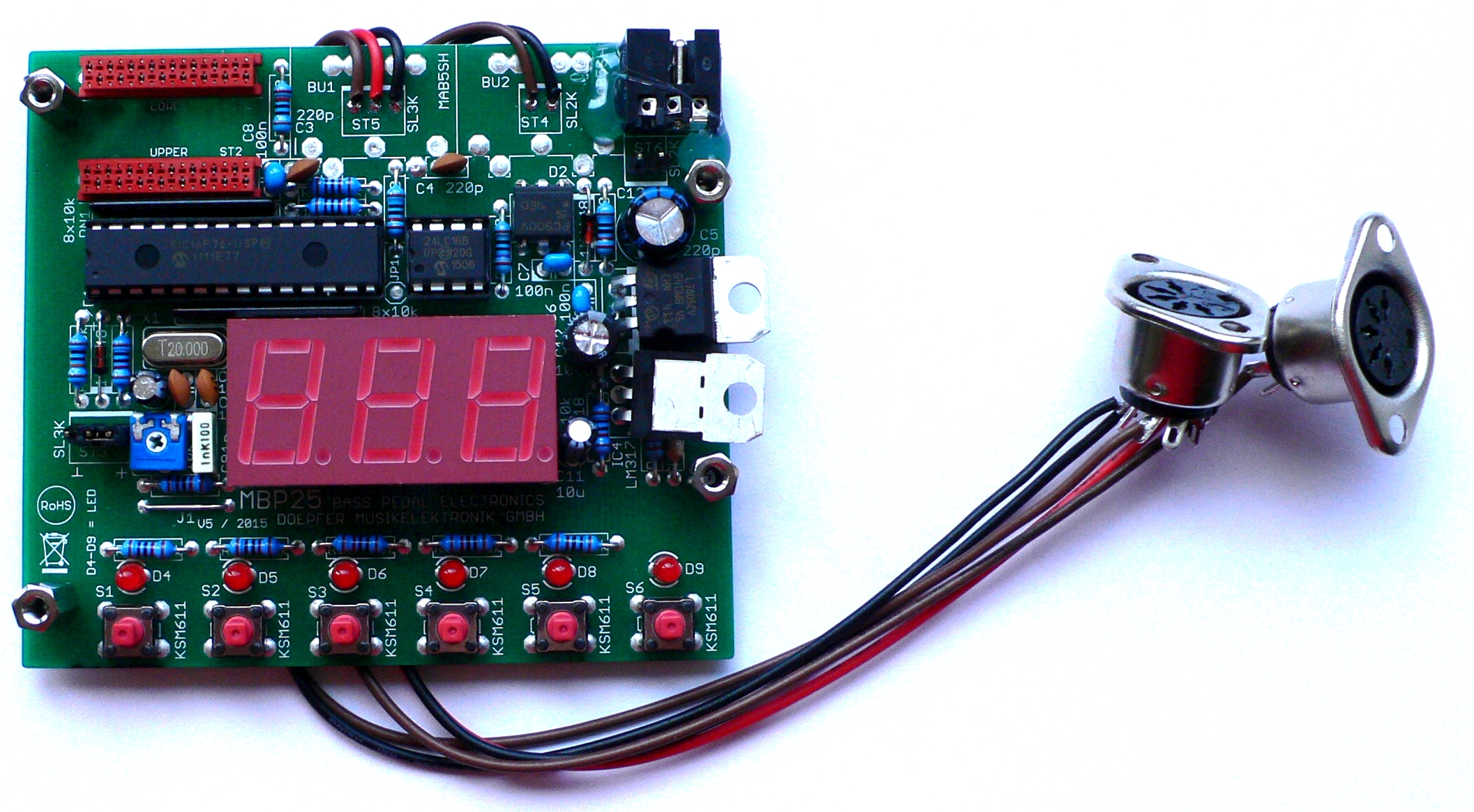

(das Foto zeigt die Elektronik ohne aufgesteckte Kappen / the picture  shows the electronics without attached caps)

Hinweis: Seit Anfang 2015 wird MBP25 mit einer neuen, ovalen Version von Tastern ausgeliefert, da die bisher verwendeten rechteckigen Taster nicht mehr lieferbar sind. Die obenstehenden Fotos zeigen die neue Version der Kappen (links mit aufgesteckten Kappen, rechts ohne die Kappen, die Kappen werden lose mitgeliefert).

Note: From about 2015 MBP25 is equipped with another type of momentary buttons as the so far used rectangle buttons are no longer available.  The above pictures show the new version (left picture with attached caps, right picture without caps, the caps are enclosed unattached)

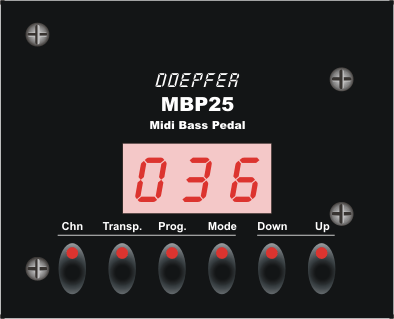

Frontplatte zu MBP25
incl. roter Displayscheibe und vier schwarzen M3-Schrauben und Abstandsrollen für die Montage der Frontplatte an der Leiterplatte
Die Displayscheibe muss vom Kunden noch an der Frontplatte festgeklebt werden.
Material: 1 mm Stahlblech, ca. 100 x 81 mm, schwarz beschichtet, weiß bedruckt
vier 3mm-Montagelöcher passend zur Montage der Leiterplatte an der Frontplatte sind vorhanden.
Löcher für die Montage der Frontplatte an einer Unterlage oder an einem Gehäuse müssen vom Kunden nachträglich gebohrt werden,
da die Lage und Durchmesser für diese Löcher davon abhängen wie die Frontplatte befestigt werden soll
Auch das hierfür erforderliche Montagematerial muss von Kunden beschafft werden
(z.B. geeignete Holzschrauben oder Blechschrauben oder andere Schrauben)
Auch das Verkleben der Frontplatte mit dem Unterbau ist denkbar.
Das folgende Dokument erklärt die Montage der Frontplatte an der Leiterplatte: MBP25_Frontplattenmontage.pdf

Front Panel for MBP25
incl. red display cover and four black M3 screws and distance rolls for mounting the front panel on the pc board
The display cover has to be glued by the customer at the front panel.
made of 1 mm steel plate, about 100 x 81 mm, black coated with white printing
four 3mm holes for mounting the pc board on the front panel are available
holes for mounting the front panel on a base or housing have to be drilled by the customer
because the positions and diameters of these holes depend upon the mechanical construction
Even the mounting material for this purpose has to be added by the customer
(e.g. suitable woodscrews or self-tapping screws or other screws)
It's also possible to stick the front panel to the housing/base.
This document explains the mounting of the front panel to the pc board: MBP25_Frontplattenmontage.pdf


Klicken Sie auf das Bild zur Vergrößerung / click to enlarge
Anwendungsbeispiel für ein 25-Tasten-Pedal mit Gehäuse (zusammengesetzt aus MBP25 und zwei 13-Tasten-Pedalen)
wir bieten die Version im Gehäuse nicht an !
Application example for a 25-keys pedal
(composed from MBP25 and two 13-key pedals)
Anwendungsbeispiele von Kunden / application examples of customers

Leider stellt unser Lieferant (Fatar) nur ein nicht-dynamischse Basspedal mit 13 Tasten her (PD/3), nicht jedoch mit 25 oder mehr Tasten. Da wir sehr oft nach einer Lösung für Basspedale mit 25 Tasten gefragt werden, haben wir eine Elektronik unter der Bezeichnung MBP25 entwickelt, mit deren Hilfe zwei nicht-dynamische 13-Tasten-Pedale (PD/3) zu einem preiswerten 25-Tasten-Pedal kombiniert werden können. Die Elektronik kann auch mit nur einem 13-Tasten-Pedal PD/3 kombiniert zu werden. Die Abbildung oben zeigt ein Anwendungsbeispiel, bei der zwei Pedale PD/3 zu einem großen Pedal mit 25 Tasten kombiniert und in einem schwarz lackierten Holzgehäuse untergebracht wurden (in dieser Form bei uns nicht erhältlich).

Wir bieten daher eine Eigenbau/ OEM-Variante für ein 25-Tasten-Pedal an (ohne Gehäuse). Diese besteht aus zwei 13-Tasten- Basspedalen PD/3 und der Elektronik MBP25. Eines der beiden Pedale muss um eine Taste gekürzt werden, da eine der "C"-Tasten doppelt vorhanden ist. Die PD/3 sind mit einem Kunststoffrahmen ausgestattet. Daher kann eines der Pedale mit vertretbarem Aufwand durch Absägen gekürzt werden. In der Anleitung zum MBP25 ist das Kürzen und die Verdrahtung des Pedals beschrieben. Es ist etwas mechanisches Geschick und passendes Werkzeug erforderlich (Säge, Schraubenzieher, Lötkolben). Die beide Pedale können dann auf einer gemeinsamen Bodenplatte montiert und in ein passendes Gehäuse (z.B. aus lackiertem Holz - wie oben abgebildet) eingebaut werden. Die Bodenplatte und ggf. das Gehäuse muss vom Kunden selbst angefertigt werden. Diese Teile sind nicht im Lieferumfang enthalten und werden von uns auch nicht angeboten !

Die Elektronik ist auch für den Anschluss eines dritten Pedals mit max. 8 Tasten vorbereitet, so dass theoretisch Basspedale mit bis zu 33 Tasten möglich sind. In diesem Fall muss bei zwei Pedalen die oberste "C"-Tasten abgesägt werden. Das technische Dokument, dass die Verdrahtung eines dritten Pedals beschreibt, finden Sie hier: MBP25_mit_3_Pedalen.pdf. Das Spezialkabel ist auch als Ersatzteil zu 40,00 Euro erhältlich.

Hier die Eigenschaften des MBP25:

  • lieferbar in drei Varianten:

    • nur Elektronik

    • Elektronik mit einem 13-Tasten-Basspedal Fatar PD/3 und Verbindungskabel

    • Elektronik mit zwei 13-Tasten-Basspedalen Fatar PD/3 und Verbindungskabeln

  • 6 Bedientaster zum Einstellen der gewünschten Parameter (Midi-Kanal, Transponierung, Betriebsart usw.)

  • schwarze, rechteckige Bedientaster (ca. 12 x 22 mm) mit integrierten Leuchtdioden, Maße des gesamten Bedienfeldes ca. 76 x 22 mm

  • seit Anfang 2015 kommen stattdessen 6 ovale Taster mit integrierter LED zum Einsatz, da die bisher verwendeten Taster nicht mehr lieferbar sind (siehe obenstehende Fotos). Die Kappen werden lose mitgeliefert und können vom Kunden je nach Anwendung aufgesteckt werden oder nicht.

  • 3-stelliges LED-Display (ca. 19 x 38 mm) zur Werte-Anzeige

  • zwei Steckverbinder zum Anschluss von zwei 13-Tasten Basspedalen, pin-kompatibel zu PD/3 von Fatar
  • voll polyphon
  • Midi-In und Midi-Out, die Midi-Buchsen sind über 30 cm lange Kabel mit der Elektronik verbunden und können an der gewünschten Stelle des Gehäuses befestigt werden
  • Die am Midi-Eingang eintreffenden Daten werden zu den Daten, die MBP25 erzeugt, hinzugemischt ("gemerged") um das MBP25 z.B. einem Midi-Keyboard nachschalten zu können
  • Netzeingangsbuchse auf der Platine und zusätzlich eine 2-polige Stiftleiste, um auch den Netzeingang an einer anderen Stelle des Gehäuses zu montieren
  • an eine 3-polige Stiftleiste kann zusätzlich ein Dreh- oder Schieberegler angeschlossen werden, der Lautstärke-Informationen (Midi Volume) sendet. Auch der Anschluss eines Fußreglers (z.B. FP5) ist hier möglich.Mit Hilfe eines Trimmpotentiometers kann der Spannungsbereich, der dem Midi-Datenbereich 0...127 zugeordnet ist, von ca. 0...+3,5V bis 0...+5V eingestellt werden. Dies ist bei Fußreglern erforderlich, die nicht den vollen Drehbereich des eingebauten Potentiometers ausnutzen.

Den 6 Bedientasten sind folgende Funktionen zugeordnet:

  • 1 Midi-Kanal: wählbar mit den Up/Down-Tasten von 1 bis 16

  • 2 Transponierung:  wählbar mit den Up/Down-Tasten in Oktav-Schritten, wobei im Display die Midi-Notennummer der tiefsten Taste angezeigt wird. Mögliche Werte: 0, 12, 24, 36, 48, 60.

  • 3 Programmwechsel: hier werden mit den Up/Down-Tasten der Bedieneinheit Programmwechsel-Befehle gesendet, auf den Tasten des Basspedals kann dabei weiterhin normal gespielt werden (im Gegensatz zu der Betriebsart Programmwechsel, siehe unter 4)

  • 4 Betriebsart: folgende drei Betriebsarten sind wählbar:

    • Noten-Modus: das ist die für ein Basspedal übliche Betriebsart, bei der Midi-Notenbefehle gesendet werden. Es wird dabei der in Menü 1 eingestellte Midi-Kanal und die in Menü 2 eingestellte Transponierung verwendet. Der für die Notenbefehle verwendete Velocity-Wert kann in einem Konfigurationsmodus vom Kunden auf einen festen Wert eingestellt und jederzeit geändert werden.
    • Program-Change-Modus: hier werden mit den Pedaltasten Midi-Programmwechsel-Befehle gesendet, die untersten 10 Basspedal-Tasten ("C" bis "A") entsprechen dabei den Nummern 0 bis 9 in der Art eines Taschenrechners, wobei die gewählte Nummer im Display angezeigt wird. Die Taste "B" arbeitet als Löschtaste (Delete) und mit "H" wird der Programmwechsel- Befehl abgesendet (Enter)
    • Realtime-Modus: hier liegen auf den drei Pedaltasten "C", "D" und "E" die Midi-Funktionen Start, Continue und Stop, alle anderen Tasten arbeiten normal (d.h. sie senden Noten-Befehle)
  • 5 Down: Erniedrigung des aktuell im Display angezeigten Wertes

  • 6 Up: Erhöhung des aktuell im Display angezeigten Wertes

  • MBP25 verfügt über einen nicht-flüchtigen Speicher. Die Änderung eines jeden Wertes wird sofort gespeichert und bleibt auch nach dem Ausschalten des Gerätes erhalten. Bei der nächsten Inbetriebnahme werden die vorhergehenden Werte für Midi-Kanal, Transponierung und zuletzt gewählter Programm-Nummer voreingestellt.

  • Die Stromversorgung erfolgt über ein externes Steckernetzteil (7-15V Gleichspannung / min. 100 mA). Innerhalb Europas ist dieses im Lieferumfang enthalten (230V-Version mit Eurostecker).

  • Netzteil-Buchse auf der Leiterplatte: 5,5 mm Außen-Durchmesser / 2,1 mm Innen-Durchmesser, Plus = innen (Stift), Minus = außen (Ring)

  • Abmessungen der Leiterplatte: ca. 82 x 73 x 25  (L x B x H in mm)

  • Abmessung eines Basspedals: ca. 530 x 380 x 95 (L x T x H in mm)

  • Abmessung zwei Basspedale: ca. 980 x 380 x 95 (L x T x H in mm)

  • Zur näheren Information steht die Einbau- und Bedienungsanleitung als pdf-Datei zur Verfügung: MBP25_Anleitung.pdf

Unfortunately our supplier (Fatar) does not offer bass pedals with 25 or more keys but only a version with 13 keys (PD/3). As many customers have been asking for a basspedal with 25 keys we decided to develop an electronic kit that can be used to connect two basspedals with 13 keys each (PD/3) to obtain a 25 key basspedal in a very economic way. Of course MBP25 can be used also in combination with one PD/3 only. The above picture shows one possibility how two PD/3 pedals can be combined to a 25 key pedal and built into a black varnished wooden case (the case is not available from us).

We offer a DIY/OEM version for a 25 key basspedal (without case). It is made of two 13 keys pedals PD/3 and the MBP25 electronics. One of the two pedals has to be shortended by one key as one of the "C" keys is redundant. Fortunately the PD/3 pedals use a plastic frame and can be shortened with passable effort. In the user's manual the shortening and wiring of the two bass pedals is described. A bit mechanical skills and suitable tools are required (soldering iron, saw, screwdriver). Both pedals have to be mounted on a common base plate and a suitable case (e.g. made of varnished wood  - as shown above) can be added. The base plate and the case are not included and have to be added by the customer. These parts are not available from us.

The MBP25 electronic kit is already prepared to connect a third pedal with up to 8 keys so that even bass pedals with up to 33 keys are possible. In this case the upper "C" of two pedals has to be removed. The following technical document describes how to wire the third bass pedal: MBP25_three_pedals.pdf. The special cable is also available as a spare part (Euro 40.00).

These are the features of the MBP25:

  • three versions available:

    • elektronic kit only

    • elektronic kit with one 13-key bass pedal Fatar PD/3 and connection cable

    • elektronic kit with two 13-key bass pedals Fatar PD/3 and connection cables

  • 6 black rectangle momentary buttons (about 12 x 22 mm) with integrated LEDs (similar to MKE) to adjust the parameters (e.g. Midi channel, transpose, mode), measures of the complete button area about 76 x 22 mm

  • since 2015 MBP25 is equipped with another type of momentary buttons as the so far used buttons are no longer available (see above pictures). The electronics is delivered witout attached caps. The caps are enclosed unattached.

  • 3-digit LED display (about 19 x 38 mm) for parameter display

  • two connectors for basspedals (compatible to Fatar PD/3)

  • fully polyphonic

  • Midi In, Midi Out (connected via 30 cm long cables to enable the mounting of the sockets at the desired position)

  • The data appearing at the Midi in are merged to the data generated by the MBP25. Consequently the MBP25 can be connected to a Midi keyboard to add the basspedal data to the keyboard data.

  • power supply socket on board, in addition a 2-pin connector is available to connect another power supply socket near the Midi sockets

  • a 3-pin connector is available to connect a rotary or fader potentiometer that transmits Midi volume, even a foot controller (e.g. FP5) can be connected.

The 6 buttons are used to control these parameters:

  • 1 Midi channel: the up/down buttons are used to adjust the midi channel in the range 1...16

  • 2 Transpose:  the up/down buttons are used to adjust the transposition in octave intervals, the display shows the midi note number that is assigned to the lowest key ("C"), these values are possible: 0, 12, 24, 36, 48, 60.

  • 3 Program change: in this mode the up/down buttons are used to transmit midi program change messages while the keys of the bass pedal can be used to play in the usual way (i.e. transmitting midi note messages) - in contrast to the program change mode described below (see 4)

  • 4 Operating mode:

    • Note mode: this is the usual play mode. The bass pedal keys are used to transmit Midi note on/off message on the Midi channel adjusted in menu 1 and the transposition adjusted in menu 2. The velocity value can be adjusted by the customer in a special configuration mode.
    • Program change mode: in this mode the bass pedal keys are used to transmit Midi program change messages, the first 10 keys ("C" to "A") correspond to the numbers 0 to 9 like a pocket calculator, the selected number is shown in the display. The "Bb" key has delete function (i.e. set to zero) and the "B" key transmits the currently displayed program change number (enter function)
    • Realtime mode: in this mode the keys "C", "D" and "E" are used to transmit the midi messages start, continue and stop, the other keys have normal function (i.e. they transmit midi note messages).
  • 5 Down: decrement of the value shown in the display

  • 6 Up: increment of the value shown in the display

  • MBP25 has a non-volatile memory for the parameters Midi channel, transpose and program number. After the next power on the previous values are called up.

  • An external power supply (7-15VDC@min. 100 mA) is used. Within Europe the wall outlet power supply adapter for 230V mains voltage and European type mains plug is included with the MBP25. In other countries the power supply has to be purchased by the user in his country. If there is a Doepfer representative in your country please ask the representative if the power supply is included in your country.

  • The pc board is equipped with a standard low voltage connector ( 5.5 mm outer diameter and 2.1 mm inner diameter, polarity: plus = center, minus = ring).

  • Dimensions of the pc board: about 82 mm (length) x 73 (width) x 25 mm (height)

  • Dimension of one bass pedal: about 530 mm (length) x 380 mm (depth) x 95 mm (height)

  • Dimension of two bass pedals: about 980 mm (length) x 380 mm (depth) x 95 mm (height)

  • The user's guide is available as pdf file on our web site: MBP25_manual.pdf

MBP25 ist ein sogenanntes OEM-Produkt. Für den Einbau bzw. den Anschluss des Fertigmoduls sind elektronische Grundkenntnisse erforderlich ! Falls Sie über keine oder nur geringe Elektronik-Erfahrung verfügen raten wir vom Kauf und dem Aufbau des MBP25 ab !
Wir weisen auch darauf hin, dass wir nur im Orginalzustand befindliche Module zurücknehmen oder im Falle eines Defektes als Garantiefall behandeln können. Module, an denen bereits vom Kunden gelötet wurde, können nicht zurückgenommen oder auf Garantie repariert werden!
MBP25 is a so-called OEM or DIY product. Electronic basic knowledge is required to install the board. If you have no or only little experience with electronics we recommend not to order and not to install the MBP25.
We cannot take back modules or carry out warranty repairs of modules that became defective because of wrong installation or wrong connection of the controlling elements or voltages. We also cannot take back or carry out warranty repairs of modules or cables which have been soldered by the user.
Wichtiger Hinweis: MBP25 ist nur für das FATAR-Basspedal PD/3 geeignet ! Es passt nicht zu anderen Basspedalen von FATAR oder anderer Hersteller! Falls MBP25 an ein anderes Basspedal angeschlossen werden soll, so muss dieses identisch zu einem, zwei oder drei Fatar PD/3 verschaltet werden (gleiche Diodenmatrix wie PD/3, gleiche Micromatch-Steckverbinder wie PD/3 etc.).  Hierzu sind ausreichend elektronische Kenntnisse und Löterfahrung unbedingt erforderlich. Anfängern raten wir dringend davon ab, den Anschluss eines anderen Basspedals zu versuchen. In der Anleitung ist das Schaltbild des PD/3 enthalten. Important note: The MBP25 is suitable only for the Fatar basspedal PD/3. It is not suitable for other basspedals manufactured by Fatar or basspedals from other manufacturers ! If another bass pedal has to be connected to the MBP25 it has to be wired exactly as one, two or three Fatar PD/3 (i.e. same kind of diode matrix, same type of micromatch connectors). This requires sufficient experience in electronics and soldering. We disadvise beginners without experience to try to connect other pedals to the MBP25 ! The MBP25 user's manual contains the schematics of the Fatar PD/3.
Preise:
MBP25 Elektronik alleine (mit Steckernetzteil, ohne Basspedal und ohne Kabelverbindungen zu den Basspedalen): 75.00 Euro
MBP25 Elektronik mit einem Basspedale PD/3, mit Verbindungskabel zwischen MBP25 und PD/3, mit Steckernetzteil, ohne Bodenplatte, ohne Gehäuse etc. : 170.00 Euro
MBP25 Elektronik mit zwei Basspedalen PD/3, mit Verbindungskabeln zwischen MBP25 und PD/3, mit Steckernetzteil, ohne Bodenplatte, ohne Gehäuse etc.: 260.00 Euro
MBP25 Frontplattensatz: 40.00 Euro
MBP25
Spezial-Verbindungskabelsatz für MBP25 und drei Basspedale PD/3 (ca. 1x50cm 1x50+50cm, 16-polig): 40.00 Euro

Einzelne Verbindungskabel oder Kabelsätze für das Basspedal PD/3 finden Sie in der Preisliste im Abschnitt Ersatzteile.



Prices:
MBP25 elektronic kit only, including power supply, without bass pedal and without cables: Euro 75.00
MBP25 electronic kit with one bass pedal PD/3, cables to connect MBP25 and the bass pedal, power supply, without base plate and without case: Euro 170.00
MBP25 electronic kit with two basspedals PD/3, two cables to connect MBP25 and the basspedals, power supply, without base plate and without case: Euro 260.00
MBP25 front panel kit: Euro 40.00
MBP25
special connection cable set for MBP25 and three bass pedals PD/3 ( ~ 1x50cm, 2x50+50cm 16 pins): Euro 40.00

Single connection cables and cable sets for the bass pedal PD/3 can be found in the price list in the spare parts section.

The price in US$ depends upon the exchange rate between Euro and US$ at the payment day.


MBP25-Foto mit der alten Version der Taster / MBP25 picture with the old version of the buttons
Klicken Sie auf das Bild zur Vergrößerung / click to enlarge


Verwandte Produkte: Related products:



Anwendungsbeispiele
Die abgebildeten Beispiele sind in dieser Form nicht bei uns erhältlich !
Application examples
The controllers are not available as ready built devices from us !
