MKE
Universal Midi Keyboard Electronics

MKE Frontansicht mit Frontplatte
MKE front view with front panel

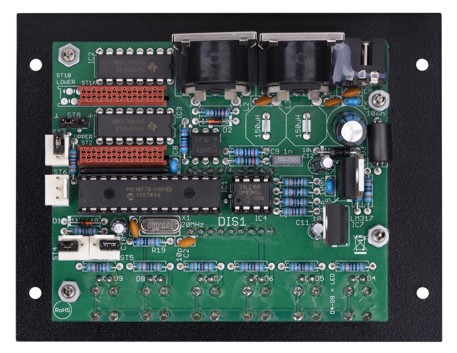

MKE Rücksicht mit Frontplatte
MKE rear view with front panel

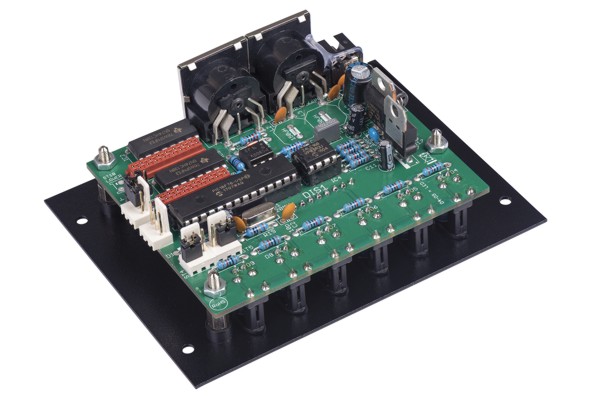

MKE Rücksicht (schräg) mit Frontplatte
MKE rear view with front panel

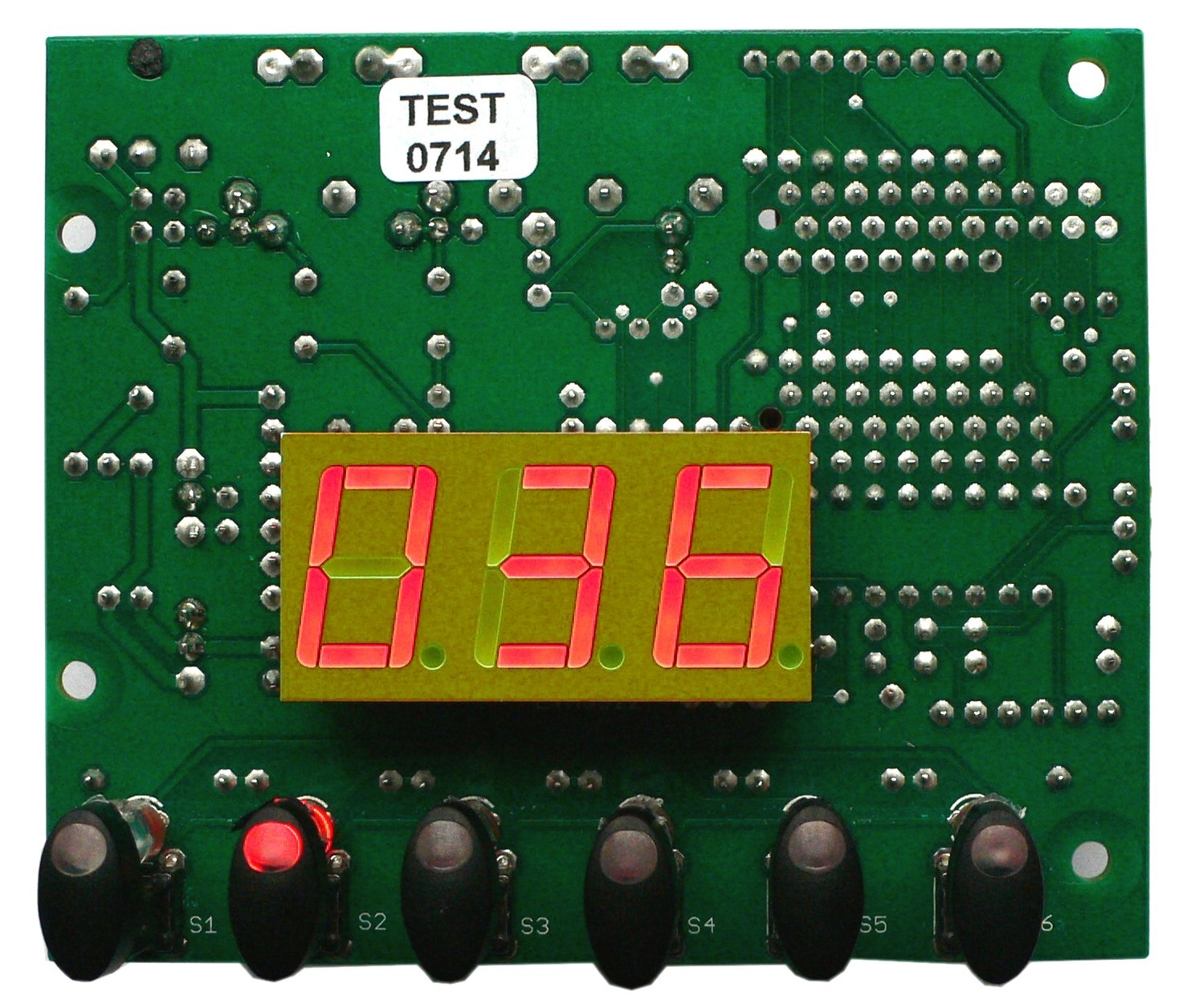

MKE Frontansicht ohne Frontplatte
MKE front view without front panel

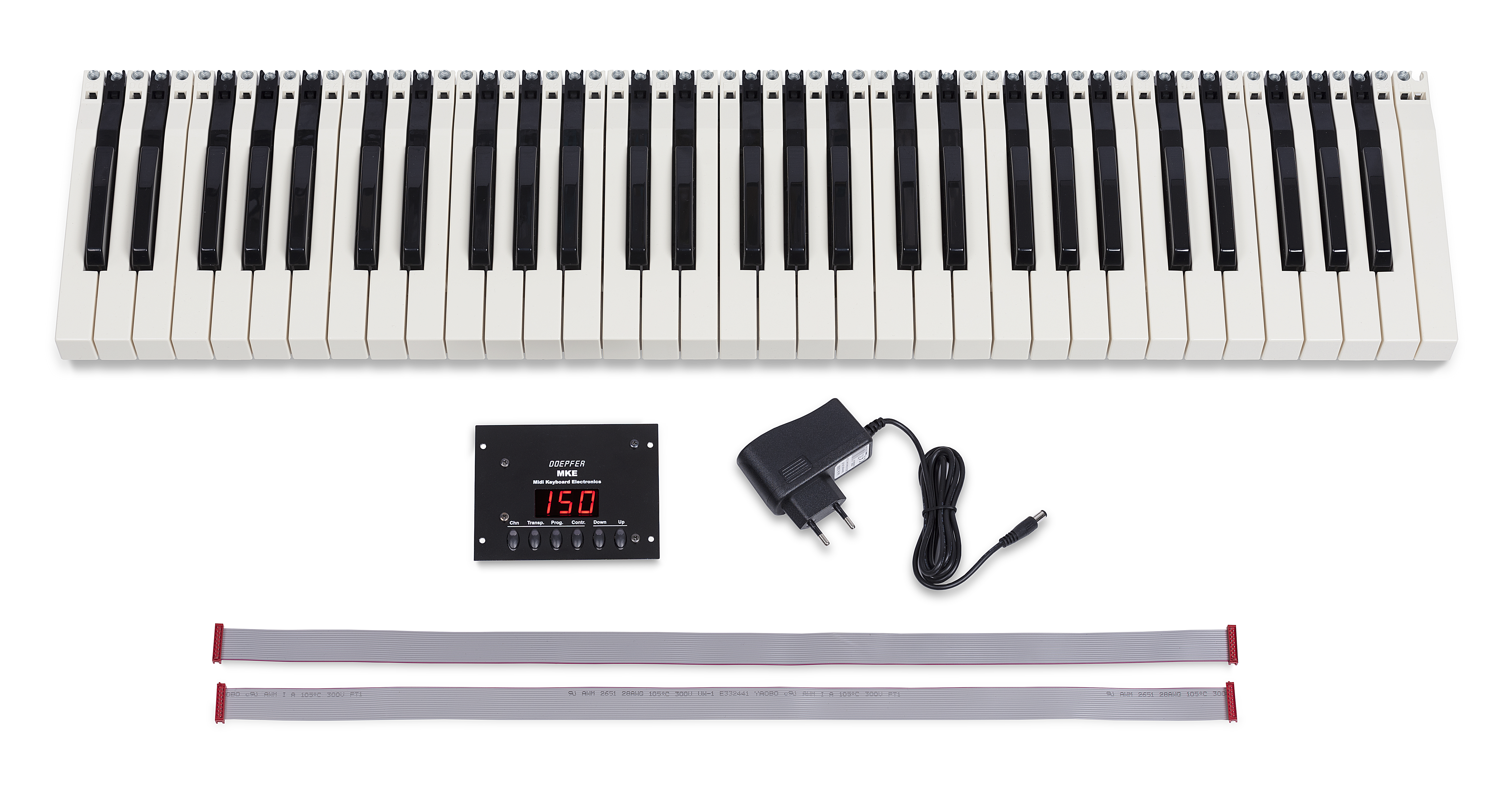

MKE-Komplettpaket / MKE complete package

Hinweis: Seit August 2014 wird MKE mit einer neuen, ovalen Version von Tastern ausgeliefert, da die bisher verwendeten rechteckigen Taster nicht mehr lieferbar sind.
Note: From about August 2014 MKE is equipped with another type of momentary buttons as the so far used momentary switches with rectangle buttons are no longer available.




Anwendungsbeispiele von Kunden / application examples of customers

MKE ist eine universelle Midi-Keyboard-Elektronik, die zum Aufbau kundenspezifischer Midi-Controller gedacht ist, bei denen auch eine Tastatur zu Einsatz kommen soll. In Verbindung mit unseren anderen Controller-Elektroniken Pocket Electronic, Dial ElectronicCTM64 und MTC64 kann ein Midi-Controller aufgebaut werden, der genau auf die Wünsche des Benutzers abgestimmt ist.

An MKE können folgende Einheiten angeschlossen werden:

  • Standard-Tastaturen des Herstellers FATAR mit 2, 3, 4 oder 5 Oktaven (z.B. die Tastatur-Typen TP6, TP/60...64, TP/7, TP/8 oder TP/9, Diodenmatrix-Typ "DF")

  • Pitch-Bend-Rad (spezielles Drehpotentiometer mit automatischer Rückstellung)

  • Modulations-Rad (spezielles Drehpotentiometer ohne automatische Rückstellung)

  • Hinweis: Aus technischen Gründen können nur die einzelnen Modulationsräder unserer Zubehörliste zusammen mit MKE verwendet werden, nicht jedoch der bis ca. 2016 lieferbare Modulationsrädersatz !

  • Schiebe- oder Drehpotentiometer für Lautstärke (Midi-Controller 7)

  • After-Touch-Sensor oder Buchse für Sustain-Pedal oder weiterer Schiebe- oder Drehpotentiometer für beliebigen Midi-Controller

Auf der Platine stehen folgende Bedien- und Anzeige-Elemente zur Verfügung:

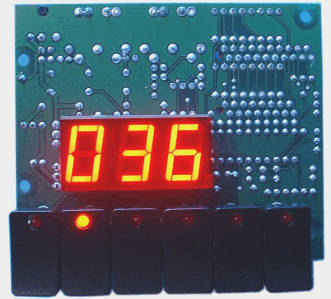

  • 6 schwarze, rechteckige Bedientaster (ca. 12 x 22 mm) mit integrierten Leuchtdioden, Maße des gesamten Bedienfeldes ca. 76 x 22 mm

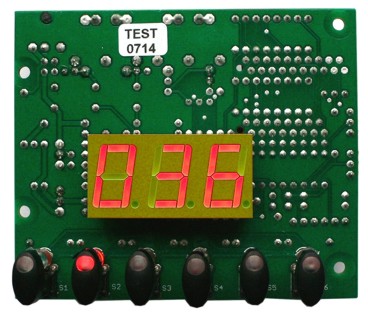

  • seit August 2014 kommen stattdessen 6 ovale Taster mit integrierter LED zum Einsatz (wie z.B. bei A-190-4 oder Dark Time rechts unten verwendet), da die bisher verwendeten Taster nicht mehr lieferbar sind.

  • 3-stelliges LED-Display (ca. 19 x 38 mm)

Den 6 Bedientasten sind folgende Funktionen zugeordnet:

  • Midi-Kanal 1...16

  • Transponierung in Oktav-Schritten

  • Program Change 0...127

  • Controller-Nummer 0...127 + After-Touch

  • Up (Erhöhung des aktuell im Display angezeigten Wertes)

  • Down (Erniedrigung des aktuell im Display angezeigten Wertes)

Zusätzlich kann zwischen dynamischem und nicht-dynamischen Betrieb gewählt werden, wobei im nicht-dynamischen Betrieb der gesendete (feste) Velocity-Wert einstellbar ist. Die Umsetzung der Anschlagdynamik im dynamischen Betrieb wurde für die Tastatur 61TP/9 angepasst. Bei Verwendung anderer Tastaturen kann das Dynamik-Verhalten abweichen. Es ist leider nicht möglich, das Dynamik-Verhalten an andere Tastaturen anzupassen.

MKE verfügt über einen nicht-flüchtigen Speicher. Bei der nächsten Inbetriebnahme werden die vorhergehenden Werte für Midi-Kanal, Transponierung, Programm-Nummer, Controller und dynamischer/nicht-dynamischer Betriebsart voreingestellt.

MKE ist mit Midi-In und Midi-Out ausgestattet. Die am Midi-Eingang eintreffenden Daten werden zu den Daten, die das MKE selbst generiert, hinzugefügt (Merge-Funktion). Somit können mehrere MKE kaskadiert oder mit anderen OEM-Controllern (z.B. Pocket Electronic, Dial ElectronicCTM64 , MTC64) kombiniert werden, um einen kundenspezifischen Midi-Controller zu bauen.

MKE ist nur als fertig aufgebaute und geprüfte Platine lieferbar. Die Platinengröße beträgt ca. L71 x B85 x H45 mm. Auf der Platine befinden sich 4 Löcher mit 3 mm Durchmesser zur Montage der Platine auf einer Unterlage oder Frontplatte (z.B. mit M3-Abstandsbolzen).

Bei allen MKE-Bestellungen bitte den gewünschte Tastaturtyp (2/3 oder 4/5 Oktaven) angeben. Dies ist erforderlich, da bei jeder Tastatur eine andere Art der Steckverbindung vorhanden ist und daher andere Verbindungskabel benötigt werden. Falls Sie selbst keine Tastatur besitzen, empfehlen wir die Tastatur, den Kabelsatz und MKE gleich zusammen zu bestellen, da Sie dann die alle Komponenten aufeinander abgestimmt geliefert bekommen. Die Verbindungskabel zur Tastatur sind nicht in MKE enthalten und müssen bei Bedarf zusätzlich bestellt werden müssen. Sie finden die Tastaturen und Kabel in unserer Preisliste bei den Ersatzteilen.

Ein Gehäuse wird nicht angeboten, da das MKE für den Einbau in ein Gehäuse zusammen mit der Tastatur und ggf. den anderen Controllern (Pocket Electronic etc., siehe oben) vorgesehen ist.

Die Stromversorgung erfolgt über ein externes Steckernetzteil (7-15V Gleichspannung / min. 100 mA). Innerhalb Europas ist dieses im Lieferumfang enthalten (230V-Version mit Eurostecker). Auf der Leiterplatte befindet sich eine Netzteil-Buchse (5,5 mm Außen-Durchmesser / 2,1 mm Innen-Durchmesser, Plus-Pol innen)

Falls Sie eine Tastatur an MKE anschließen wollen, so finden Sie passende Tastaturen und Kabelsätze bei Zubehör und Ersatzteile. Auch Modulationsräder, Kabelsätze zum Anschluss der Modulationsräder, des Volumenreglers und der Sustain-Buchse bzw. des Aftertouch-Sensors finden Sie hier. Die zugehörigen Preise finden Sie in unserer Preisliste im Abschnitt Ersatzteile oder wenden Sie sich an unseren Vertrieb (vertrieb@doepfer.de).

MKE ist ein sogenanntes OEM-Produkt. Für den Einbau bzw. den Anschluss des Fertigmoduls sind elektronische Grundkenntnisse erforderlich ! Falls Sie über keine oder nur geringe Elektronik-Erfahrung verfügen raten wir vom Kauf und dem Aufbau des MKE ab !

Wir weisen auch darauf hin, dass wir nur im Orginalzustand befindliche Module zurücknehmen oder im Falle eines Defektes als Garantiefall behandeln können. Module, an denen bereits vom Kunden gelötet wurde, können nicht zurückgenommen oder auf Garantie repariert werden!

Nähere Hinweise zum Anschluss anderer Tastaturen finden Sie unter Anschluss von Tastaturen an MKE.

MKE is an Universal Midi Keyboard Electronics to built custom-made Midi controllers that include a keyboard. Combining the MKE with our controller electronics Pocket Electronic, Dial ElectronicCTM64 or MTC64 allows the construction of an unique Midi controller that exactly meets the requirements of the user.

These units can be connected to MKE:

  • Standard keyboard manufactured by FATAR/Italy with 2, 3, 4 or 5 octaves (e.g. the keyboard types TP6, TP60...64, TP/7, TP/8 or TP/9, diode matrix type "DF")

  • Pitch bend wheel (special spring-loaded rotary potentiometer)

  • Modulation wheel (special rotary potentiometer)

  • Remark: Because of technical reasons only the single modulation wheels of our accessories list can be used in combination with MKE but not the modulation wheel set, which was available until about 2016 !

  • Rotary or fader potentiometer for loudness/volume control (Midi CC#7)

  • After touch sensor or socket for sustain switch or another potentiometer for any Midi controller

The MKE pc board has these controls available:

  • 6 black rectangle momentary buttons (about 12 x 22 mm) with integrated LEDs (measures of the complete button area about 76 x 22 mm)

  • since August 2014 MKE is equipped with another type of momentary buttons (same as used in A-190-4 or Dark Time) as the so far used buttons are no longer available.

  • 3-digit LED display (about 19 x 38 mm)

The 6 buttons are used to control these parameters:

  • Midi channel 1...16

  • Transpose (lowest note in octave intervals, 0-12-24-36-48-60)

  • Program change 0...127

  • Controller number 0...127 resp. After touch

  • Up (increment of the value shown in the display)

  • Down (decrement of the value shown in the display)

In addition one can select between dynamic and non-dynamic operation. In the non-dynamic mode the (fixed) velocity value can be adjusted. The velocity implementation in the dynamic mode has been optimized for the Fatar keybed 61TP/9. When other keybeds are used the dynamic behaviour may be not optimal. It's not possible to change the dynamic behaviour for other keybeds.

MKE has a non-volatile memory for the parameters Midi channel, transpose, program number, controller number and dynamic/non-dynamic mode. After the next power on the previous values are called up.

MKE is equipped with Midi In and Midi Out. The data appearing at the Midi in are merged to the data generated by the MKE. Consequently several MKE can be daisy-chained or combined with other OEM controllers (e.g. Pocket Electronic, Dial ElectronicCTM64 , MTC64) to built a custom-made Midi controller.

MKE is available only as an assembled and tested pc board. The pc board measures are about 71 mm (length) x 85 (width) x 45 mm (height). Four mounting holes with 3 mm diameter are available for mounting the pc board to a suitable base or front panel e.g. with distance sleeves or spacers and screws.

We also offer keybeds and cable sets that are suitable for MKE (see below or look into the price list in the spare parts section).

Please specify the type of keyboard that has to be connected to MKE (2/3 or 4/5 octaves). This is necessary as the keyboards have different types of connectors. If no specifications are made the MKE is delivered in the 4/5 octave version. If you have no keyboard available we recommend to order the keyboard together with the MKE as in this case all components (MKE, keyboard, cable set) can be harmonized. The cables leading to the keyboards are not included and have to be ordered in addition. You find these cables in our price list in the spare parts section.

We do not offer a suitable housing as this would have to be completely different for various combinations of keyboards and controlling elements.

An external power supply (7-15VDC@min. 100 mA) is used. The pc board is equipped with a standard low voltage connector ( 5.5 mm outer diameter and 2.1 mm inner diameter, polarity: plus = center, minus = ring). Within Europa the wall outlet power supply adapter for 230V mains voltage and European type mains plug is included with the MKE. In other countries the power supply has to be purchased by the user in his country. If there is a Doepfer representative in your country please ask the representative if the power supply is included in your country.

If you want to connect a keyboard to the MKE electronics later you find suitable keyboards and cable sets on the Accessories and Spare Parts page. Even wheels, cable sets for the wheels, volume potentiometer, sustain socket or after touch sensor are available as well. The corresponding prices can be found in the price list (spare parts section) or ask our sales office (sales@doepfer.de).

MKE is a so-called OEM or DIY product. Electronic basic knowledge is required to install the board. If you have no or only little experience with electronics we recommend not to order and not to install the MKE.

We cannot take back modules or carry out warranty repairs of modules that became defective because of wrong installation or wrong connection of the controlling elements or voltages. We also cannot take back or carry out warranty repairs of modules or cables which have been soldered by the user.

Details about the connection of other keyboards to MKE can be found here: Connecting keyboards to MKE.

MKE-Frontplattensatz:

incl. roter Displayscheibe und vier schwarzen M3-Schrauben und Abstandsrollen für die Montage der Frontplatte an der Leiterplatte
Die Displayscheibe muss vom Kunden noch an der Frontplatte festgeklebt werden.
Material: 1 mm Stahlblech, ca. 110 x 86 mm, schwarz beschichtet, weiß bedruckt
vier 3mm-Montagelöcher passend zur Montage der Leiterplatte an der Frontplatte sind vorhanden.
Löcher für die Montage der Frontplatte an einer Unterlage oder an einem Gehäuse müssen vom Kunden nachträglich gebohrt werden, da die Lage und Durchmesser für diese Löcher davon abhängen wie die Frontplatte befestigt werden soll
Auch das hierfür erforderliche Montagematerial muss von Kunden beschafft werden (z.B. geeignete Holzschrauben oder Blechschrauben oder andere Schrauben)
Das folgende Dokument erklärt die Montage der Frontplatte an der Leiterplatte (identisch zu MBP25): MBP25_Frontplattenmontage.pdf

MKE front panel kit:

incl. red display cover and four black M3 screws and distance rolls for mounting the front panel on the pc board
The display cover has to be glued by the customer at the front panel.
made of 1 mm steel plate, about 110 x 86 mm, black coated with white printing
four 3mm holes for mounting the pc board on the front panel are available
holes for mounting the front panel on a base or housing have to be drilled by the customer because the positions and diameters of these holes depend upon the mechanical construction
Even the mounting material for this purpose has to be added by the customer (e.g. suitable woodscrews or self-tapping screws or other screws)
This document explains the mounting of the front panel to the pc board (same as MBP25): MBP25_Frontplattenmontage.pdf

Preise:

MKE-Komplettpaket (MKE-Elektronik + Frontplattensatz + Tastatur 61TP/8O + Kabelsatz + 230V-Netzteil):  Euro 300.00

MKE-Elektronik Version für 4/5 Oktaven, ohne Tastatur, ohne Verbindungskabel zur Tastatur, mit Netzteil: 92,00 Euro
MKE-Elektronik Version für 2/3 Oktaven, ohne Tastatur, ohne Verbindungskabel zur Tastatur, mit Netzteil: 92,00 Euro Auslauftyp, Verkauf solange Vorrat reicht
MKE Frontplattensatz: 40.00 Euro

Bitte geben Sie Keyboard-Version an (2/3 oder 4/5 Oktaven), da die Tastatur-Steckverbinder hierfür unterschiedlich sind.

passende Kabelsätze:
Verbindungskabelsatz für Tastatur 4 oder 5 Oktaven (ca. 2x50cm, 16-polig)
Verbindungskabelsatz für Tastatur 2 oder 3 Oktaven (ca. 30cm, 20-polig)  (Auslauftyp, Verkauf solange Vorrat reicht)

passende Tastaturen:
2-Oktaven-Tastatur (TP/7, ungewichtet, dynamische Kontakte)
  nicht mehr lieferbar
3-Oktaven-Tastatur (TP/9, ungewichtet, dynamische Kontakte)
  nicht mehr lieferbar
4-Oktaven-Tastatur (TP/9, ungewichtet, dynamische Kontakte, ohne After-Touch)  nicht mehr lieferbar
5-Oktaven-Tastatur (TP/9, ungewichtet, dynamische Kontakte, ohne After-Touch)
5-Oktaven-Waterfall-Tastatur (TP/8O, Spezial-Tastatur für Orgeln, gewichtet, dynamische Kontakte, ohne After-Touch)
inverse 5-Oktaven-Waterfall-Tastatur (TP/8O, Spezial-Tastatur für Orgeln, gewichtet, dynamische Kontakte, ohne After-Touch)
  nicht mehr lieferbar

Die aktuell gültigen Preise für die Tastaturen und Kabelsätze finden Sie in der Preisliste im Abschnitt Ersatzteile.

Die aufgeführten Tastaturen verfügen über Anschlagdynamik, sind jedoch ohne After-Touch. Nähere Angaben zu den Tastaturen (Abmessungen etc.) finden Sie bei Zubehör und Ersatzteile.

Prices:

MKE complete package (MKE kit + front panel kit + keybed 61TP/8O + cable set + power supply 230V) Euro 300.00

MKE electronic kit, version for 4/5 octaves,
without keyboard, without keyboard cables, incl. 230V power supply within Europe: Euro 92.00
MKE electronic kit, version for 2/3 octaves, without keyboard, without keyboard cables, incl. 230V power supply within Europe: Euro 92.00 Running out - sale while stocks last !
MKE front panel kit: Euro 40.00

Please specify keyboard version (2/3 or 4/5 octaves) as the keyboard connectors are different.

suitable cable sets:
cable set for keyboard with 4 or 5 octaves ( ~ 2x50cm, 16 pins)
cable set for keyboard with 2 or 3 octaves (~ 30cm, 20 pins) Running out - sale while stocks last !

suitable keybeds:
2 octaves keyboard (TP/7, unweighted, dynamic bubble contacts)
  no longer available
3 octaves keyboard (TP/9, unweighted, dynamic bubble contacts)  no longer available
4 octaves keyboard (TP/9, unweighted, dynamic bubble contacts, without after touch)  no longer available
5 octaves keyboard (TP/9, unweighted, dynamic bubble contacts, without after touch)
5 octaves waterfall keyboard (TP/8O, special organ keyboard, weighted, dynamic bubble contacts, without after touch)
inverted 5 octaves waterfall keyboard (TP/8O, special organ keyboard, weighted, dynamic bubble contacts, without after touch)
  no longer available

The prices for keybeds and cable sets can be found in t
he price list in the section spare parts.

Details concerning the keyboards mentioned above are availabe at accessories page.

Zur näheren Information steht die Einbau- und Bedienungsanleitung als pdf-Datei zur Verfügung: MKE_Anleitung.pdf The user's guide is available as pdf file on our web site: MKE_manual.pdf
