Accessories and Spare Parts

foot switches foot controller power supply keybeds bass pedals modulation wheels joy sticks drawbars position sensor pressure sensor spring reverb

VFP2 double foot switch

about 1m cable length, stereo jack plug 1/4", 2 contacts closed at rest (suitable e.g. for LMK4+, LMK2+, PK88, or A-177)

dimensions:
overall: ~ 20 x 22 x 6 cm

The valid price can be found in the price list in the accessories section.


VFP1 single foot switch

same as VFP1, but only one switch,  about 1m cable length, mono jack plug 1/4", 1 contact closed at rest (suitable e.g. for d3m, CTM64, MKE or even for LMK4+, LMK2+, PK88 or A-177 if only one function is required)

dimensions:
overall: ~ ? x ? x ? cm

The valid price can be found in the price list in the accessories section.

No longer available




FP5 foot controller

about 1m cable length, Stereo jack plug 1/4", potentiometer 10k linear (suitable e.g. for LMK4+/2+ or A-177)

dimensions:
overall: ~  25 x 12 x 11 cm (down position) resp. 25 x 12 x 15 cm (up position)

angle of rotation:
20 degrees

Pin out of the stereo jack plug:
left (ccw) terminal of the potentiometer = GND terminal of the jack plug
middle terminal (wiper) of the potentiometers = ring of the jack plug
right (cw) terminal of the potentiometer = tip of the jack plug

Pay attention that not the full rotating angle of the potentiometer is covered but only about 50%. If the end terminals of the potentiometer are e.g. connected to GND and +5V only a voltange range 0...+2.5V is covered ! Of course the foot control inputs of our keyboards take this special behaviour into consideration but e.g. for DIY/OEM applications one has to pay attention to the limited rotating angle.

The valid price can be found in the price list in the accessories section.


External power supply 7V DC / 150mA

power supply, input: 230V AC / 50 Hz, European plug type, output: between 7V DC / min. 150 mA (or more), not stabilized / low voltage connector
suitable for all Doepfer devices with low voltage sockets except MAQ16/3, e.g. R2M, d3m, MCV4, MSY2 and all OEM/DIY products

The valid price can be found in the price list in the accessories section.


low voltage connection
bottom left: female socket (device), right: male plug (power supply)

External power supply 9-12V DC / 500mA

power supply, input: 230V AC / 50 Hz, European plug type, output: between 9 and 12V DC / min. 500 mA (or more), not stabilized, low voltage connector
suitable for all Doepfer devices with low voltage socket, e.g. MAQ16/3, R2M, d3m, Regelwerk, Drehbank, MCV4, Schaltwerk (only export version with low voltage power supply input) and all OEM/DIY products

The valid price can be found in the price list in the accessories section.


XLR connection
left: female plug (power supply), top right: male socket (keyboard)

External power supply 500mA (XLR version)

same as above but with  XLR female connector, suitable for d3c and our MIDI master keyboards (LMK4+, LMK2+, PK88)

The valid price can be found in the price list in the accessories section.


External power supply 9V AC / 500mA

power supply, input: 230V AC / 50 Hz, European plug type, output: 9V AC ! / min. 500 mA (or more), not stabilized / low voltage connector
suitable only for A-100MNT and A-100MC !

The valid price can be found in the price list in the accessories section.


External power supply 12V AC / 500mA

power supply, input: 230V AC / 50 Hz, European plug type, output: 12V AC ! / min. 500 mA (or more), not stabilized / low voltage connector
suitable only for Dark Energy, Dark Time and Dark Link !

The valid price can be found in the price list in the accessories section.

Spare Parts
Keybeds

All special parts used in our devices are available as spare parts.

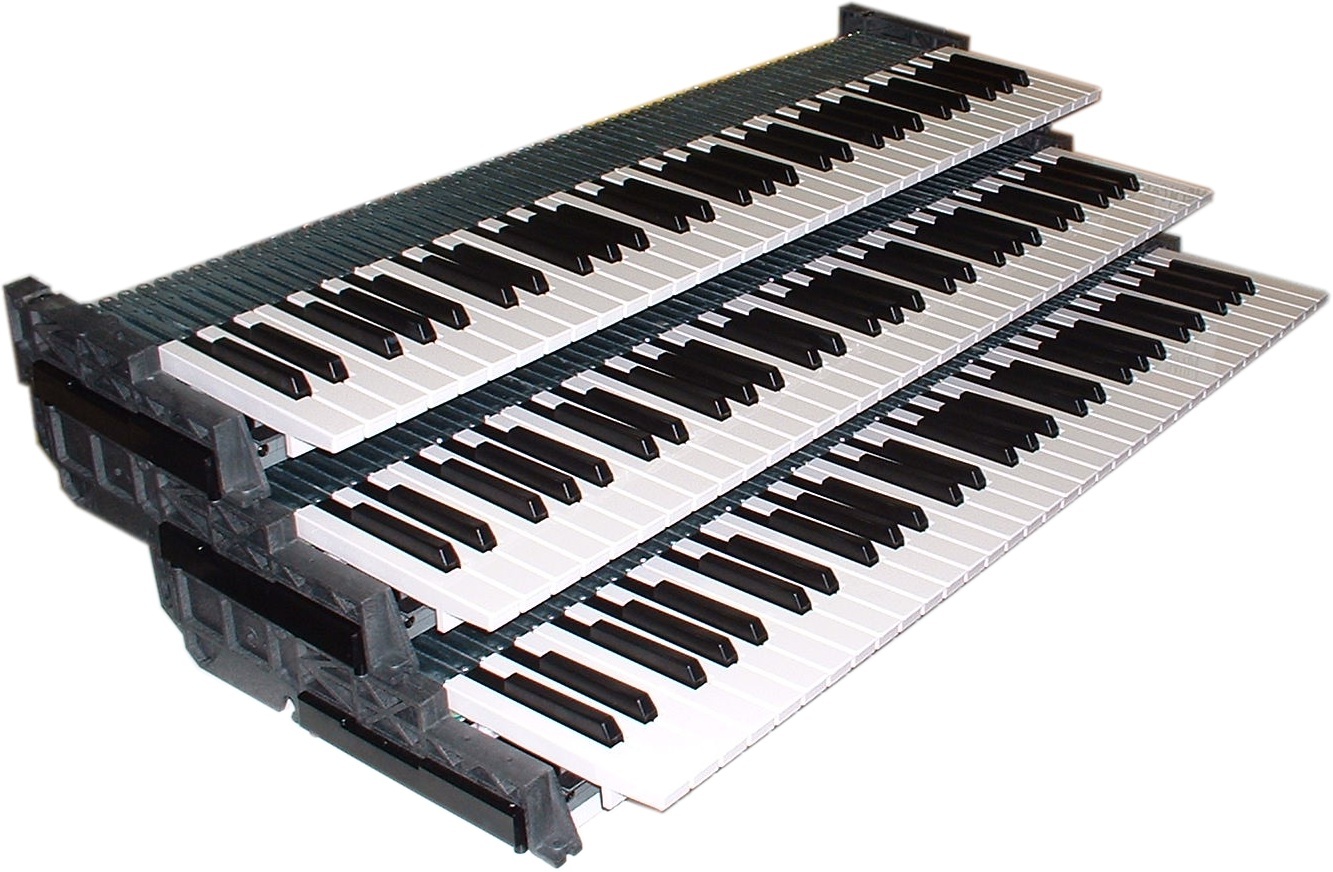

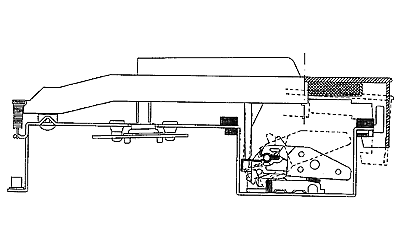

Manuals/Keyboards/Keybeds: All manuals used in our keyboards are available as spare parts (made by Fatar/Italy, www.fatar.com). The schematics of the contact boards of the manuals are available here: connecting keyboards to MKE. These manuals are available:

hammer action keyboard 88TP/40GH, 88 keys, graded hammer action (GH), with monophonic after touch sensor
measures in mm:  ~ 1226 length  x 231 depth x 84 height (measure from the bottom to the top edge of the black keys)
weight: ~  ? kg
schematics (diode matrix): Matrix_88.gif
dimensional drawings:
88TP40GH.pdf
TP40GH_Maße.pdf

hammer action keyboard 76TP/40GH, 76 keys, graded hammer action (GH), with monophonic after touch sensor
measures in mm:  ~ 1061 length  x 231 depth x 84 height (measure from the bottom to the top edge of the black keys)
weight: ~  ? kg
schematics (diode matrix): Matrix_76.gif
dimensional drawings:
TP40GH_Maße.pdf

No longer available


organ keyboard 61TP/8O, 61keys / 5 octaves, without after touch, sligthly weighted keys
measures in mm:  ~ 850 length  x 200 depth x 60 height (measure white keys) / 70 height (measure black keys)
weight: ~  3,5 kg
schematics (diode matrix): Matrix_61.gif
dimensional drawing: 61TP8O_drawing.pdf
synthesizer keyboard 25TP/7, 25 keys / 2 octaves, without after touch, unweighted keys
(after touch and weighted keys not available)
measures in mm: ~ 352 length  x 149 depth x 45 height (measure white keys) / 55 height (measure black keys)
weight: ~  0,5 kg
schematics (diode matrix): Matrix_25.gif
dimensional drawing:
25TP7_drawing.pdf

No longer available

synthesizer keyboard 37TP/9S, 37 keys / 3 octaves, without after touch, unweighted keys
(after touch and weighted keys upon request)
measures in mm: ~ 518 length  x 162 depth x 48 height (measure white keys) / 58 height (measure black keys)
weight: ~  1,2 kg
schematics (diode matrix): Matrix_37.gif
dimensional drawing:
37TP9_drawing.pdf

No longer available

synthesizer keyboard 49TP/9S, 49 keys / 4 octaves, without after touch, unweighted keys
(after touch and weighted keys not available)
measures in mm: ~ 684 length  x 162 depth x 48 height (measure white keys) / 58 height (measure black keys)
weight: ~  1,6 kg
schematics (diode matrix): Matrix_49.gif
dimensional drawing: 49TP9_drawing.pdf
synthesizer keyboard 61TP/9S, 61 keys / 5 octaves, without after touch, unweighted keys
(after touch and weighted keys not available)
measures in mm: ~ 850 length  x 162 depth x 48 height (measure white keys) / 58 height (measure black keys)
weight: ~  2 kg
schematics (diode matrix): Matrix_61.gif
dimensional drawing: 61TP9_drawing.pdf

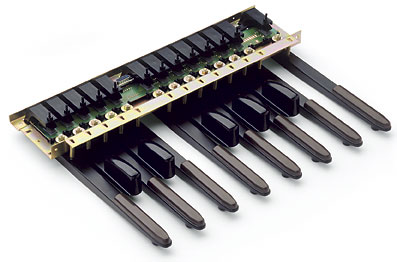

Bass pedal PD/3, 13 keys / one octave, non dynamic contacts (no velocity), plastic frame
suitable electronics: MBP25
overall dimensions (incl. frame and side angles left/right):
about 580 mm width x 380 mm depth x 95 mm height

distance between the brown keys: about 65 mm
distance between upper and lower key (C-C): about 450 mm
length of the brown keys (visible area): about 240 mm
length of the black keys (visible area): about 130 mm
weight: coming soon

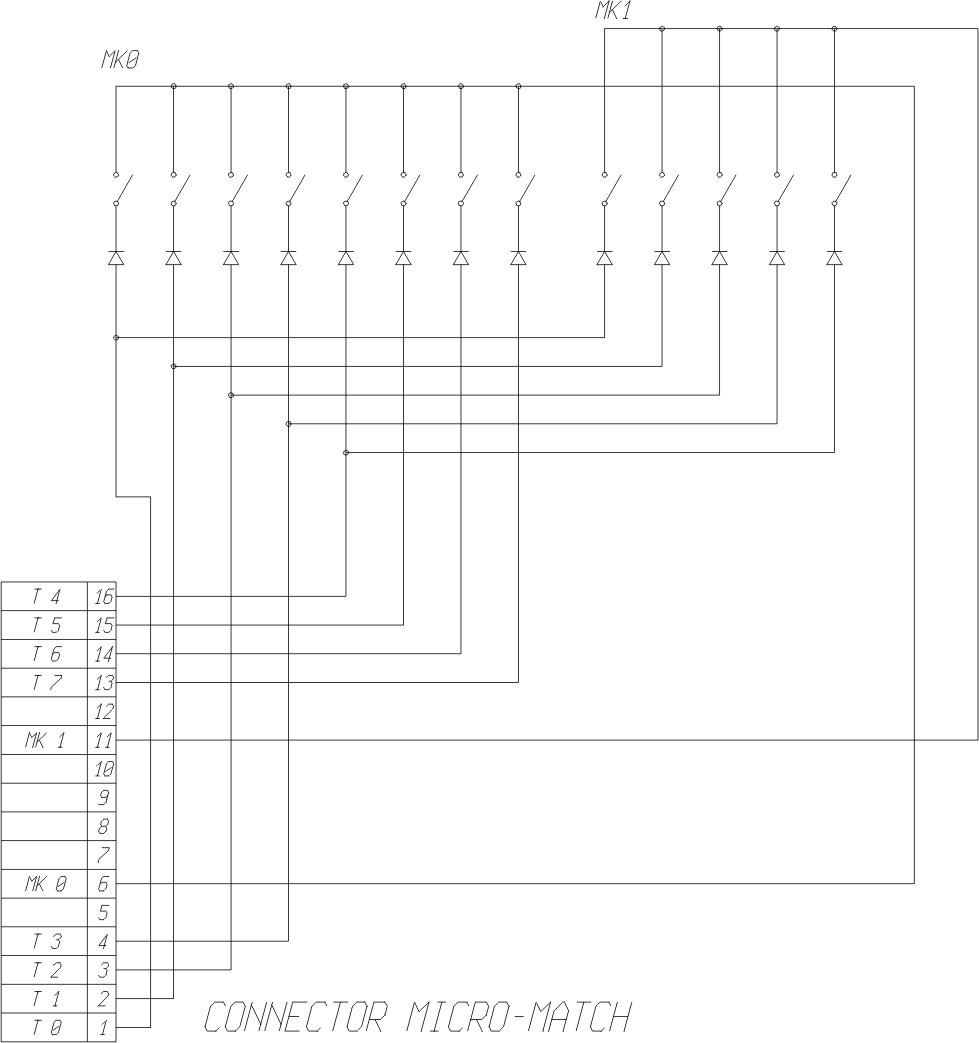

schematics (diode matrix): PD3_schema.gif
dimensional drawing: sorry, not available



PD/3



For all keyboards we have suitable cable sets available:

  • The cable set for 2/3 octaves consists of one 20 pin ribbon cable with with suitable male connectors on both ends (20 pins AMP Micromatch).
  • The cable set for 4/5 octaves consists of two 16 pin ribbon cables with with suitable male connectors on both ends (16 pins AMP Micromatch)
  • The cable set for 88 keys consists of two 20 pin ribbon cables with with suitable male connectors on both ends (20 pins AMP Micromatch).

 The length of the cables is about 30 cm. Longer cables are available upon request. But we do not guarantee a flawless function of cables longer than about 50 cm.

The valid prices can be found in the price list in the accessories section.


Keyboard accessories

Modulation Wheel kit: contains a special rotary potentiometer (10k linear) with nut and washer, the modulation wheel made of black plastic, a mouting angle, rubber buffer (for a soft touch of the wheel against the angle) and a fetch-back spring that can be used (e.g. for pitch band) or not (e.g. for modulation or volume control). Available as kit only and has to be assembled by the user.

dimensions:
overall: ~ 67 x 33 x 63 mm (mounting angle, wheel and potentiometer)
only the mounting angle: ~ 53 x 20 x 40 mm (without wheel and potentiometer)
diameter of the wheel: ~ 67 mm
width of the wheel: ~ 10 mm
distance of the mounting holes of the mounting angle: ~ 32 mm

Technical remarks: Pay attention that not the full rotating angle of the potentiometer is covered but only about 40%. If the end terminals of the potentiometer are e.g. connected to GND and +5V only a voltange range 0...+1.6V is covered !  Especially for DIY/OEM applications one has to pay attention to the limited rotating angle. The electronics of our keyboards (LMK2+, LMK4+) and the DIY/OEM electronics MKE and Wheel Electronic take into consideration this special quality.

The modulation wheel can be combined with these electronics: Wheel Electronic, LMK2+, LMK4+, MKE

Here you find the construction notes for the modulation wheel kit: Modulation_Wheel_kit.pdf

The valid price can be found in the price list in the accessories section.


Modulation Wheel Set: contains a special rotary potentiometer (10k linear) with nut and washer, the modulation wheel made of black plastic, a mouting angle, rubber buffer (for a soft touch of the wheel against the angle) and a fetch-back spring that can be used (e.g. for pitch band) or not (e.g. for modulation or volume control). Available as kit only and has to be assembled by the user.

dimensions:
overall: ~ 89 x 76 x 64 mm (including wheels)
only the black box: ~  89 x 76 x 45 mm (without wheels)
diameter of the wheels: ~ 67 mm
width of the wheel: ~ 15 mm
grid of the mounting holes:  ~  72 x 61 mm

Technical remarks: Pay attention that not the full rotating angle of the potentiometer is covered but only about 40%. If the end terminals of the potentiometer are e.g. connected to GND and +5V only a voltange range 0...+1.6V is covered ! In addition the two potentiometers work in the opposite direction as one is mounted from the left and the other from right side to the wheel ! Especially for DIY/OEM applications one has to pay attention to these special features. So far the modulation wheel set is not used in any of our products. In particular it cannot be used in combination with the electronics of LMK2+, LMK4+ and the DIY/OEM electronics MKE. But the modulation wheel set can be combined with Wheel Electronic.

The valid price can be found in the price list in the accessories section.

No longer available

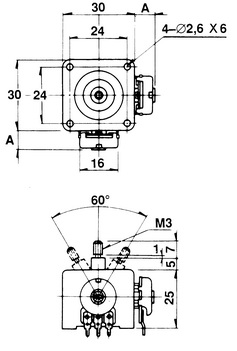

Joy Stick I: same as used in the A-174 module (2 x 20k linear, from February 2012 new value: 2 x 10k linear). The axis is equipped with a M3 thread that can be used to screw a suitable lever with M3 thread to the axis.

dimensions:
overall: ~ 41 x 41 x 36 mm (including lever and potentiometers)
only the black box: ~ 30 x 30 x 25 mm (without lever and potentiometers)
grid of the mounting holes:  ~  24 x 24 mm

manufacturer: ALPS

The joy stick potentiometers cover the complete rotation angle. If the end terminals of the potentiometers are e.g. connected to GND and +5V the full voltange range 0...+5V is covered !

The joy stick is spring-loaded, i.e. the lever returns back to the neutral position as soon as it is released. If the spring is removed for one or both directions (e.g. by means of a side cutter) the joy stick is no longer spring-loaded for this direction(s). But as the spring has to be destroyed during the removal this cannot be re-established !

The valid price can be found in the price list in the accessories section.

Joy stick I can be combined e.g. with Wheel Electronic or Pocket Electronic.

The picture shows the joy stick with the additionally available aluminium lever. The aluminium lever is not included but has to be ordered separately (additional price).

No longer available


Joy-Stick II: This is another type of joy-stick with two 10k linear potentiometers. The joy-stick is equipped with a 4 pin cable and a 4 pin female connector (1/10" pitch). The end-terminals of the two potentiometers are connected (consequently only a 4 pin cable is required). If the wires are nipped off the connection between the potentiometers can be interrupted.

dimensions:
overall: ~ 72 x 60 x 66 mm (including lever and potentiometers)
diameter of the inner ball: ~ 50 mm
length of the lever (measured from the ball surface):  ~ 17 mm
cross section of the lever:  ~ 6 x 6 mm
grid of the mounting holes:  ~  42 x 48 mm

manufacturer: Fatar

Technical remarks: Pay attention that not the full rotating angle of the potentiometers is covered but only about 40%. If the end terminals of the potentiometer are e.g. connected to GND and +5V only a voltange range of about +1.5 ... 3.5 V is covered (a bit different for different specimens) ! So far we have no Midi electronics available that can be used in combination with joy stick II. The joy stick is spring-loaded, i.e. the lever returns back to the neutral position as soon as it is released. One of the spring can be removed very easily by nipping the spring with a side cutting pliers. The second spring is hidden inside the joy stick.

running out sale while stocks last


Drawbars and drawbar knobs

special fader potentiometer as used in d3c, especially for organ applications, resistance: 47kOhm linear, 16 grids (17 positions), black lever, labelled "1" ... "8" in white color, dimensions: about 146 mm (lenght) x 12.5 mm (width) x 10 mm (height without solder pins) / 18 mm (height incl. solder pins).
no longer available

We offer suitable knobs too. They are available only as a complete set with 20 knobs (same as the historical model):

Quantity Inscription Knob color Remark
2 1'  white one for upper manual, one for lower manual
2 2'  white one for upper manual, one for lower manual
2 4'  white one for upper manual, one for lower manual
2 8'  white one for upper manual, one for lower manual
2 1 1/3'  black one for upper manual, one for lower manual
2 1 3/5'  black one for upper manual, one for lower manual
2 2 2/3'  black one for upper manual, one for lower manual
2 5 1/3'  brown one for upper manual, one for lower manual
3 16'  brown one for upper manual, one for lower manual, one for bass pedal
1 8'  brown one for bass pedal

Single drawbar knobs are not available but only as the knob set specified above. The knob set is available only in this combination of knobs !

The valid prices can be found in the price list in the accessories section.

Discontinued ! Sale while stock lasts (valid only for the knob set, the drawbars are no longer available)!


Other accessories

Position Sensor: Same as used in R2M resp. A-198. A linear position sensor from the industrial sector. Measures: about 575 x 22 x 0.5 mm. Usable length about 50 cm. Works like a normal fader potentiometer but the wiper is lifted off as long as the sensor is not touched. As soon as the sensor is touched the wiper is connected to the resistance track and can now be treated like a normal linear potentiometer. The sensor has a self-adhesive base and a 3 pin connector (same functions as a potentiometer). The resistance of the sensor is about 12,5 kOhm (+/- 20%). The position sensor cannot be shortened and is available only in this length. Changing the production for another length would cause high costs as new tools would be necessary. For measures beyond 50 cm even new machines would we required that are able to process larger workpieces.

The valid price can be found in the price list in the accessories section.


Pressure Sensor (new version): Same as used in the new versions of R2M resp. A-198. A pressure position sensor from the industrial sector. Measures: about 610 x 15 x 0,35 mm. Usable length about 60 cm.  It has a self-adhesive base and a 2 pin connector. The sensor reduces it's resistance while the pressure increases: from more than 1MOhm without pressure to about 1-2 kOhm at moderate pressure and down to a few hundret Ohm at high pressure, but the high pressure range is not meaningful for musical applications. The pressure sensor can be cutted off to any length.

The valid price can be found in the price list in the accessories section.


Pressure Sensor (old version): Same as used in the old versions of R2M resp. A-198. A conductive rubber (about 245 x 13 x 1 mm) that reduces it's resistance while the pressure increases. The rubber can be assembled between two conducting surfaces (e.g. pc boards) to measure the variable resistance. For the complete length of the R2M resp. A-198 manual 2-3 of these sensors are required.

The valid price can be found in the price list in the accessories section.


Spring reverb system: The system is made of three separate springs with transmitter and receiver to obtain a very "dense" reverb sound. The system has an additional spring suspension to avoid undesired sounds caused by (small) bounces against the case. Connections via standard cinch/RCA female connectors. The system is used in the spring reverb module A-199.

dimensions: about 180 x 51 x 33 mm
spring length: about 80 mm
input resistance: typ. 190 Ohm
output resistance: typ. 2500 Ohm

The valid price can be found in the price list in the accessories section.


In addition all rotary or fader potentiometers (used in A-100, Drehbank, Pocket-Control, Pocket-Fader, Regelwerk, MAQ16/3 ...), rotary encoders, rotary and fader knobs, momentary buttons, toggle switches, 3.5mm jack sockets and so on are available as spare parts. But we are not an electronic shop and have available only the parts used in our products.
