Abgleichhinweise A-111 / Adjustment prodedure A-111

Der Abgleich des A-111 ist sehr ähnlich zu dem des Standard-VCO A-110, der im A-110 Service-Manual beschrieben ist.  Der beim A-110 erforderliche Temperaturabgleich entfällt jedoch beim A-111, da hier der Spezial-IC CEM3340 verwendet wird. Die Trimmpotentiometer haben jedoch beim A-110 und A-111 unterschiedliche Bauteil-Bezeichnungen:

Funktion A-110 A-111
VCO scale P7 P9
VCO high end trim P8 P8
VCO offset P6 P7
Range adjust (Oktavschalter)  P5 P10

The adjustment procedure for the A-111 is nearly identical to the standard VCO A-110 that is described in the A-110 Service-Manual on our web site. The A-110 temperature adjustment is not applicable for the A-111 due to the special circuit CEM3340. But the trimming potentiometers have different names for A-110 and A-111:

Function A-110 A-111
VCO scale P7 P9
VCO high end trim P8 P8
VCO offset P6 P7
Range adjust (octave switch)  P5 P10

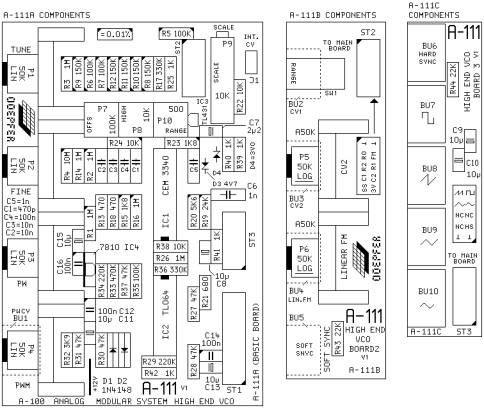

Bestückungsplan A-111 / Components overlay A-111
